Parameter Description

MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0

The actual active command data set (CDS) is displayed in parameter r0050.

r0055

Bit15

r0054

Bit15

1. CDS

2. CDS

3. CDS

r0050

1
2

selected

CDS

active

CDS

Common Settings:

722.0 = Digital input 1 (requires P0701 to be set to 99, BICO)
722.1 = Digital input 2 (requires P0702 to be set to 99, BICO)
722.2 = Digital input 3 (requires P0703 to be set to 99, BICO)
722.3 = Digital input 4 (requires P0704 to be set to 99, BICO)
722.4 = Digital input 5 (requires P0705 to be set to 99, BICO)
722.5 = Digital input 6 (requires P0706 to be set to 99, BICO)
722.6 = Digital input 7 (via analog input 1, requires P0707 to be set to 99)
722.7 = Digital input 8 (via analog input 2, requires P0708 to be set to 99)

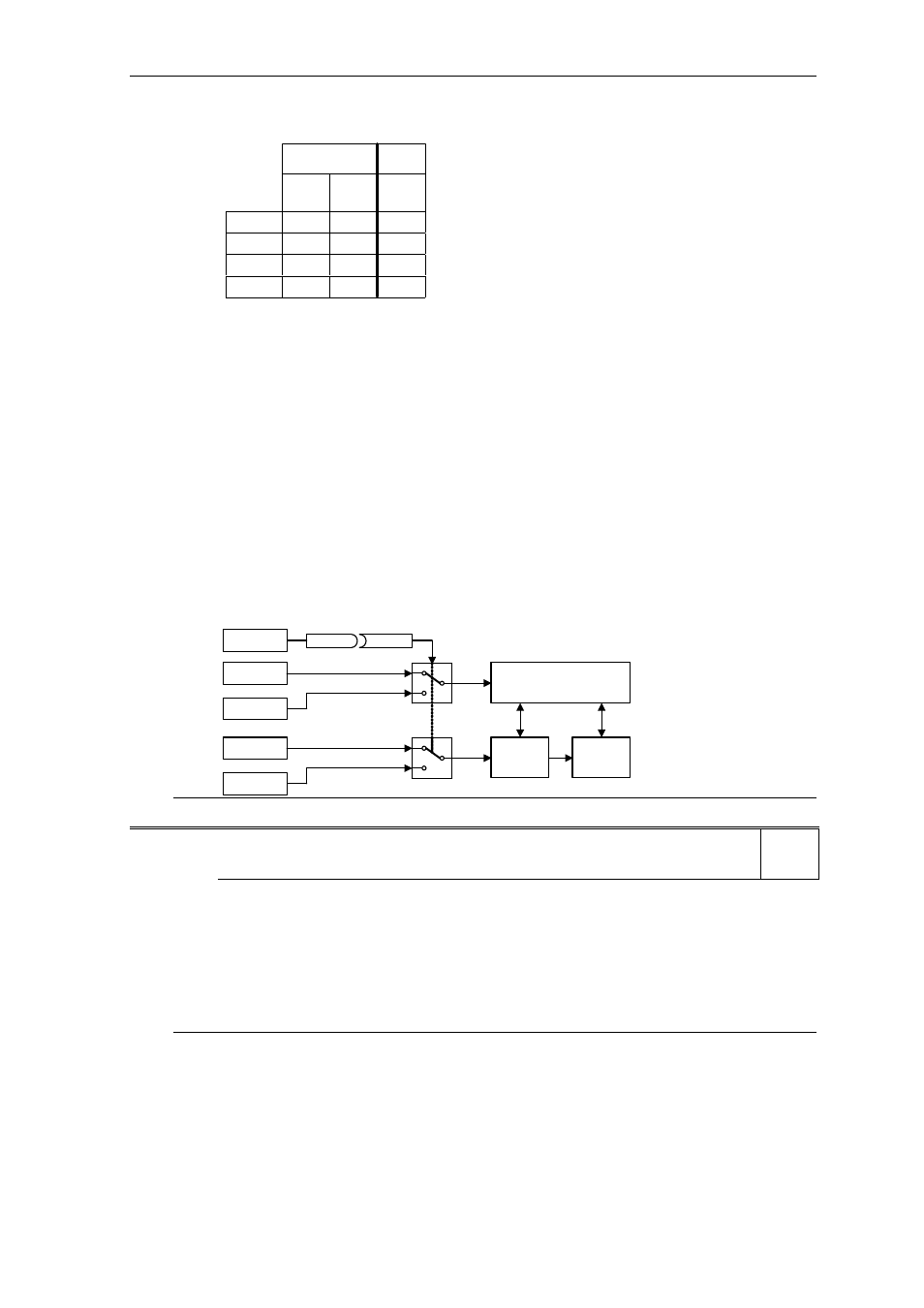

Example:

Typical procedure for CDS switch-over:
-

CDS1: Command source via terminal and setpoint source via analog input (ADC)

CDS2: Command source via BOP and setpoint source via MOP

CDS switch-over takes place via digital input 4 (DIN 4)

Steps:
1. Perform commissioning with CDS1 parameters (P0700[0] = 2 and P1000[0] = 2)
2. Connect P0810 (P0811 if necessary) with the source of CDS switch-over (P0704[0] = 99, P0810 =

722.3)

3. Copy CDS1 to CDS2 (P0809[0] = 0, P0809[1] = 1, P0809[2] = 2)
4. Change CDS2 parameter as required (set parameters for CDS2 [P0700=1 and P1000=1])

DIN4

Terminals

Sequence control

BOP

P0700[0] = 2

P0700[1] = 1

P0810 = 722.3

ADC

Setpoint

channel

MOP

P1000[0] = 2

P1000[1] = 1

Motor

control

Note:

P0811 is also relevant for command data set (CDS) set selection.

P0811

BI: CDS bit 1

Min: 0:0

CStat:

CUT

Datatype: U32 Unit:

Def:

0:0

P-Group: COMMANDS

Active: first confirm

QuickComm.: No

Max: 4095:0

Selects command source from which to read Bit 1 for selecting a command data set (see P0810).

Common Settings:

Note:

P0810 is also relevant for command data set (CDS) selection.
