Parameter Description Issue 01/06
MICROMASTER 440 Parameter List
200 6SE6400-5BB00-0BP0
r2018[8] CO: PZD from COM link (USS) Min: -
Datatype: U16 Unit: - Def: -
P-Group: COMM Max: -
Displays process data received via USS on COM link.
.
.
. r2037
r2036 [0]
r2018
[1]
[2]
[3]
[7]
STX
LGE
ADR Start of text
Length
Address
PKW
PZD
BCC Parameter ID value
Process data
Block check character

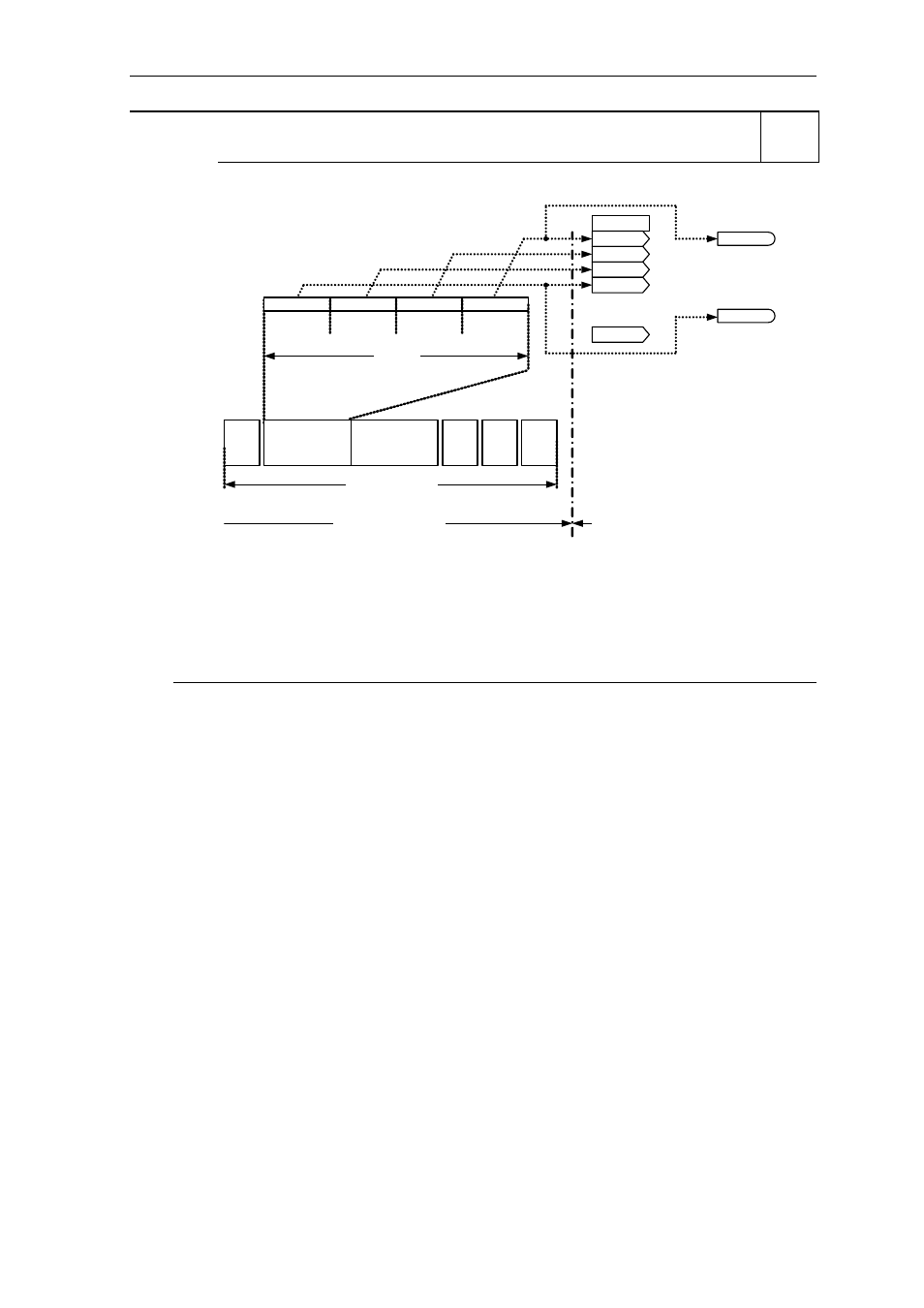

PZD mapping to parameter r2018
STW
HSW
Control word
Main setpoint
USS on COM link
PZD1
STW1
PZD2
HSW
PZD3 PZD4
STW2
P2012
USS telegram
STX LGE ADR BCC
PKW PZD
Process data Parameter
Index:
r2018[0] : Received word 0
r2018[1] : Received word 1
r2018[2] : Received word 2
r2018[3] : Received word 3
r2018[4] : Received word 4
r2018[5] : Received word 5
r2018[6] : Received word 6
r2018[7] : Received word 7
Note:
The control words can be viewed as bit parameters r2036 and r2037.
Restrictions:
-
If the above serial interface controls the inverter (P0700 or P0719) then the 1st control word must be
transferred in the 1st PZD-word.
- If the setpoint source is selected via P1000 or P0719, then the main setpoint must be transfered in the
2nd PZD-word,
- When P2012 is greater than or equal to 4 the additional control word (2nd control word) must
transferred in the 4th PZD-word, if the above serial interface controls the inverter (P0700 or P0719).
Level
3
