Siemens 440 - Manual (Page 255)

Issue 01/06 Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
255
P2879[2] CI: MUL 2 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 755:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
Define inputs of Multiplier 2, result is in P2880.
Index:
P2879[0] : Connector input 0 (CI 0)
P2879[1] : Connector input 1 (CI 1)
Dependency:
P2802[9] is active level for the Multiplier.
r2880 CO: MUL 2 Min: -
Datatype: Float Unit: % Def: -
P-Group: TECH Max: -
Result of Multiplier 2.
Dependency:
P2802[9] is active level for the Multiplier.

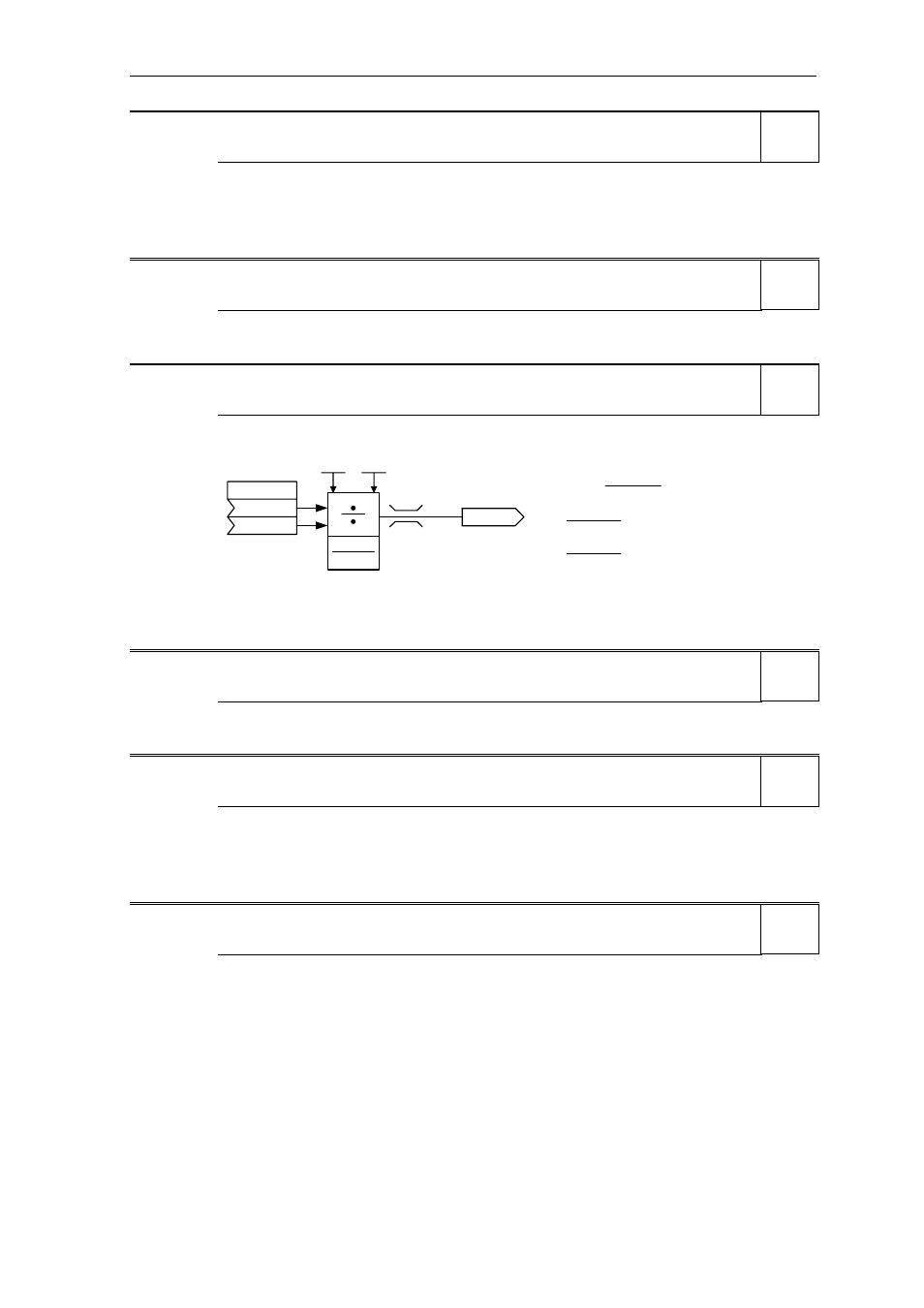

P2881[2] CI: DIV 1 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 755:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
Define inputs of Divider 1, result is in P2882.
r2882
x
1
x
2
200%
-200%
2 X
% 100 1 x ∗
x2
100% x1 ∗
P2800 P2802[10]
> 200% →
< -
200%
→
x2
100% x1
x2
100% x1
∗
∗
Result = 200%
Result = -200%
If:
P2881
Index 1
Index 0
Result =
Result
Index:
P2881[0] : Connector input 0 (CI 0)
P2881[1] : Connector input 1 (CI 1)
Dependency:
P2802[10] is active level for the Divider.
r2882 CO: DIV 1 Min: -
Datatype: Float Unit: % Def: -
P-Group: TECH Max: -
Result of Divider 1.
Dependency:
P2802[10] is active level for the Divider.
P2883[2] CI: DIV 2 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 755:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
Define inputs of Divider 2, result is in P2884.
Index:
P2883[0] : Connector input 0 (CI 0)
P2883[1] : Connector input 1 (CI 1)
Dependency:
P2802[11] is active level for the Divider.
r2884 CO: DIV 2 Min: -
Datatype: Float Unit: % Def: -
P-Group: TECH Max: -
Result of Divider 2.
Dependency:
P2802[11] is active level for the Divider.
Level
3
Level
3
Level
3
Level
3
Level
3
Level
3
