Issue 01/06 Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
253
P2866 Mode timer 4 Min: 0
CStat: CUT Datatype: U16 Unit: - Def: 0
P-Group: TECH Active: first confirm QuickComm.: No Max: 13
Selects mode of timer 4. P2864, P2865, P2866 are the inputs of the timer, outputs are P2867, P2868.
Possible Settings:
0 ON delay (seconds)
1 OFF delay (seconds)
2 ON/OFF delay (seconds)
3 Pulse generator (seconds)
10 ON delay (minutes)
11 OFF
delay (minutes)
12 ON/OFF delay (minutes)
13 Pulse generator (minutes)
Dependency:
P2802[3] is active level for the timer.
r2867 BO: Timer 4 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Displays output of timer 4. P2864, P2865, P2866 are the inputs of the timer, outputs are P2867, P2868.
Dependency:
P2802[3] is active level for the timer.
r2868 BO: Nout timer 4 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Displays Not-output of timer 4. P2864, P2865, P2866 are the inputs of the timer, outputs are P2867, P2868.
Dependency:
P2802[3] is active level for the timer.
P2869[2] CI: ADD 1 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 755:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0

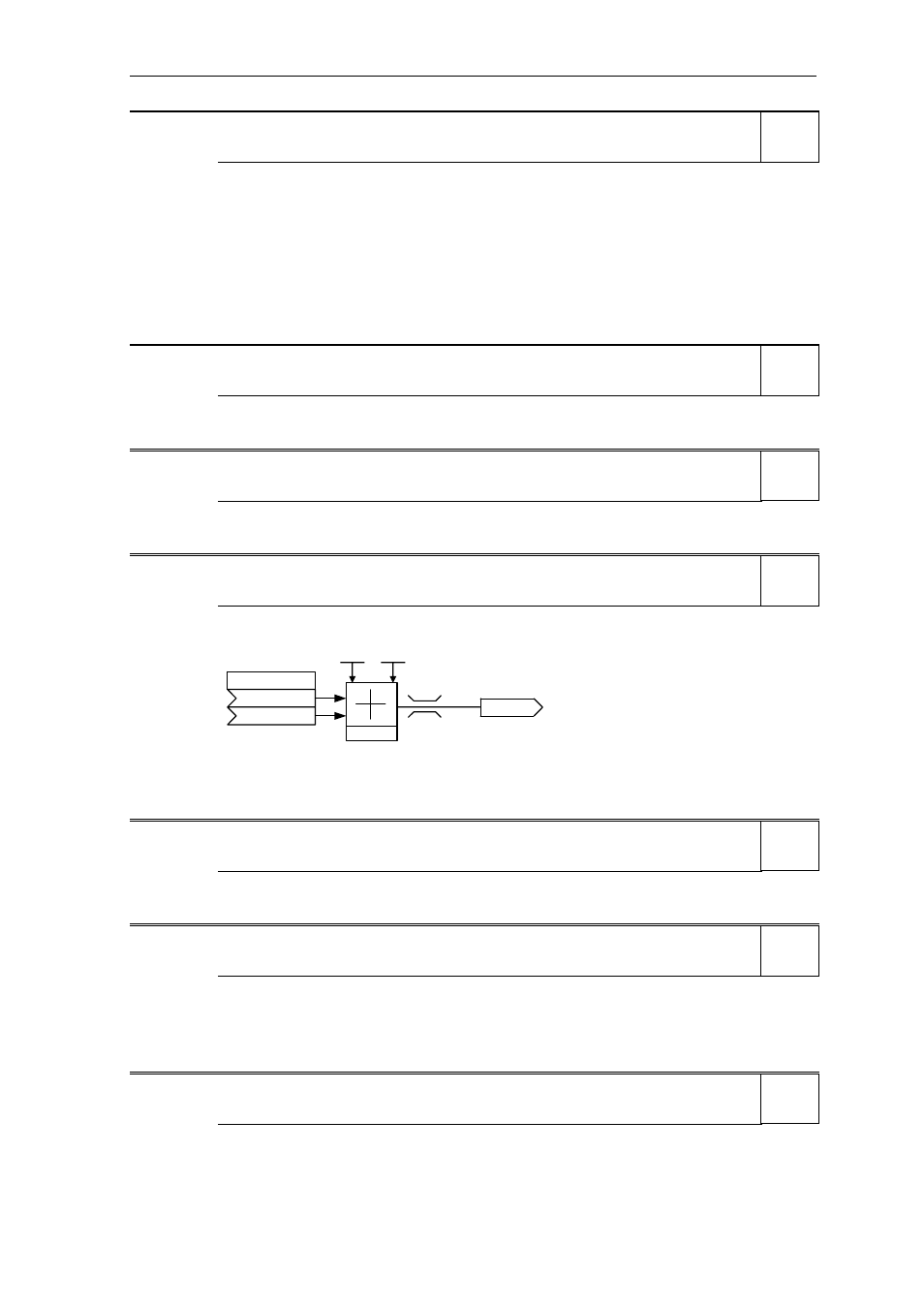

Define inputs of Adder 1, result is in P2870.
r2870
x
1
x
2
200%
-200%
P2800 P2802[4]
Result = x1 + x2
If:
x1 + x2 >
200%
→
x1 + x2 < -200% →
Result = 200%
Result = -200%
Result
P2869
x1 + x2
Index 0
Index 1
Index:
P2869[0] : Connector input 0 (CI 0)
P2869[1] : Connector input 1 (CI 1)
Dependency:
P2802[4] is the active level for the Adder.
r2870 CO: ADD 1 Min: -
Datatype: Float Unit: % Def: -
P-Group: TECH Max: -
Result of Adder 1.
Dependency:
P2802[4] is active level for the Adder.
P2871[2] CI: ADD 2 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 755:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
Define inputs of Adder 2, result is in P2872.
Index:
P2871[0] : Connector input 0 (CI 0)
P2871[1] : Connector input 1 (CI 1)
Dependency:
P2802[5] is active level for the Adder.
r2872 CO: ADD 2 Min: -
Datatype: Float Unit: % Def: -
P-Group: TECH Max: -
Result of Adder 2.
Dependency:
P2802[5] is active level for the Adder.
Level
3
Level
3
Level
3
Level
3
Level
3
Level
3
Level
3
