Siemens 440 - Manual (Page 246)

Parameter Description Issue 01/06
MICROMASTER 440 Parameter List
246 6SE6400-5BB00-0BP0
P2828 BI: NOT 1 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0

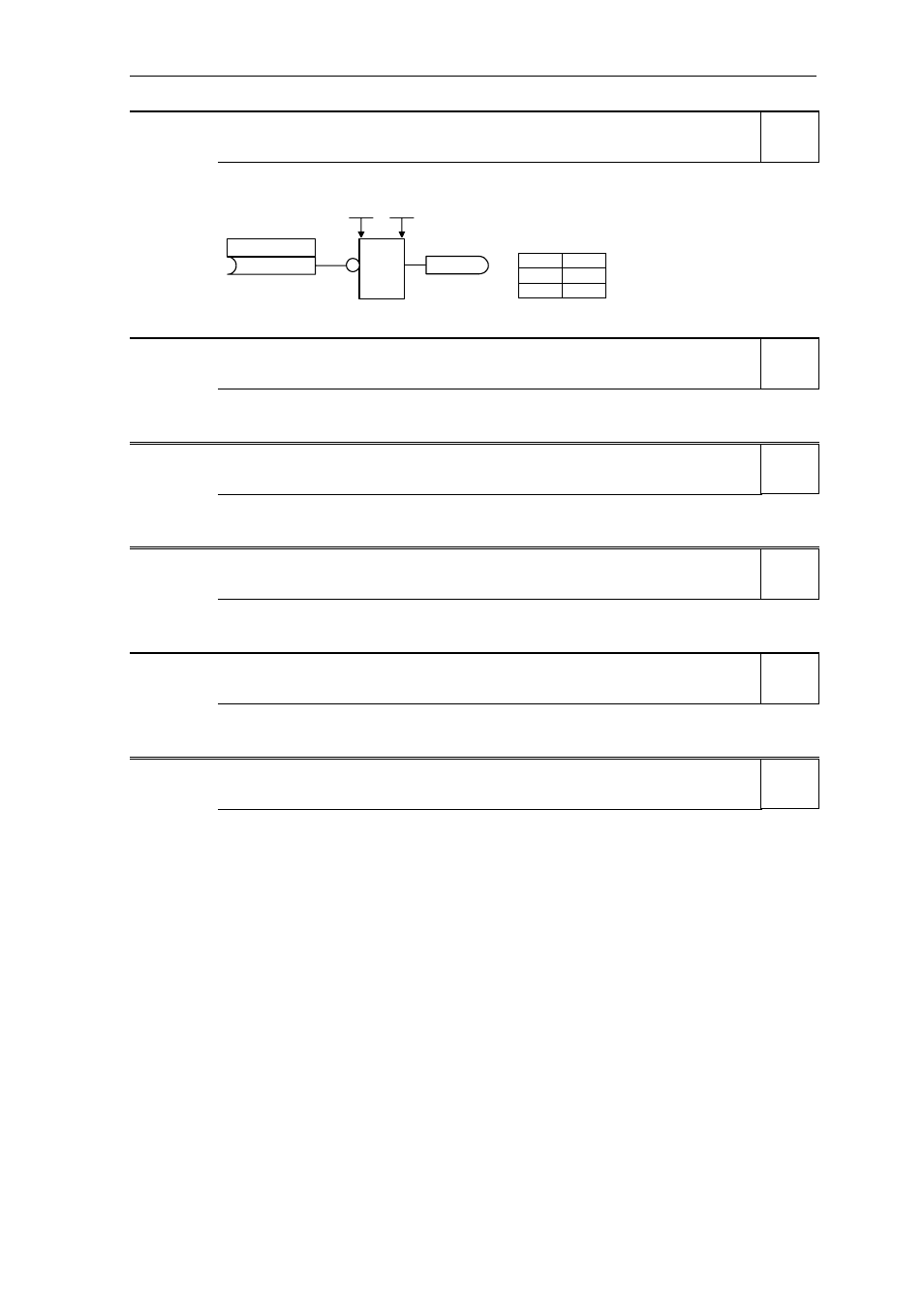

P2828 defines input of NOT 1 element, output is P2829.
P2828
r2829
1 C A
A C
0 1
1 0
P2800 P2801[9]
Index0
Dependency:
P2801[9] is active level for the NOT element.
r2829 BO: NOT 1 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Output of NOT 1 element. Displays not logic of bit defined in P2828.
Dependency:
P2801[9] is active level for the NOT element.
P2830 BI: NOT 2 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
P2830 defines input of NOT 2 element, output is P2831.
Dependency:
P2801[10] is active level for the NOT element.
r2831 BO: NOT 2 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Output of NOT 2 element. Displays not logic of bit defined in P2830.
Dependency:
P2801[10] is active level for the NOT element.
P2832 BI: NOT 3 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
P2832 defines input of NOT 3 element, output is P2833.
Dependency:
P2801[11] is active level for the NOT element.
r2833 BO: NOT 3 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Output of NOT 3 element. Displays not logic of bit defined in P2832.
Dependency:
P2801[11] is active level for the NOT element.
Level
3
Level
3
Level
3
Level
3
Level
3
Level
3
