Issue 01/06 Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
245
P2822[2] BI: XOR 1 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0

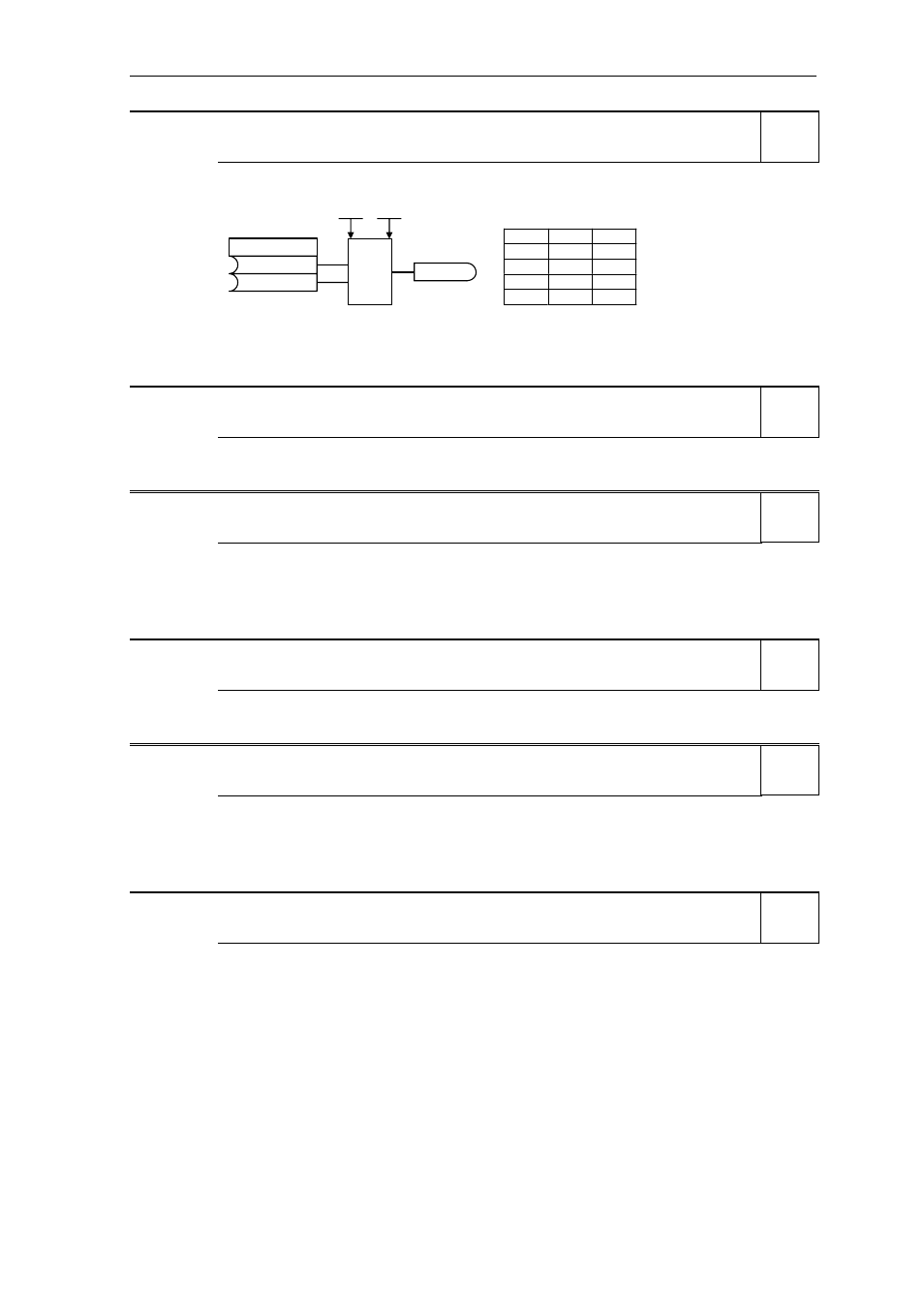

P2822[0], P2822[1] define inputs of XOR 1 element, output is P2823.
A
B
C
P2822
r2823
A B C
0 0 0
0 1 1
1 0 1
1 1 0
1
=
P2800 P2801[6]
Index0
Index1
Index:
P2822[0] : Binector input 0 (BI 0)
P2822[1] : Binector input 1 (BI 1)
Dependency:
P2801[6] is active level for the XOR element.
r2823 BO: XOR 1 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Output of XOR 1 element. Displays exclusive-or logic of bits defined in P2822[0], P2822[1].
Dependency:
P2801[6] is active level for the XOR element.
P2824[2] BI: XOR 2 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
P2824[0], P2824[1] define inputs of XOR 2 element, output is P2825.
Index:
P2824[0] : Binector input 0 (BI 0)
P2824[1] : Binector input 1 (BI 1)
Dependency:
P2801[7] is active level for the XOR element.
r2825 BO: XOR 2 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Output of XOR 2 element. Displays exclusive-or logic of bits defined in P2824[0], P2824[1].
Dependency:
P2801[7] is active level for the XOR element.
P2826[2] BI: XOR 3 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
P2826[0], P2826[1] define inputs of XOR 3 element, output is P2827.
Index:
P2826[0] : Binector input 0 (BI 0)
P2826[1] : Binector input 1 (BI 1)
Dependency:
P2801[8] is active level for the XOR element.
r2827 BO: XOR 3 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Output of XOR 3 element. Displays exclusive-or logic of bits defined in P2826[0], P2826[1].
Dependency:
P2801[8] is active level for the XOR element.
Level
3
Level
3
Level
3
Level
3
Level
3
Level
3
