Parameter Description Issue 01/06
MICROMASTER 440 Parameter List
256 6SE6400-5BB00-0BP0
P2885[2] CI: CMP 1 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 755:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0

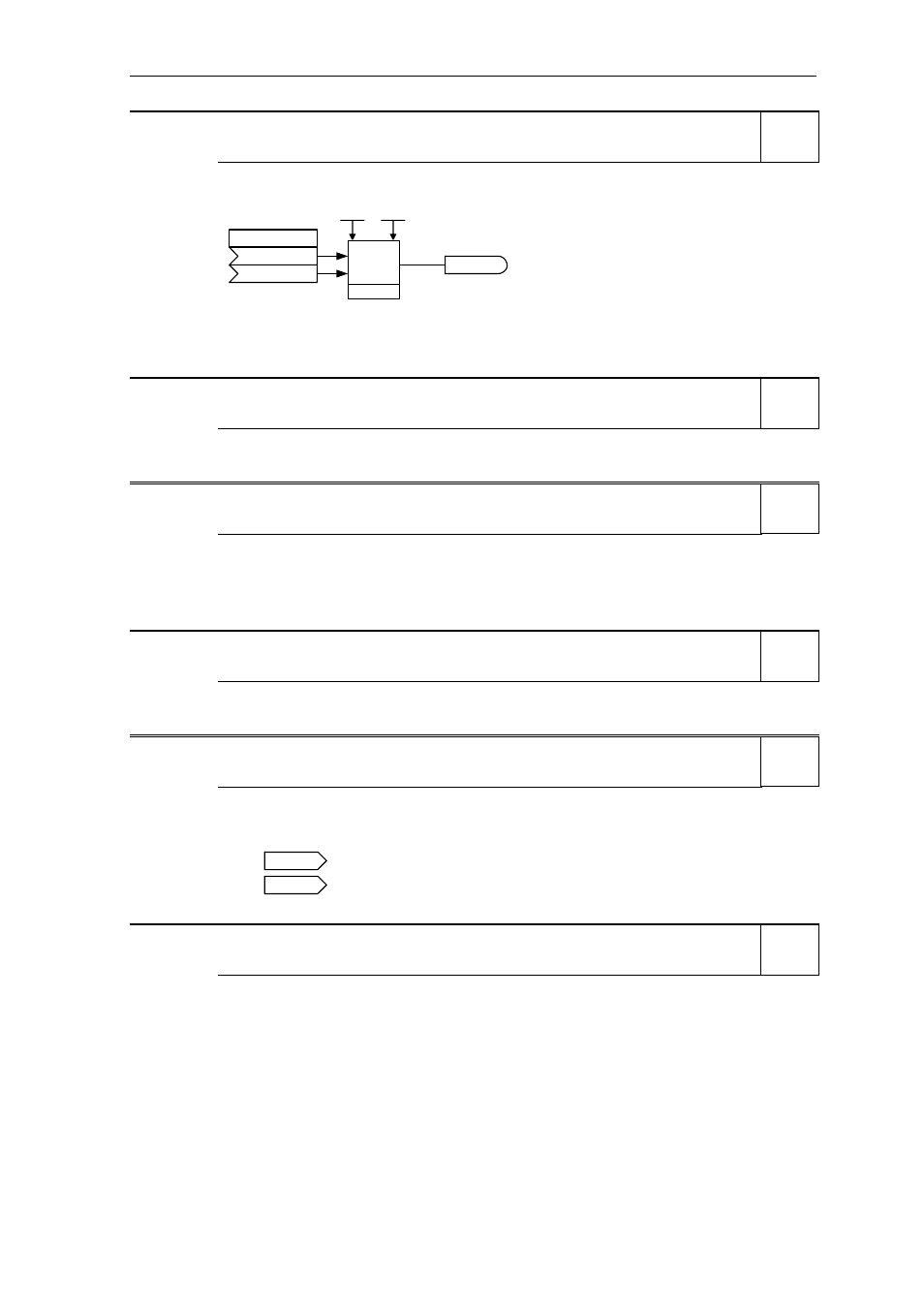

Defines inputs of Comparator 1, output is P2886.
P2885
r2886
x
1
x
2
Out x1 ≥ x2 → Out = 1
x1 < x2 → Out = 0
P2800 P2802[12]
Out = x1 ≥ x2
CMP
Index 0
Index 1
Index:
P2885[0] : Connector input 0 (CI 0)
P2885[1] : Connector input 1 (CI 1)
Dependency:
P2802[12] is active level for the Comparator.
r2886 BO: CMP 1 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Displays result bit of Comparator 1.
Dependency:
P2802[12] is active level for the Comparator.
P2887[2] CI: CMP 2 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 755:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
Defines inputs of Comparator 2, output is P2888.
Index:
P2887[0] : Connector input 0 (CI 0)
P2887[1] : Connector input 1 (CI 1)
Dependency:
P2802[13] is active level for the Comparator.
r2888 BO: CMP 2 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Displays result bit of Comparator 2.
Dependency:
P2802[13] is active level for the Comparator.
P2889 CO: Fixed setpoint 1 in [%] Min: -200.00
CStat: CUT Datatype: Float Unit: % Def: 0.00
P-Group: TECH Active: first confirm QuickComm.: No Max: 200.00
Fixed percent setting 1.
P2889
P2890
Connector Setting in %
Range : -200% ... 200%
P2890 CO: Fixed setpoint 2 in [%] Min: -200.00
CStat: CUT Datatype: Float Unit: % Def: 0.00
P-Group: TECH Active: first confirm QuickComm.: No Max: 200.00
Fixed percent setting 2.
Level
3
Level
3
Level
3
Level
3
Level
3
Level
3
