Issue 01/06 Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
185
P1755[3] Start-freq. motor model (SLVC) Min: 0.1
CStat: CUT Datatype: Float Unit: Hz Def: 5.0
P-Group: CONTROL Active: Immediately QuickComm.: No Max: 250.0
Enter the start frequency of sensorless vector control (SLVC), thereby SLVC switches over from open-loop
to closed-loop at that frequency.
The default setting depends on the motor power:
-
0 kW to 0.749 kW: 5.0 Hz
- 0.75 kW to 75 kW: 1.5 Hz
- 75.1 kW to 200 kW: 1.0 Hz

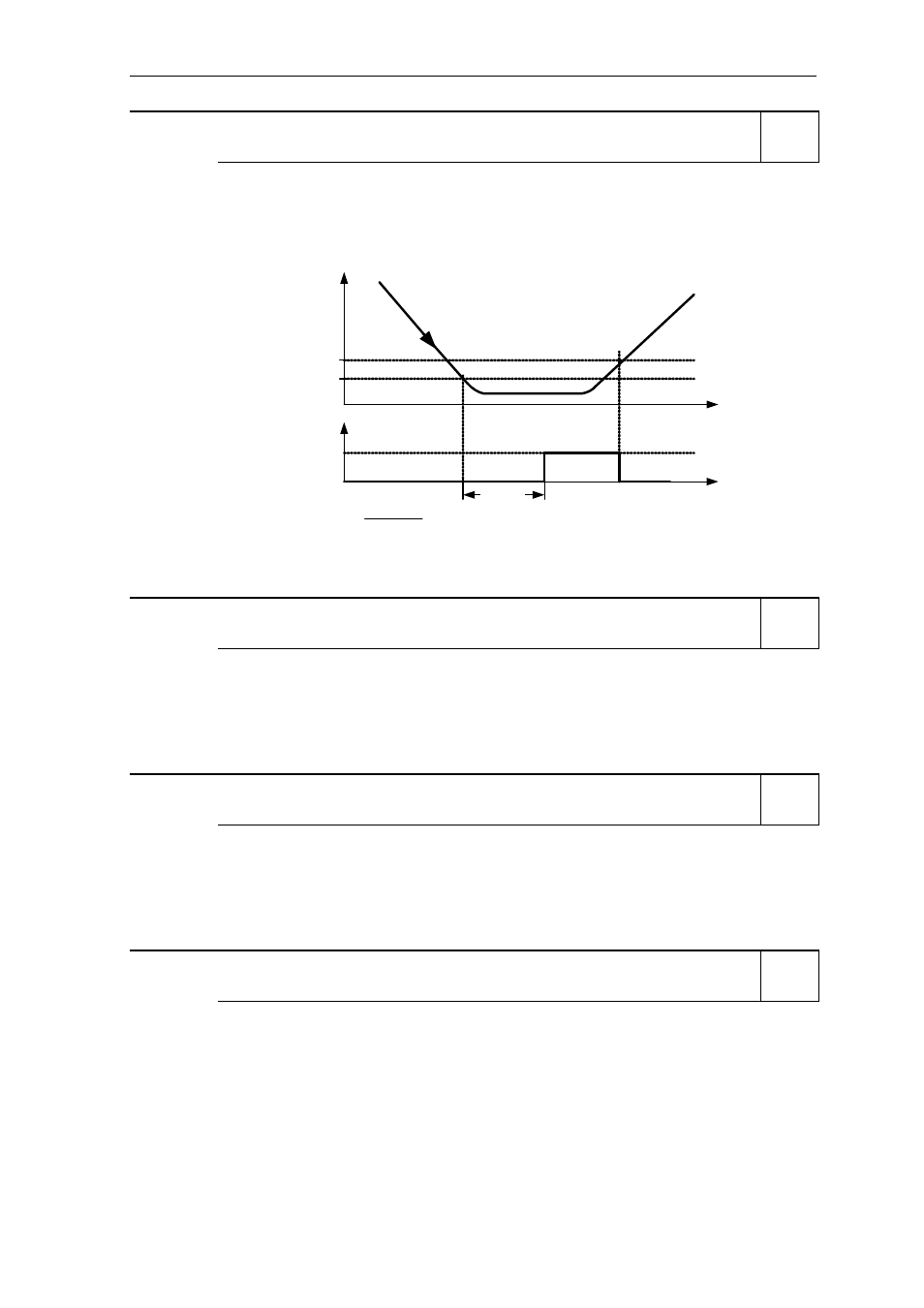

SLVC open loop
SLVC closed loop
P1758
t
[%] 100
[%] P1756
[Hz] P1755 [Hz] P1756 ⋅ =
 f_act 
t
P1755
P1756 [Hz]
Index:
P1755[0] : 1st. Drive data set (DDS)
P1755[1] : 2nd. Drive data set (DDS)
P1755[2] : 3rd. Drive data set (DDS)
P1756[3] Hyst.-freq. motor model (SLVC) Min: 10.0
CStat: CUT Datatype: Float Unit: % Def: 50.0
P-Group: CONTROL Active: Immediately QuickComm.: No Max: 100.0
Enters hysteresis frequency (in percent of start-frequency) to switch back from sensorless-vector-control
(SLVC) to current model.
Value is entered in the range 0 % to 50 % relative to P1755 (SLVC stop frequency).
Index:
P1756[0] : 1st. Drive data set (DDS)
P1756[1] : 2nd. Drive data set (DDS)
P1756[2] : 3rd. Drive data set (DDS)
P1758[3] Chng-ov. del. t SLVC op.-lp ctrl Min: 100
CStat: CUT Datatype: U16 Unit: ms Def: 1500
P-Group: CONTROL Active: Immediately QuickComm.: No Max: 2000
Sets the minimum time when the changeover frequency is fallen below when changing from the closed-loop
into the open-loop controlled mode.
Index:
P1758[0] : 1st. Drive data set (DDS)
P1758[1] : 2nd. Drive data set (DDS)
P1758[2] : 3rd. Drive data set (DDS)
Dependency:
Refer to P1750, P1755, P1756
P1759[3] Chng-ov. del. t SLVC cl.-lp ctrl Min: 50
CStat: CUT Datatype: U16 Unit: ms Def: 100
P-Group: CONTROL Active: Immediately QuickComm.: No Max: 2000
Sets the minimum time when the changeover frequency is exceeded when changing from the open-loop
controlled into the closed-loop controlled mode.
Index:
P1759[0] : 1st. Drive data set (DDS)
P1759[1] : 2nd. Drive data set (DDS)
P1759[2] : 3rd. Drive data set (DDS)
Dependency:
Refer to P1750, P1755, P1756
Level
3
Level
3
Level
3
Level
3
