Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
87
r0752[2]
Act. input of ADC [V] or [mA]
Min: -
Datatype: Float Unit:
-
Def:
-
P-Group: TERMINAL
Max: -

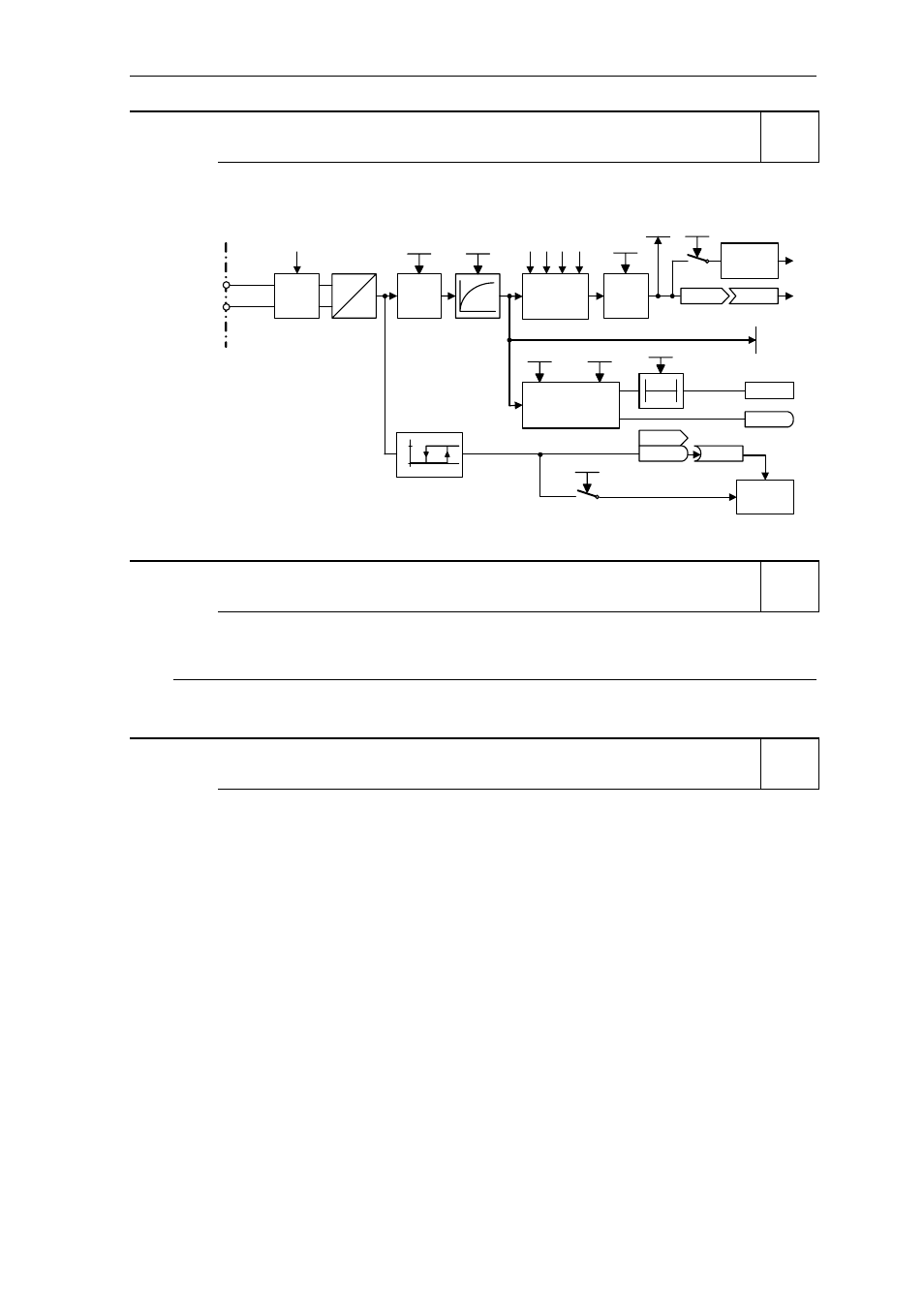

Displays smoothed analog input value in volts before the characteristic block.
KL4
KL3
DIP switch
A
D
ADC
type
ADC
scaling
P0
75
7
P0
75
8
P0
75
9
P0
76
0
ADC
dead
zone
r0755
Pxxxx
r0752
P1000
ADC
−
ADC+
r0754
P0761
P0753
P0756
ADC
type
Setpoint
ADC channel
Wire
breakage
sensing
P0756
P0761
r0751
F0080
r0722
r0722.6
0
1
1.7 V
3.9 V
P0707
Pxxxx
Function
T
0
P0762
Index:
r0752[0] : Analog input 1 (ADC 1)
r0752[1] : Analog input 2 (ADC 2)
P0753[2]
Smooth time ADC
Min: 0
CStat:
CUT
Datatype: U16 Unit:
ms
Def:
3
P-Group: TERMINAL
Active: first confirm
QuickComm.: No
Max: 10000
Defines filter time (PT1 filter) in [ms] for analog input.
Index:
P0753[0] : Analog input 1 (ADC 1)
P0753[1] : Analog input 2 (ADC 2)
Note:
Increasing this time (smooth) reduces jitter but slows down response to the analog input.
P0753 = 0 : No filtering
r0754[2]
Act. ADC value after scaling [%]
Min: -
Datatype: Float Unit:
%
Def:
-
P-Group: TERMINAL
Max: -
Shows smoothed value of analog input in [%] after scaling block.
Index:
r0754[0] : Analog input 1 (ADC 1)
r0754[1] : Analog input 2 (ADC 2)
Dependency:
P0757 to P0760 define range (ADC scaling).
Level
2
Level
3
Level
2
