Siemens 440 User Manual
Page 129
Issue 01/06
Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
129
r1084
Resultant max. frequency
Min: -
Datatype: Float Unit:
Hz
Def:
-
P-Group: CONTROL
Max: -
Displays resultant maximum frequency.
P1300 < 20
P1800
≤
6 kHz
→
650.00)
,
15
P1800
(P1082,
min
r1084
=
P1800
≥
8 kHz
→
650.00)
(P1082,
min
r1084
=
200.00)
P0310,
5
(P1082,
min
r1084
⋅
=
P1300
≥
20
P1091[3]
Skip frequency 1
Min: 0.00
CStat:
CUT
Datatype: Float Unit:
Hz
Def:
0.00
P-Group: SETPOINT
Active: Immediately
QuickComm.: No
Max: 650.00

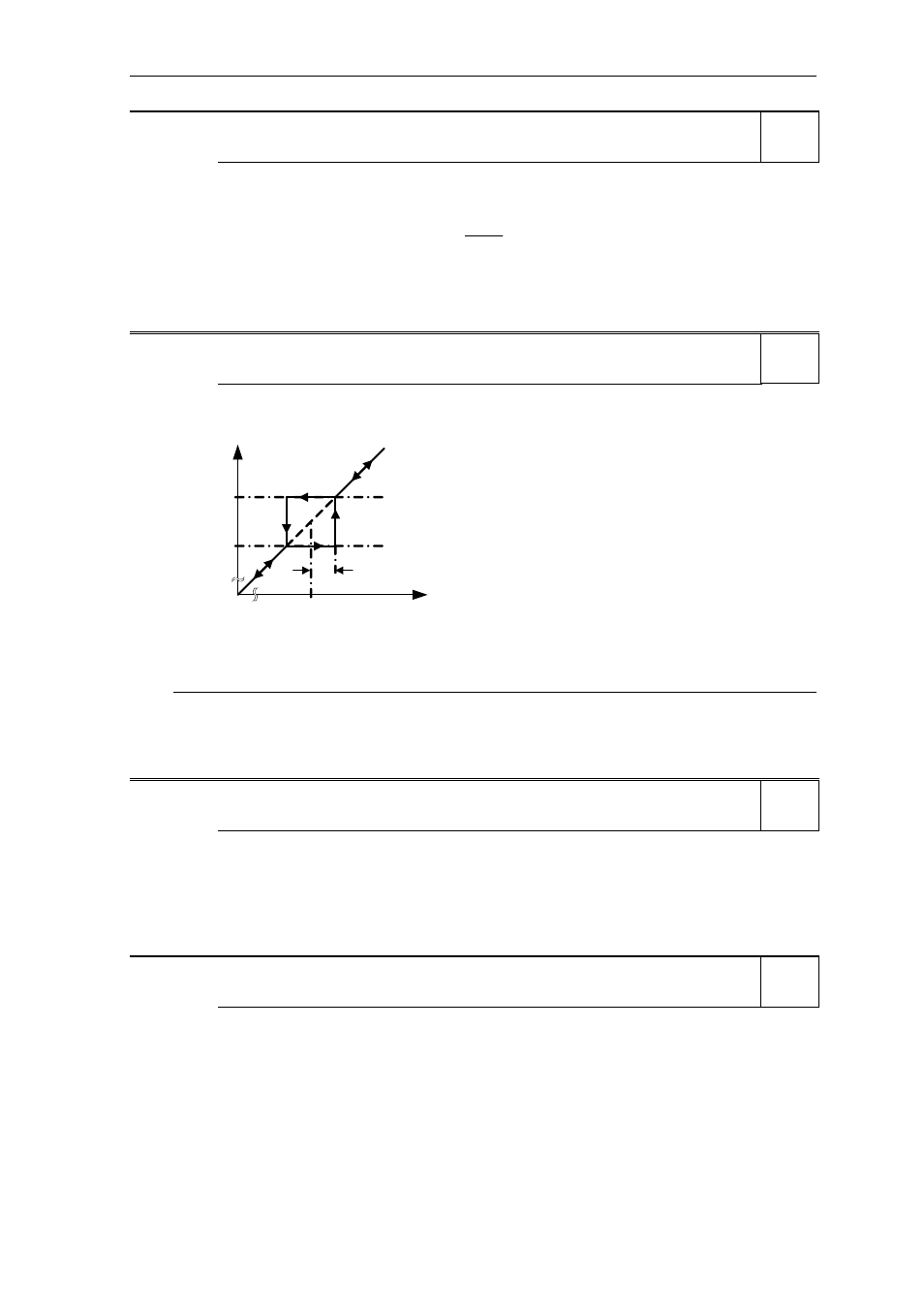

Defines skip frequency 1 which avoids effects of mechanical resonance and suppresses frequencies within
+/- P1101 (skip frequency bandwidth).
P1101
P1091
f
in
f
out
Skip frequency
bandwidth
Skip frequency
Index:
P1091[0] : 1st. Drive data set (DDS)
P1091[1] : 2nd. Drive data set (DDS)
P1091[2] : 3rd. Drive data set (DDS)
Notice:
-
Stationary operation is not possible within the suppressed frequency range; the range is merely passed
through (on the ramp).
-
For example, if P1091 = 10 Hz and P1101 = 2 Hz, it is not possible to operate continuously between 10
Hz +/- 2 Hz (i.e. between 8 and 12 Hz).
P1092[3]
Skip frequency 2
Min: 0.00
CStat:
CUT
Datatype: Float Unit:
Hz
Def:
0.00
P-Group: SETPOINT
Active: Immediately
QuickComm.: No
Max: 650.00
Defines skip frequency 2 which avoids effects of mechanical resonance and suppresses frequencies within
+/- P1101 (skip frequency bandwidth).
Index:
P1092[0] : 1st. Drive data set (DDS)
P1092[1] : 2nd. Drive data set (DDS)
P1092[2] : 3rd. Drive data set (DDS)
Details:
See P1091 (skip frequency 1).
P1093[3]
Skip frequency 3
Min: 0.00
CStat:
CUT
Datatype: Float Unit:
Hz
Def:
0.00
P-Group: SETPOINT
Active: Immediately
QuickComm.: No
Max: 650.00
Defines skip frequency 3 which avoids effects of mechanical resonance and suppresses frequencies within
+/- P1101 (skip frequency bandwidth).
Index:
P1093[0] : 1st. Drive data set (DDS)
P1093[1] : 2nd. Drive data set (DDS)
P1093[2] : 3rd. Drive data set (DDS)
Details:
See P1091 (skip frequency 1).
Level
3
Level
3
Level
3
Level
3
