Siemens 440 User Manual

Page 51

Issue 01/06

Parameter Description

MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0

P0304[3] Rated

motor

voltage

Min: 10

CStat:

Datatype: U16 Unit:

Def:

230

P-Group: MOTOR

Active: first confirm

QuickComm.: Yes Max: 2000

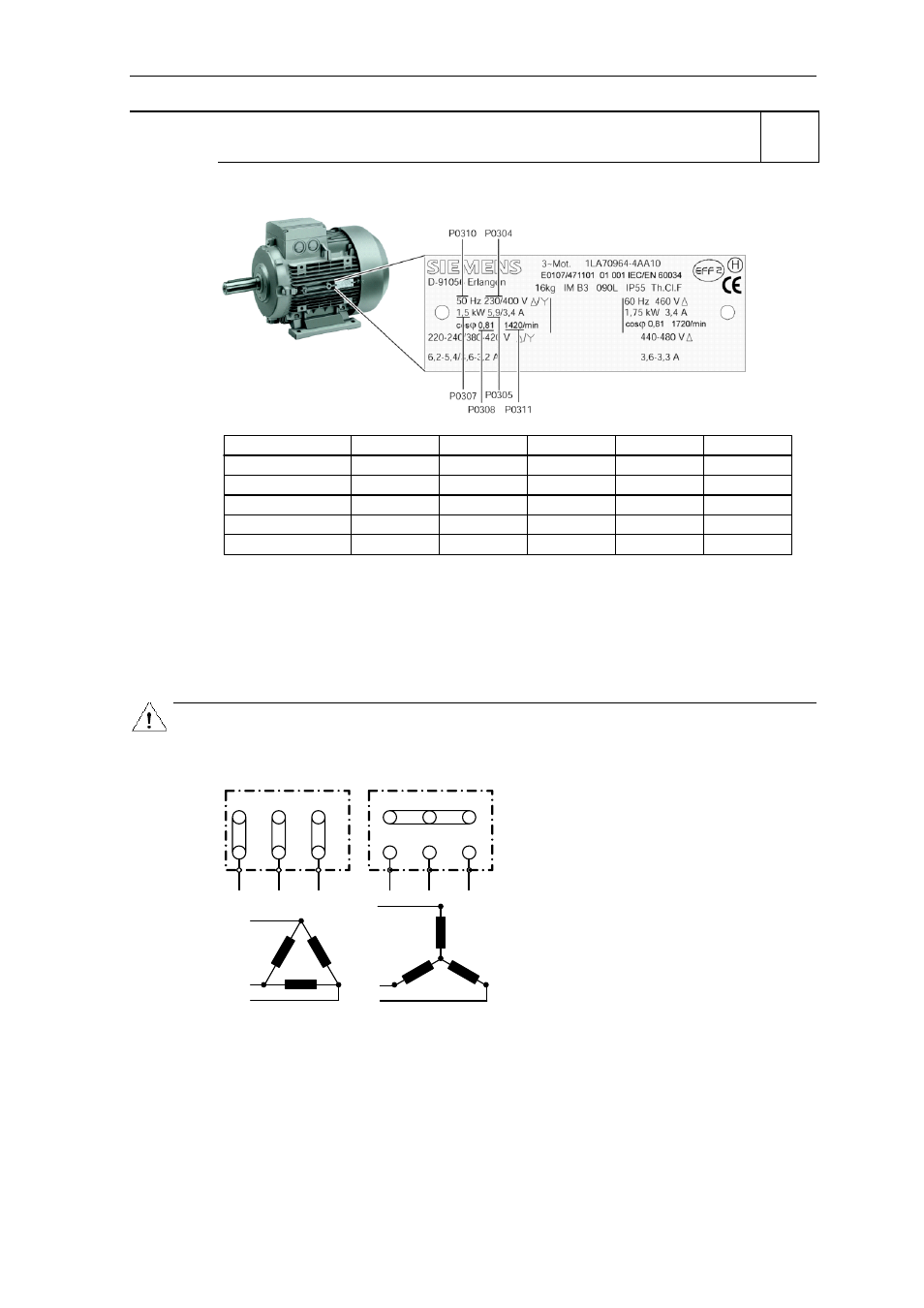

Nominal motor voltage [V] from rating plate. Following diagram shows a typical rating plate with the
locations of the relevant motor data.

1 AC 110 V *)

-
-
-
-

1 AC 230 V

3 AC 230 V

-
-

3 AC 400 V

X
X
X
X

3 AC 500 V

-
-
-
-

MICROMASTER 410
MICROMASTER 411
MICROMASTER 420
MICROMASTER 430
MICROMASTER 440

*) Line supply voltage 1-ph. 110 V AC is stepped-up --> frequency inverter output voltage 3-ph. 230 V AC

Line supply voltage

Index:

P0304[0] : 1st. Drive data set (DDS)
P0304[1] : 2nd. Drive data set (DDS)
P0304[2] : 3rd. Drive data set (DDS)

Dependency:

Changeable only when P0010 = 1 (quick commissioning).

Default value is depending on inverter type and its rating data.

Caution:

The input of rating plate data must correspond with the wiring of the motor (star / delta). This means, if delta
wiring is used for the motor, delta rating plate data has to be entered.

Delta connection

V1
W1

Star connection

IEC Motor

e.g.: Volts 230 V (Delta connection) / 400 V (Star connection)

Level
