Parameter Description Issue 01/06
MICROMASTER 440 Parameter List
98 6SE6400-5BB00-0BP0
P0809[3] Copy command data set (CDS) Min: 0
CStat: CT Datatype: U16 Unit: - Def: 0
P-Group: COMMANDS Active: first confirm QuickComm.: No Max: 2
Calls "copy Command Data Set (CDS)" function.
The list of all Command Data Sets (CDS) are shown in the opening instructions of the Parameter List (PLI).
Index:
P0809[0] : Copy from CDS
P0809[1] : Copy to CDS
P0809[2] : Start copy

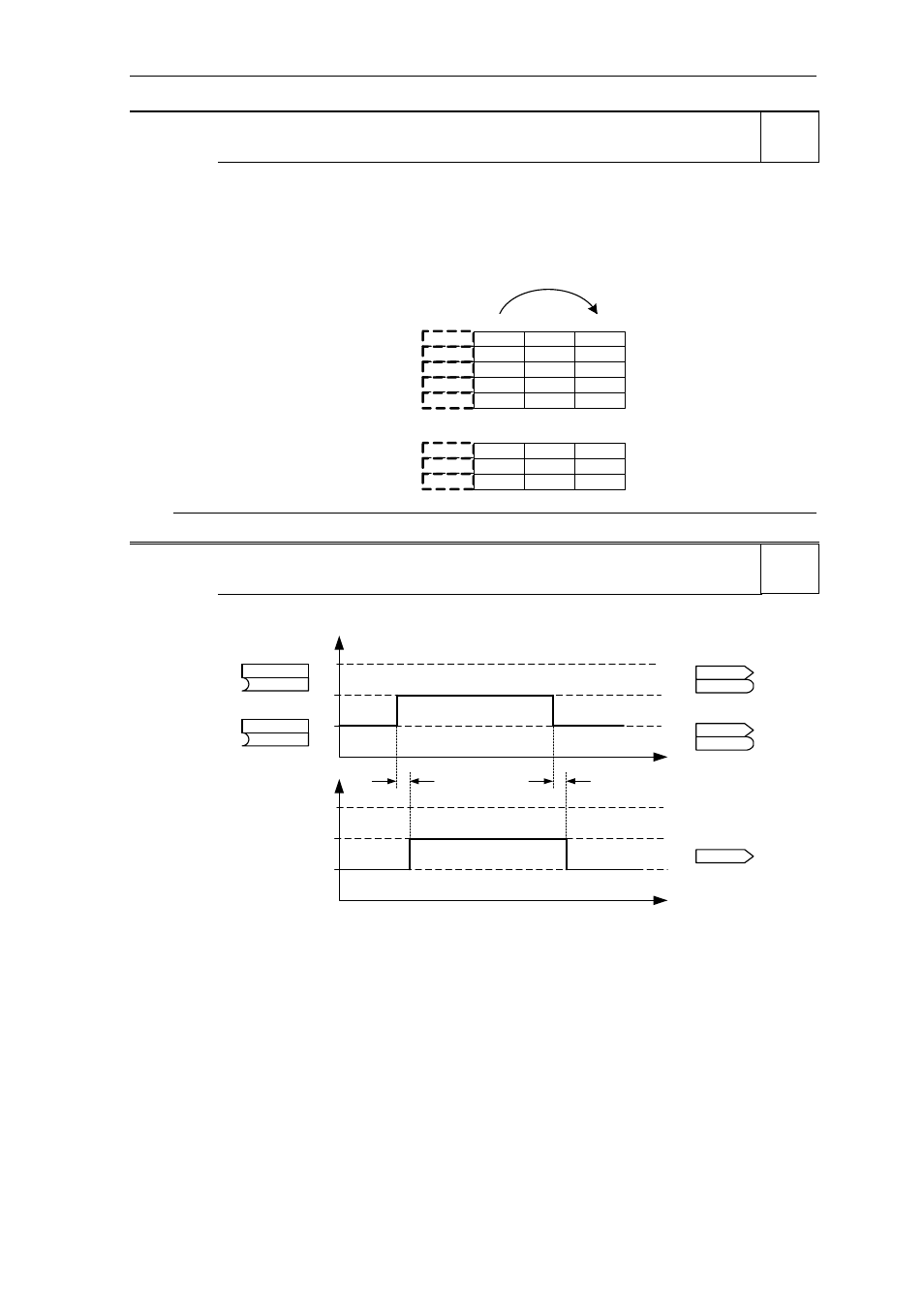

Example:
Copying of all values from CDS1 to CDS3 can be accomplished by the following procedure:
P0809[0] = 0
P0809[1] = 2
P0809[2] = 1
2. CDS 3. CDS
P0700
P0701
P0702
P0703
P0704
..
..
.
P2253
P2254
P2264
..
..
.
..
..
.
..
..
.
[0] [1] [2]
1. CDS
1. CDS
3. CDS
Start copy
Note:
Start value in index 2 is automatically reset to "0" after execution of function.
P0810 BI: CDS bit 0 (Local / Remote) Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: COMMANDS Active: first confirm QuickComm.: No Max: 4095:0
Selects command source from which to read Bit 0 for selecting a command data set (CDS).
t 0
1
2
3
(0:0)
BI: CDS b0 loc/rem
P0810
(0:0)
BI: CDS bit 1
P0811
t 0
1
2
3
CO/BO: Act CtrlWd2
r0055
r0055
CO/BO: Act
CtrlWd1
r0054
r0054
.15
.15
.15
.15
r0050
CDS active
Selecting
CDS
approx.
4 ms approx.
4 ms
r0050
CO: Active CDS
Changeover
time
Changeover
time
Level
2
Level
2
