Rockwell Automation 193-EC1_2_3_5, 193-ECPM,592-EC1_2_3_5 E3 and E3 Plus Solid-State Overload Relay User Manual User Manual
Page 99
Rockwell Automation Publication 193-UM002I-EN-P - December 2011
99
DeviceNet™ Node Commissioning Chapter 4
After a short time, the RSNetWorx software updates the online screen by
replacing Unrecognized Device with the name and icon given by the EDS file
that you have just registered.
Using the Node Commissioning Tool of RSNetWorx for DeviceNet
1.
Select Node Commissioning from the Tools drop-down menu.
2.

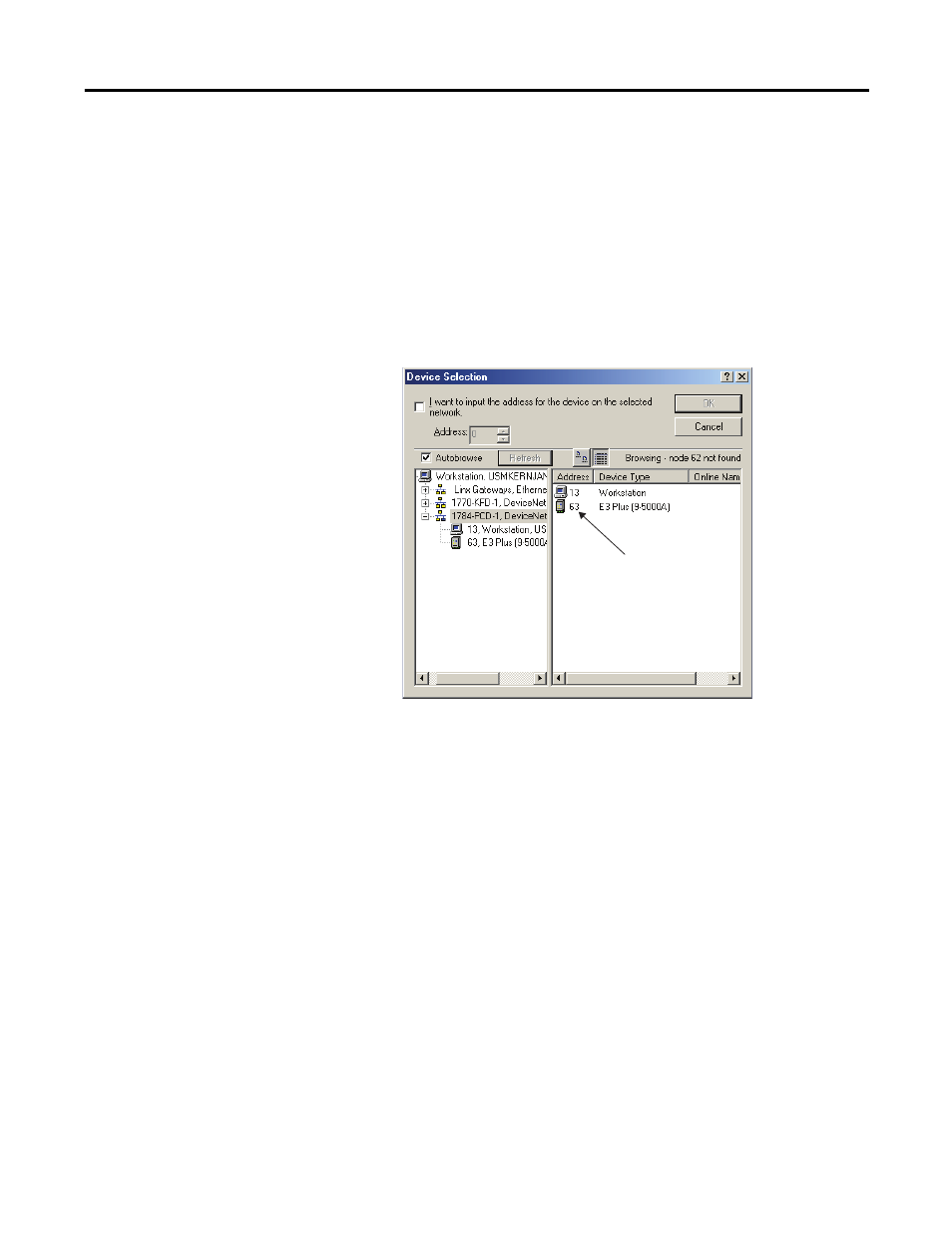

Select Browse.
3.
Select the E3 Overload Relay located at node 63.
4.
Select OK.
NOTE:
The Node Commissioning screen shows Current Device Settings entries
completed. It will also provide the current network baud rate in the New
E3 Overload Relay Settings area. Do not change the baud rate setting
unless you are sure it must be changed.
