5. If RSNetWorx software recognizes the device as an E3 Overload Relay,
skip ahead to the following section – Using the Node Commissioning Tool
of RSNetWorx for DeviceNet.
Building and Registering an EDS File
The EDS file defines how RSNetWorx for DeviceNet will communicate to the
E3 Overload Relay. The EDS file can be created over the DeviceNet network or
downloaded from the Internet.
Perform the following steps to build and register the EDS file.
1. Right-click the Unrecognized Device icon. The Register Device menu
appears.
2. Select Yes. The EDS Wizard will appear.
3. Select Next, then Create an ESD File.
4. Select Next.
5. Select Upload EDS.
6. Select Next. The EDS Wizard screen appears:.

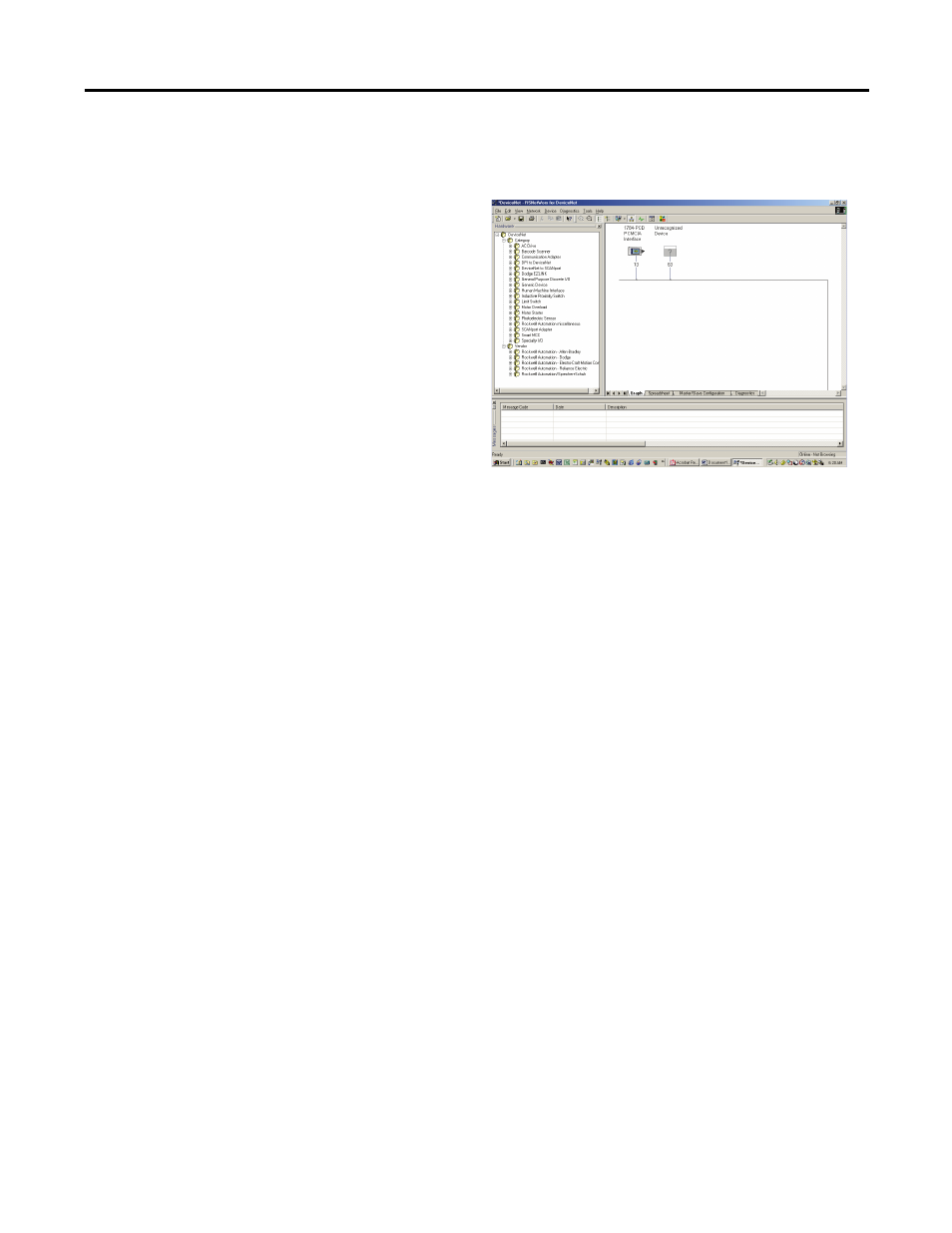

TIP If the screen appears as shown below, continue with Building and
Registering an EDS file.
TIP Node Commissioning can also be accomplished by using the
DeviceNet Configuration Terminal, Cat. No. 193-DNCT.
NOTE: If you are using DeviceLogix functionality, you must download the EDS file
from www.ab.com/networks/eds.
