Chapter 2 Installation & Wiring

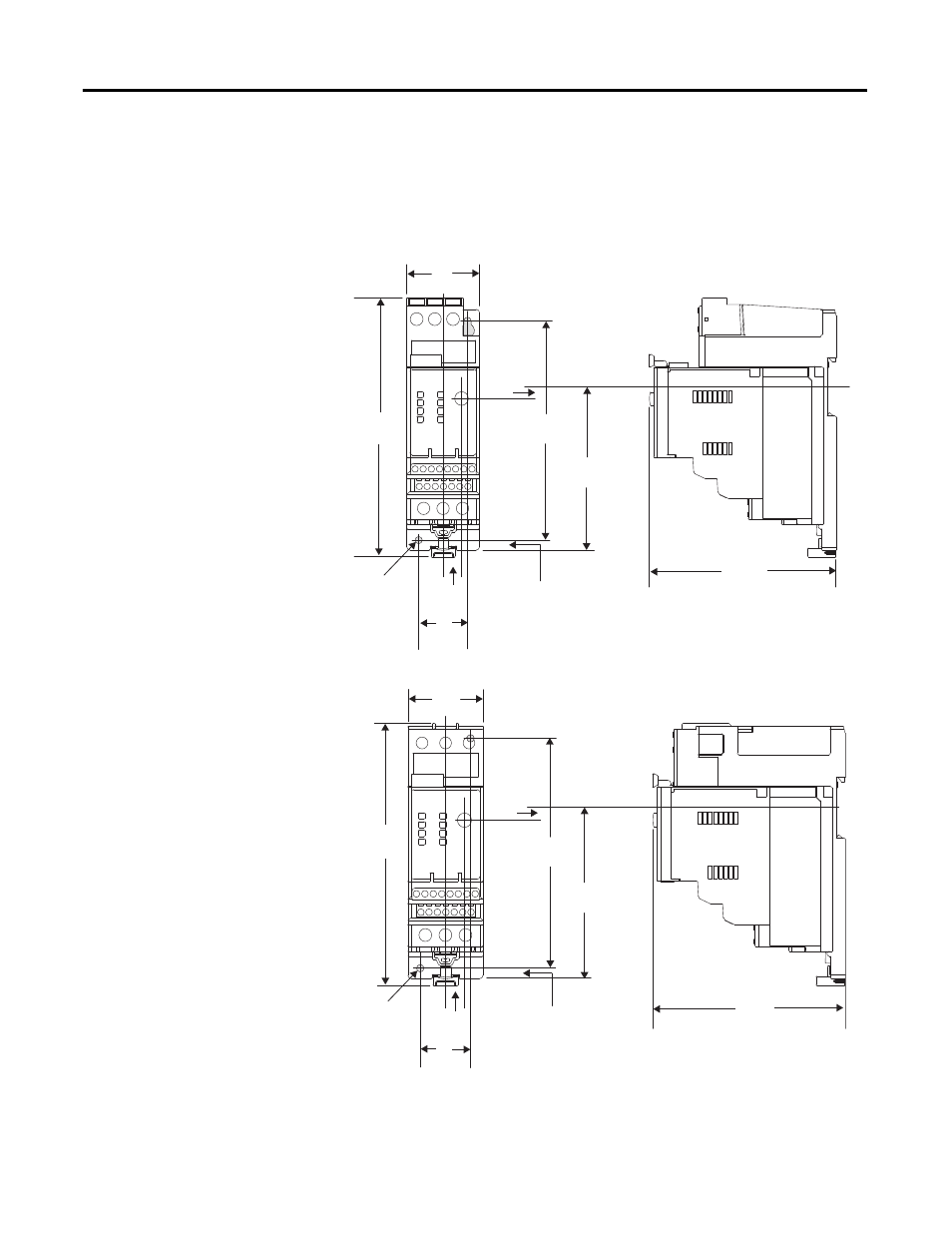

Separate Panel Adapter Approximate Dimensions
Approximate dimensions are shown in millimeters (inches). Dimensions are not
intended to be used for manufacturing purposes.
Figure 8 - 193-ECPM1 Panel Adapter for use with Cat. No. 193-EC_ _B
Figure 9 - 193-ECPM2 Panel Adapter for use with Cat. No. 193-EC_ _D & Z
45
(1-25/32)
159.3
(6-17/64)
7.3
(9/32)
135
(5-5/16)
6.1
(1/4)
100.5
(3-31/32)
Ш 4.4
(11/64) 11.4
(29/64)
30
(1-3/16)
115
(4-17/32)
11.4
(29/64)
30
(1-3/16)
45
(1-25/32)
7.3
(9-32)
135
(5-5/16)
154.2
(6-5/64)
100.5
(3-31/32)
6.1
(1/4)
115
(4-17/32)
Ш 4.4
(11/64)
