Rockwell Automation 193-EC1_2_3_5, 193-ECPM,592-EC1_2_3_5 E3 and E3 Plus Solid-State Overload Relay User Manual - Manual (Page 208)

208 Rockwell Automation Publication 193-UM002I-EN-P - December 2011
Chapter 11 Using DeviceLogix™

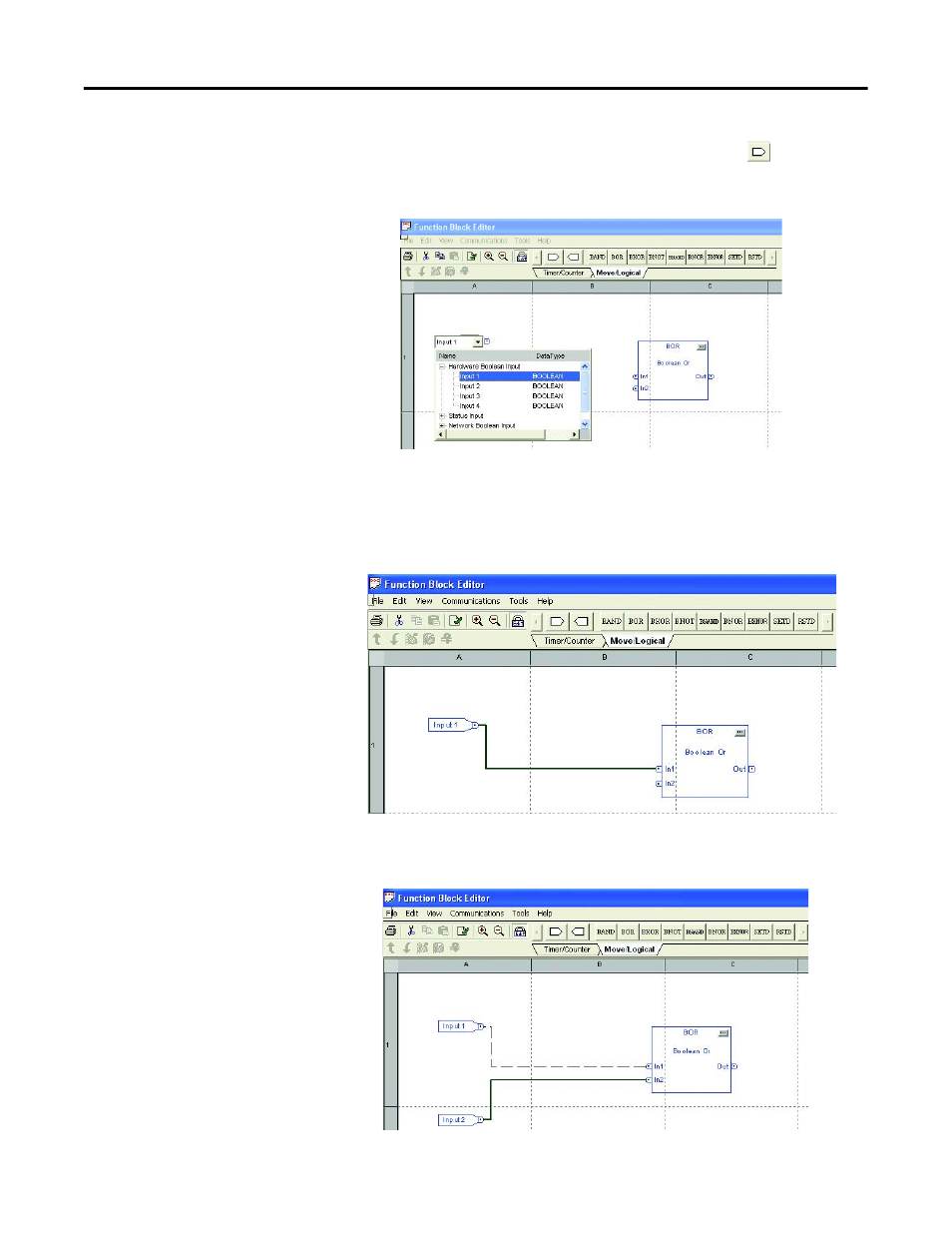

4. Using the left mouse button, select the Bit Input block and drag it to
the left of the BOR function block. Double-click on the Bit Input block
to select Input 1 of the E3 Plus under the Hardware Boolean Input set.
5. Place the cursor on the right of the Bit Input block and press the left mouse
button. Draw a line from the Bit Input block to the In1 of the BOR
function block and double-click the left mouse button to establish a
connection.
6. Repeat steps 4 and 5 to add Input 2 of the E3 Plus to In2 of the BOR
function block.
