Using DeviceLogix™ Chapter 11

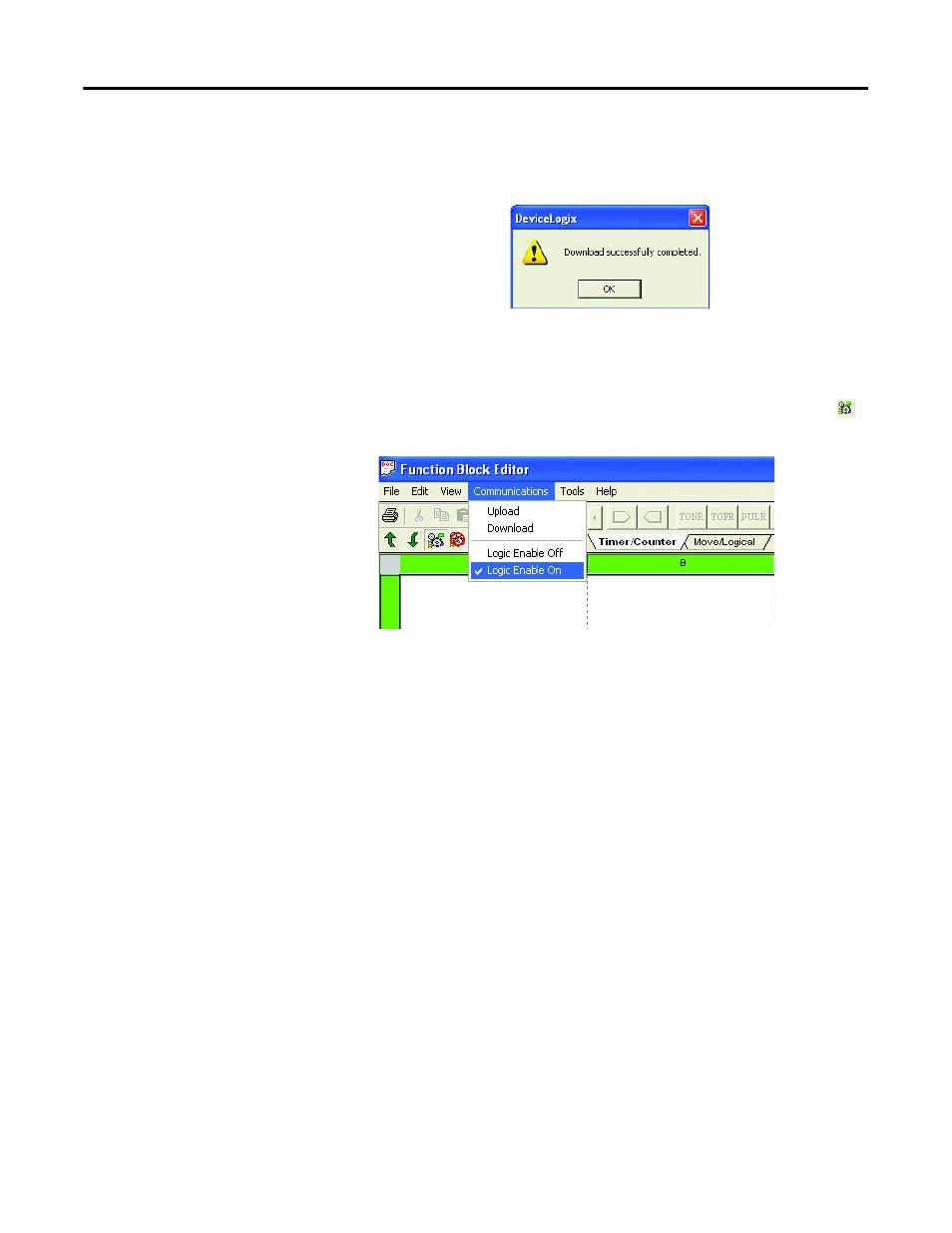

A dialog box will appear when the Function Blocks are successfully
downloaded to the E3 Plus. Press OK to continue.
12.
Next, the DeviceLogix Function Blocks need to be enabled. This can be
done through a DeviceNet Configuration Terminal (Catalog Number
193-DNCT) or through RSNetWorx. When using RSNetWorx to enable
the DeviceLogix function blocks, select the Logic Enable On button
or through the Communications menu.
13.
Verify the functionality of the DeviceLogix Function Blocks by enabling
Input 1 on the E3 Plus. When Input 1 is enabled, Output A will energize.
