Page 44
44
Rockwell Automation Publication 193-UM002I-EN-P - December 2011
Chapter 2 Installation & Wiring

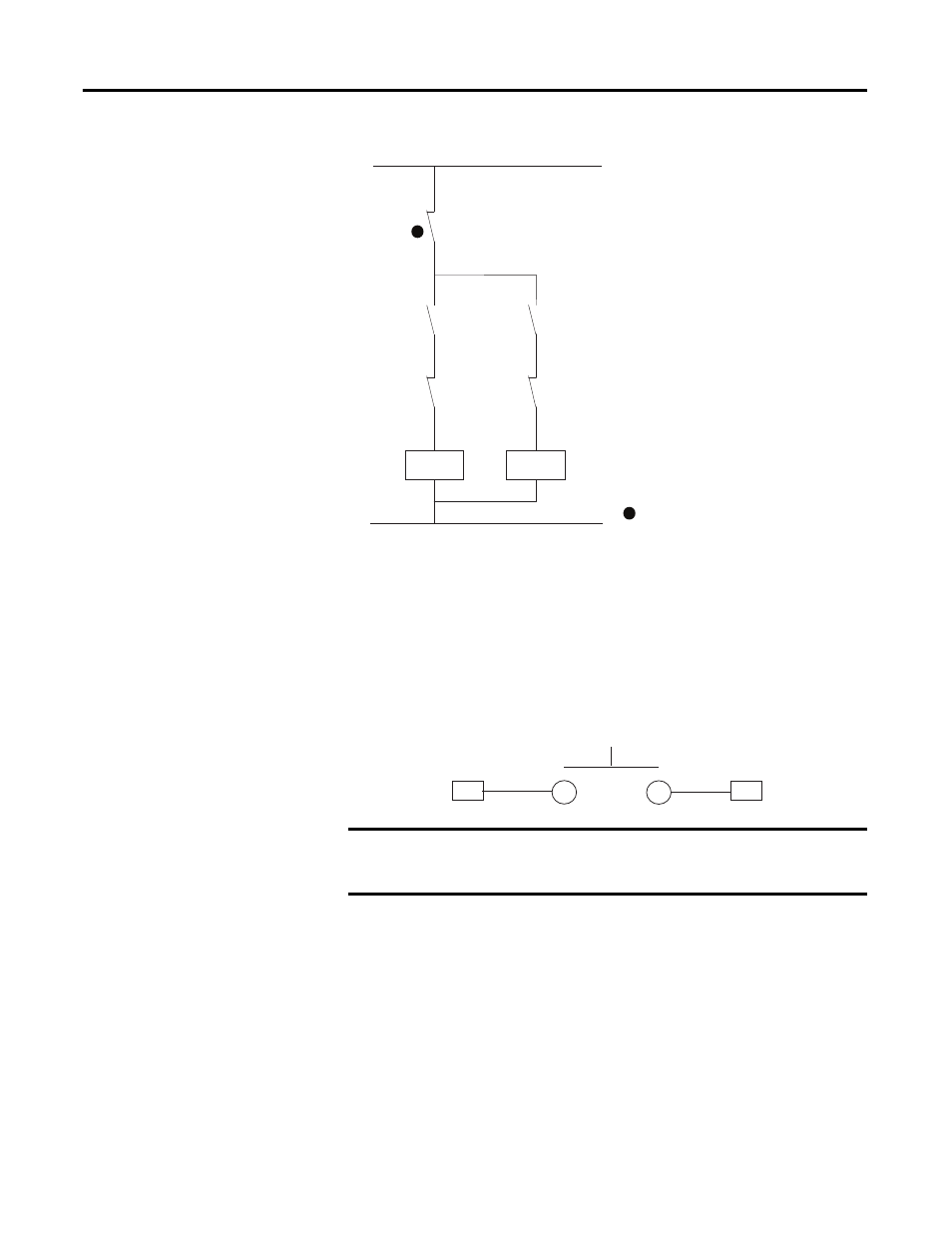

Figure 28 - CENELEC Nomenclature
External/Remote Reset (FRN 3.001 & Later)
To reset a trip from an external/remote location, configure one of the E3
Overload Relay’s inputs for trip reset operation using one of Parameters 83…86.
Wire the input as shown below.
Figure 29 - Reset Wiring
IMPORTANT Reset operation is edge sensitive and trip free. That is, holding the push
button down (maintaining the reset contact in a closed position) will not
prevent the E3 Overload Relay from tripping.
E3 Plus
Trip Relay
Contact shown with supply voltage applied.
2
2
E3 Plus
Out A
E3 Plus
Out B
L1
95
96
23
24
13
14
K2
K1
A1
A2
A1
A2
K2
K1
N
Reset
1-4
5
