Rockwell Automation 193-EC1_2_3_5, 193-ECPM,592-EC1_2_3_5 E3 and E3 Plus Solid-State Overload Relay User Manual User Manual
Page 19
Rockwell Automation Publication 193-UM002I-EN-P - December 2011
19
Installation & Wiring Chapter 2

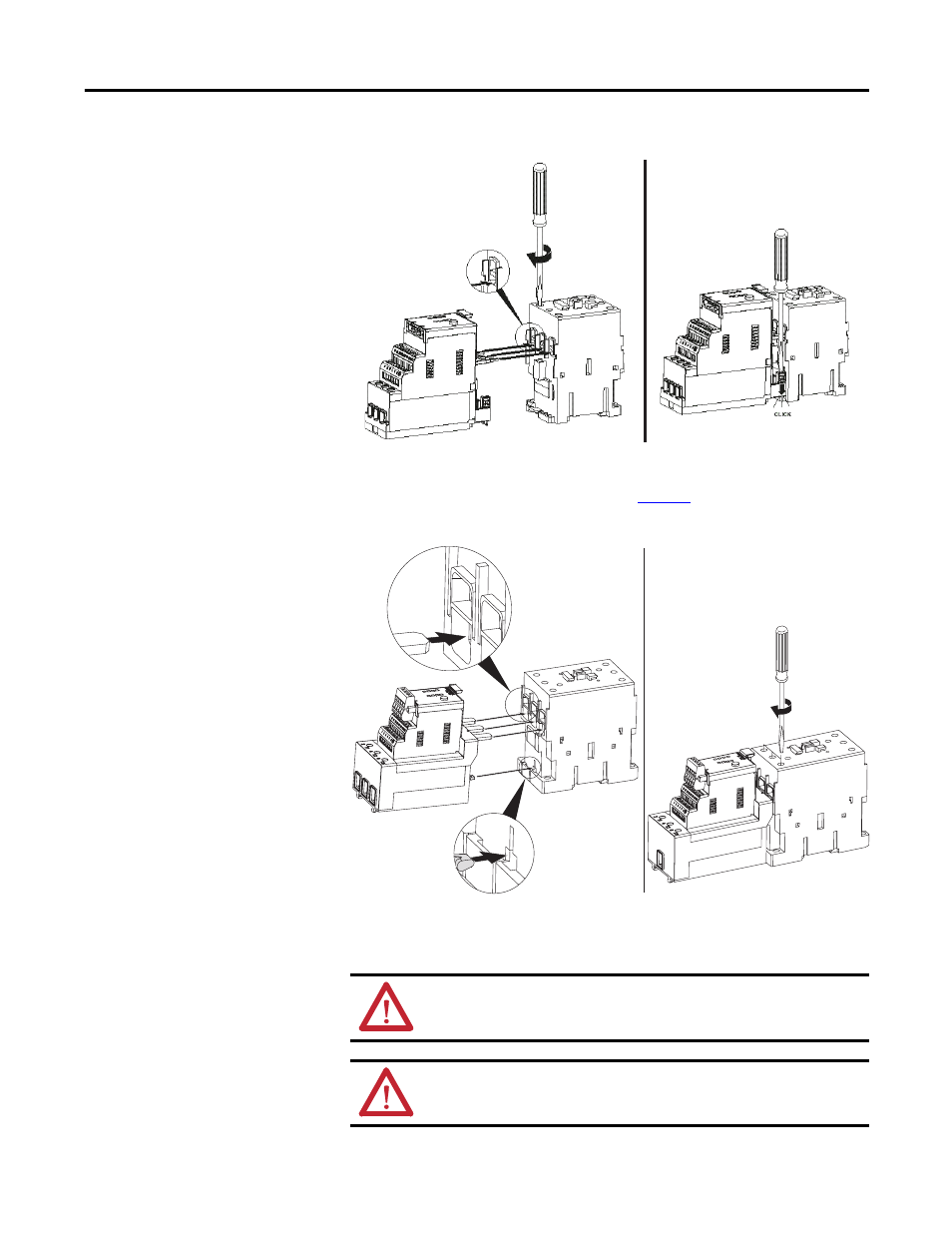

Figure 2 - 100-C09…C43 Starter Assembly Installation
The 100-C60…C85 Starter Assembly installation instructions for use with
Catalog Numbers 193-EC_ _E are shown in
Figure 3 - 100-C60…C85 Starter Assembly Installation
The 100-D95…D860 Starter Assembly installation instructions for use with
Catalog Numbers 193-EC_ _F, 193-EC_ _G, and -EC_ _H are shown below.
ATTENTION: The voltage ratings of the E3 Overload Relay’s output and
trip relays must not be exceeded. If the voltage ratings are exceeded, an
interposing relay must be used.
ATTENTION: Connect the internal metal shield to a solid earth ground
via a low impedance connection.
3
1
2
2.5 N m
2 lb in
2
4 N·m
35 lb-in
1
