20 Rockwell Automation Publication 193-UM002I-EN-P - December 2011
Chapter 2 Installation & Wiring

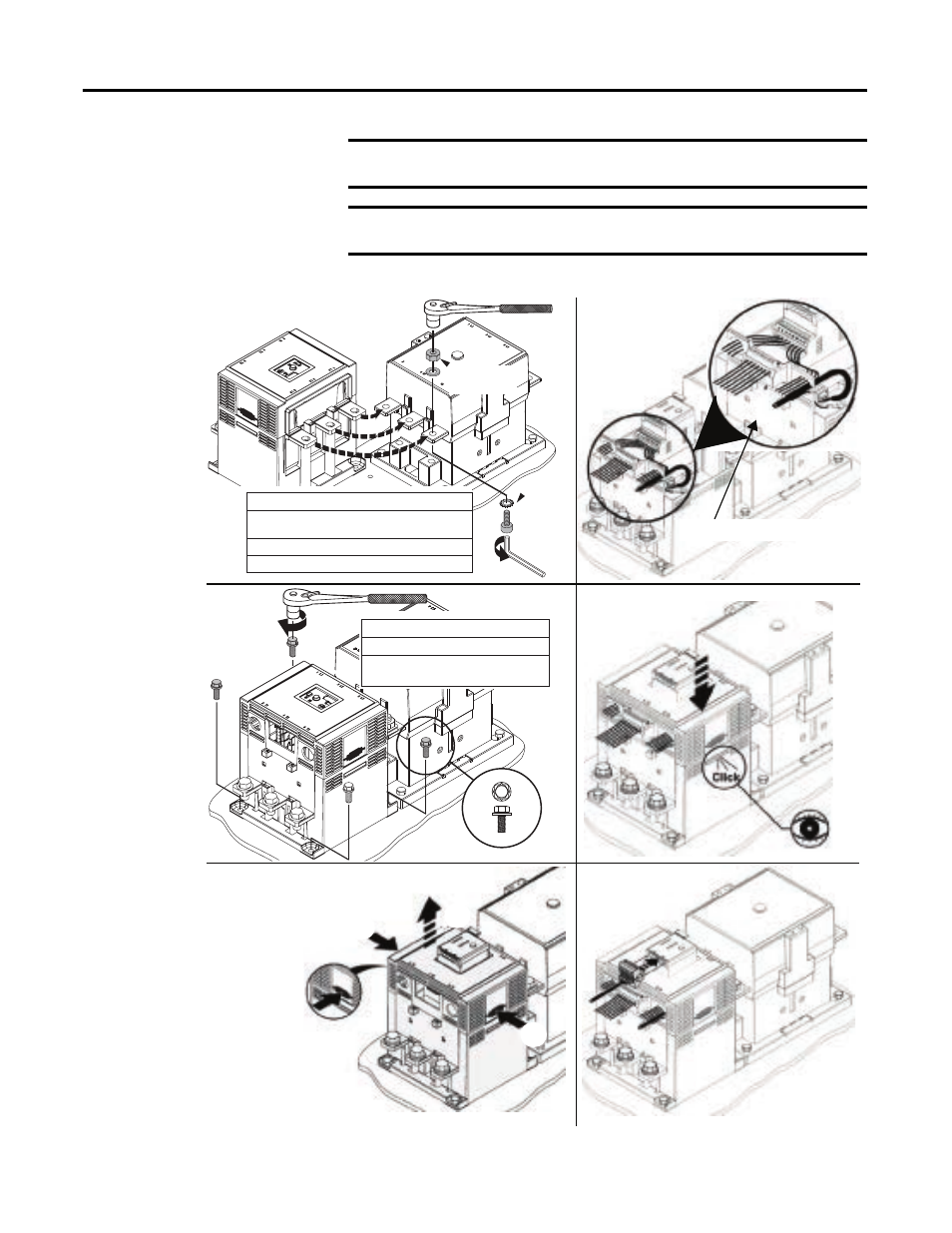

Figure 4 - 100-D95…D860 Starter Assembly Installation
IMPORTANT Ground fault protection requires connection of an external core balance
current transformer (CBCT).
IMPORTANT For identification of the proper CT ratio to be programmed, refer to the
product nameplate.
2
1 4
Supplied
with
Contactor
1
11 N·m (100 lb-in)
22 N·m (195 lb-in)
100-D95E / D110E / D115E
100-D115 / D140 / D180
100-D210 / D420
100-D95 / D110
43 N·m (380 lb-in)
100-D630 / D860 68 N·m (600 lb-in)
(M5) 3.4 N·m (30 lb-in)
(M6) 7.3 N·m (65 lb-in)
193-EC _ _ G
193-EC _ _ H
193-EC _ _ F
(M12 Provided)
45 N·m (400 lb-in)
5
6
a
a
b
Supplied
with Contactor
3
Accessory 193-EIMD shown.
