Rockwell Automation 193-EC1_2_3_5, 193-ECPM,592-EC1_2_3_5 E3 and E3 Plus Solid-State Overload Relay User Manual User Manual
Page 207
Rockwell Automation Publication 193-UM002I-EN-P - December 2011
207
Using DeviceLogix™ Chapter 11
1.

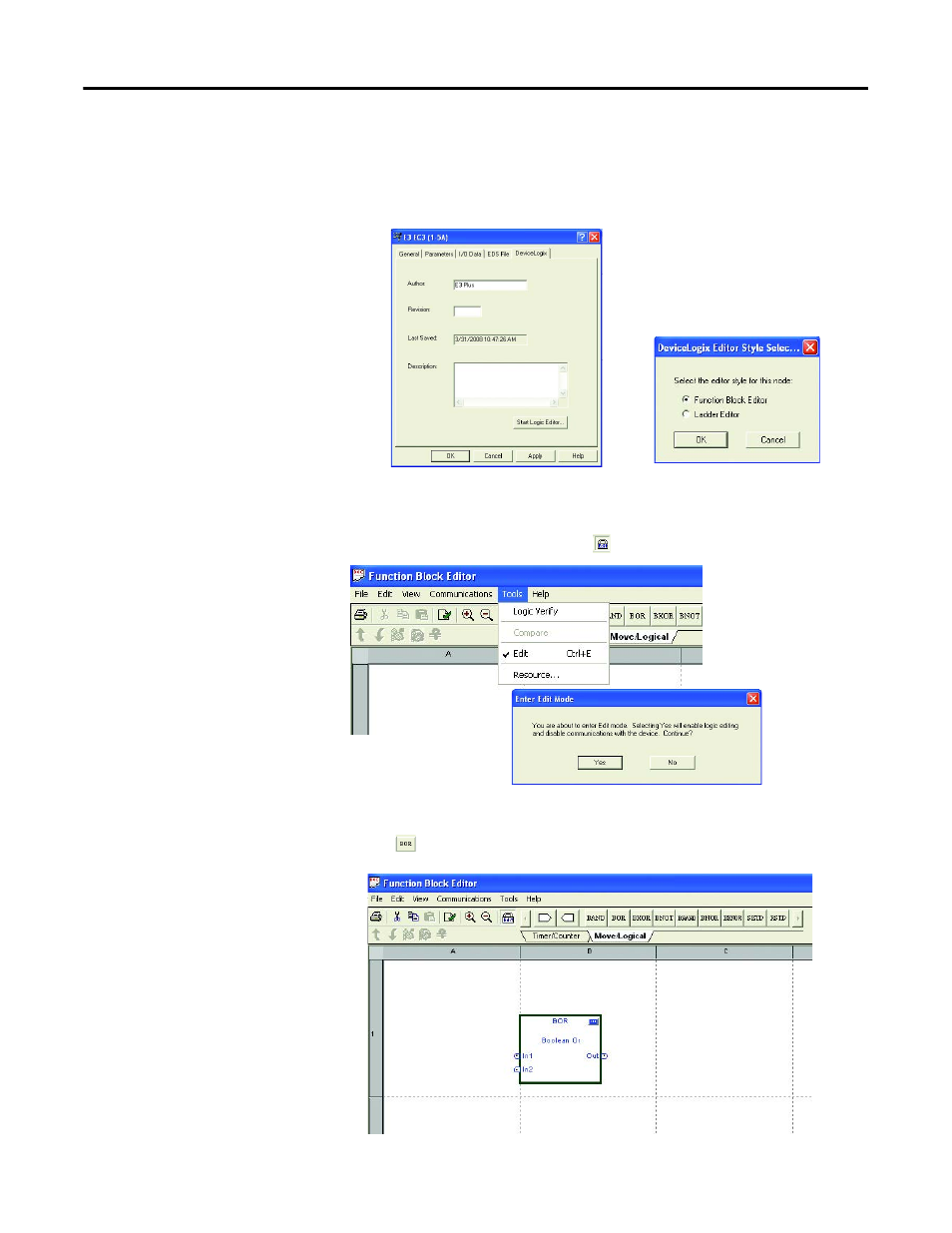

While in RS NetWorx for DeviceNet, double-click on the E3 Plus and
select the DeviceLogix Tab. If you are prompted with a dialog box while
online with the E3 Plus, then select Upload. Next, select Start Logic
Editor, select the Function Block Editor, and press OK.
2.
If programming offline, then continue to Step 3. If programming online,
place the E3 Plus into Edit mode by selecting Edit from the Tools pull
down menu or by selecting the
button. Select Yes to enter Edit mode.
3.
Using the left mouse button, select the Boolean OR (BOR) function block
from the Move/Logical tab and drag it onto the display.
