Rockwell Automation Publication 193-UM002I-EN-P - December 2011

101

DeviceNet™ Node Commissioning Chapter 4

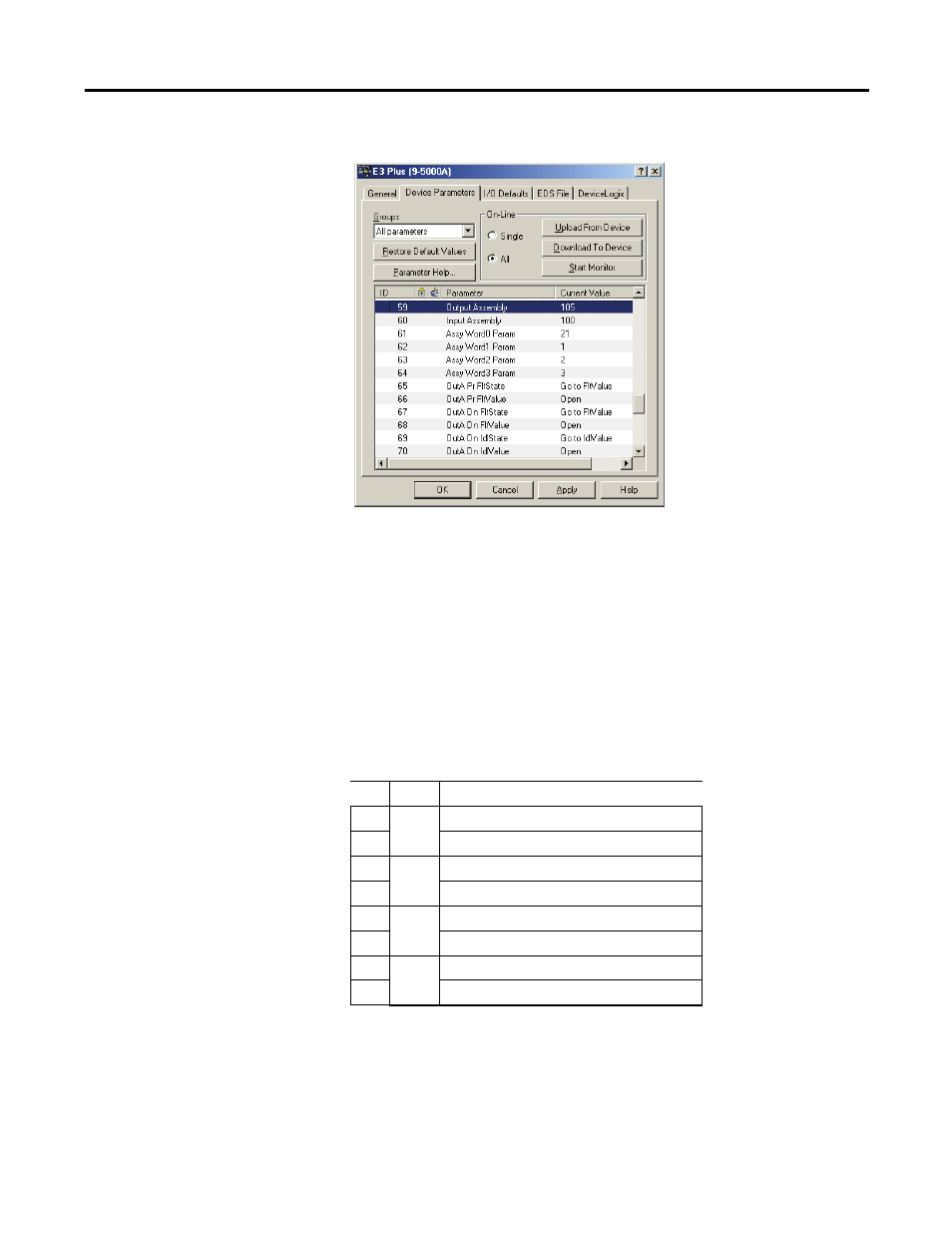

Figure 34 - I/O Assembly Settings

Selection of Input and Output Assemblies (a.k., Produced and Consumed
Assemblies) define the format of I/O message data that is exchanged between the
E3 Overload Relay and other devices on the network. The consumed
information is generally used to command the state of the slave device’s outputs,
and produced information typically contains the state of the inputs and the
current fault status of the slave device.

The default Consumed and Produced Assemblies are shown in the tables below.
For additional formats, refer to Appendix B.

Table 25 - Instance 100 Parameter Based Input Assembly

Byte Words Value of Parameter Pointed to by Parameter
0

0

#61 Low Byte

1

#61 High Byte

2

1

#62 Low Byte

3

#62 High Byte

4

2

#63 Low Byte

5

#63 High Byte

6

3

#64 Low Byte

7

#64 High Byte
