500/2500 Line Disconnect
•
an internal DN places an outgoing call on a trunk with disconnect
supervision, then transfers the call to the LDTA port and then the trunk
disconnects.
illustrates how an
incoming trunk call or internal call functions with 500/2500 Type Line
Disconnect. This illustration shows the incoming trunk call or internal call
disconnected and dial tone being provided by the analog (500/2500-type)
port with the new Class of Service (CLS) Line Disconnect Tone Allowed
(LDTA).

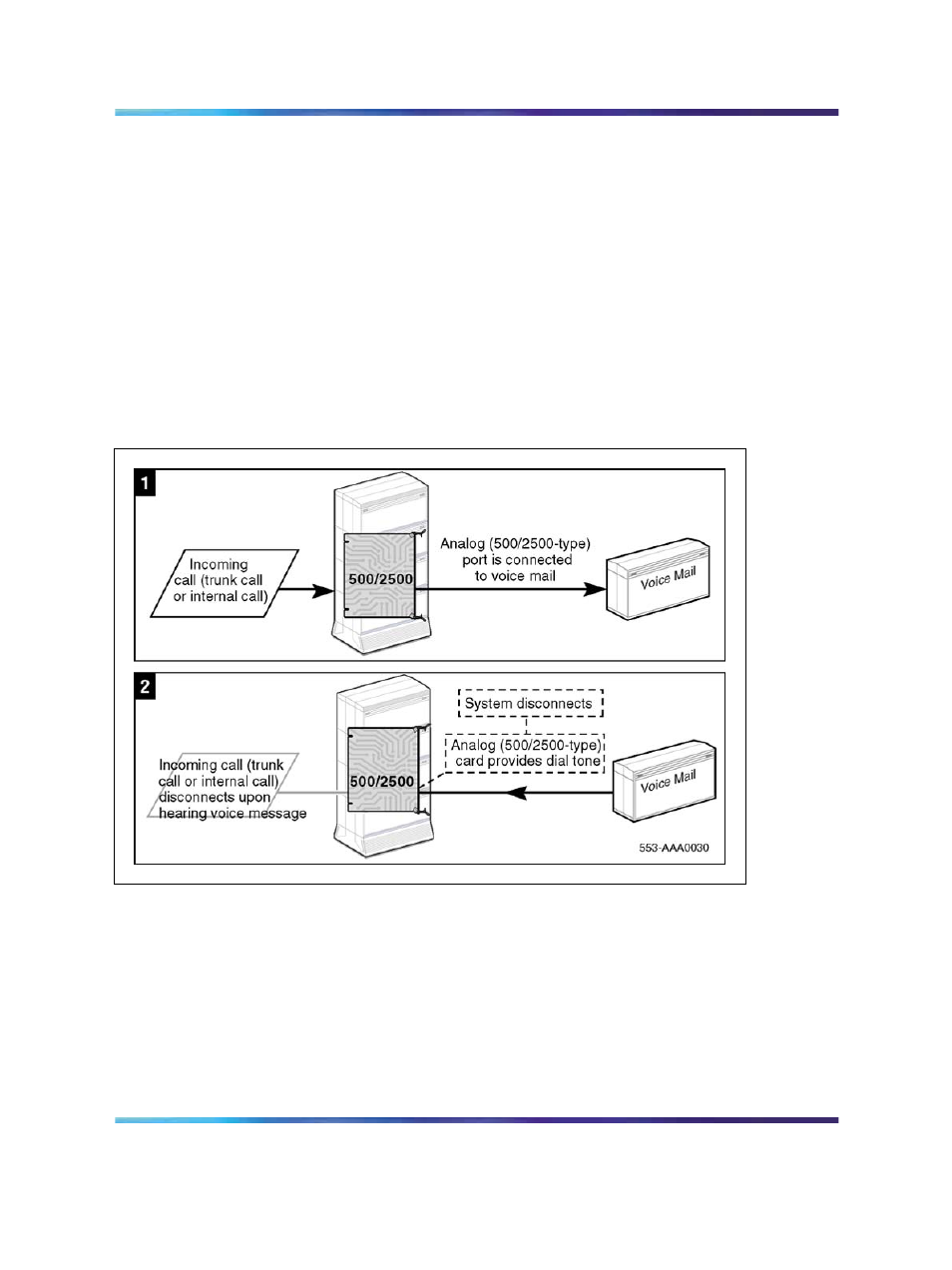

Figure 1
Incoming trunk call of internal call disconnect function when 500/2500 line disconnect feature
is configured
illustrates how an outgoing call functions
with this feature. This illustration shows an outgoing call from the system to
the Central Office. Station A transfers Station B to Meridian Mail and goes
on-hook. When Station B disconnects, dial tone is provided by the analog
(500/2500-type) port with the new LDTA Class of Service.
