Chapter 2 System Installation
1-72
2
Visual KV
Series

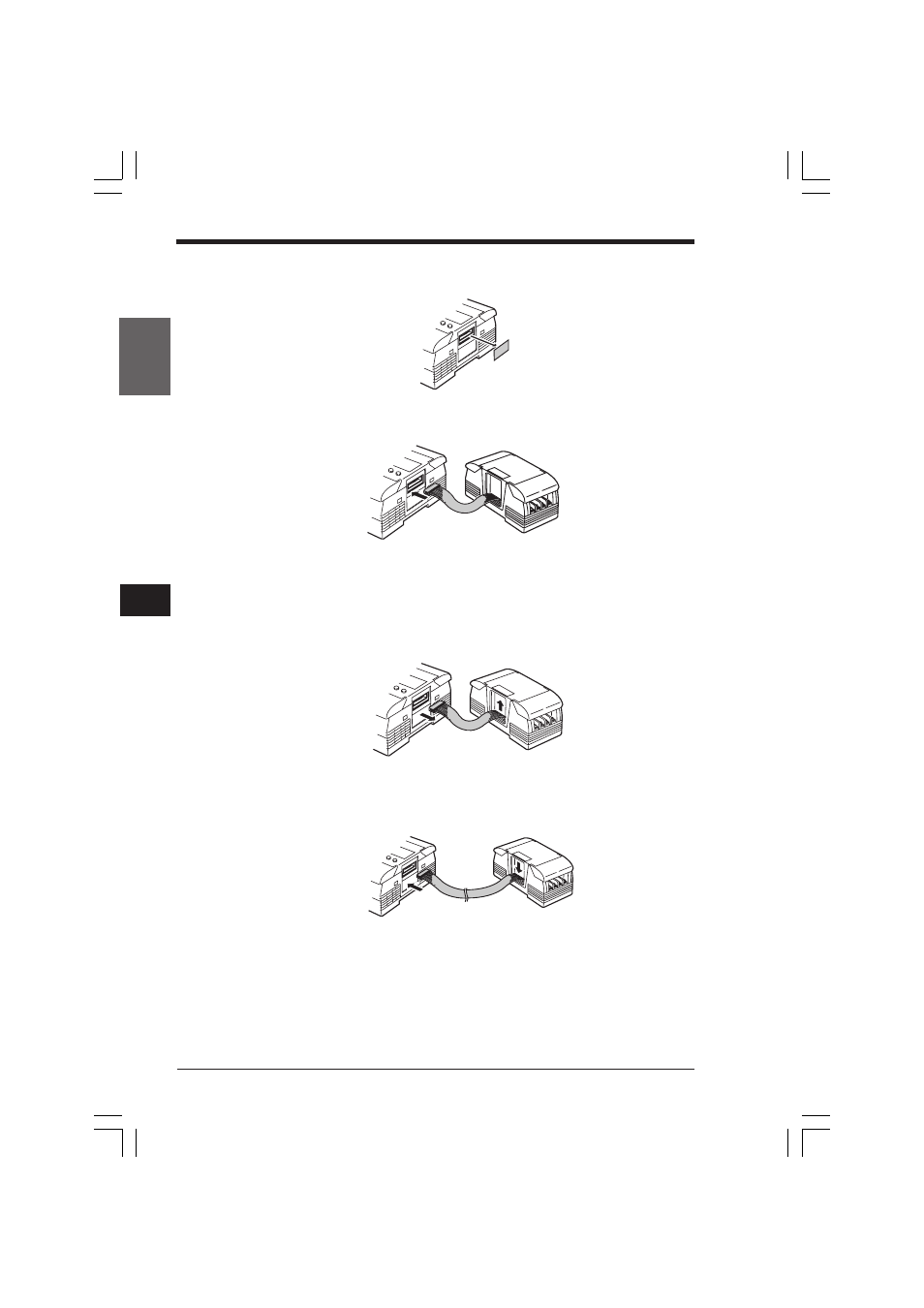

Connection methods
1. Peel off the tape stuck to the right side of the basic unit.
2. Connect an expansion cable to the connector.
■ When extending a cable
Replace a standard expansion cable (60 mm) with an optional expansion cable (300
mm) (OP-35361).
1. Disconnect the standard expansion cable from the expansion unit connector.
2. Connect an optional expansion cable (300 mm) to the expansion unit connector.
3. Connect the optional expansion cable (300 mm) to the basic unit connector.
2.2 Connecting Visual KV Series Expansion Units
KVHKA Chap 02.p65
08.3.11, 11:11 AM
72
