5.2 Module/Unit Specifications
KV
-300
KV-10/80
5
Chapter 5 KV-300 Hardware
1-174
No. Name Function
1 Communications status Green: Normal communication
indicator (green/orange/red) Orange: ADDRESS setting is incorrect or commu
nication is poor.
Red: KV-R1A I/O distribution module has failed or
transfer path has been disrupted.
2 I/O indicators Indicate I/O status (on KV-R8X/R8T/R8R, LEDs are
arranged in a single row); light when a signal is ON.
3 Cover for relay replacement Open to replace a relay. (KV-R16R/R8R only)
4 I/O terminal block Includes terminals for communication cables and
power supply input.
➮ Refer to connection diagram on page 1-186.
5 ADDRESS setting switch For setting addresses of I/O terminal modules
0–4 ch: Input module addresses
5–9 ch: Output module addresses
6 Input time constant selection For selecting input time constant (KV-R16X/R8X
switch only). Choose between the following:
0 ms
1 ms 10 ms
25 µs ±20% 1 ms ±20% 10 ms ±20%
7 Error hold switch Holds output when an error occurs.
(KV-R16R/R16T/R8R/R8T only)
CLEAR: Turns all outputs OFF when an error
occurs.
HOLD: Holds output when an error occurs.
Note: Use ADDRESS setting switches 0 to 4 for I/O terminal input modules and
switches 5 to 9 for I/O terminal output modules.
An incorrect ADDRESS setting will cause a communication error.
Use only the specified cable when connecting to terminal modules. Use of
any other cable may cause communication errors.
CAUTION
0 1
2
3
4 DO T
E
S
E L
C
N'
T
RESPONSE
6
7
8
9
5
CLEAR HOLD
ADDRESS ERROR MODE
0ms 1ms 10ms
DO T
E
S
E L
CT
N'
ADDRESS
1. Communications
status indicator 2. I/O indicator
3. Cover for relay replacement (R16R and R8R only)
KV-R16X/R16R/R16T KV-R8X/R8R/R8T
4. I/O terminal block
KV-R16X/R8X (input module) KV-R16R/R16T/R8R/R8T (output module)
Left side
view
5. ADDRESS setting switch
6. Input time constant selection switch 7. Error hold switch
5. ADDRESS setting switch
1. Communica-
tions status
indicator 2. I/O indicator

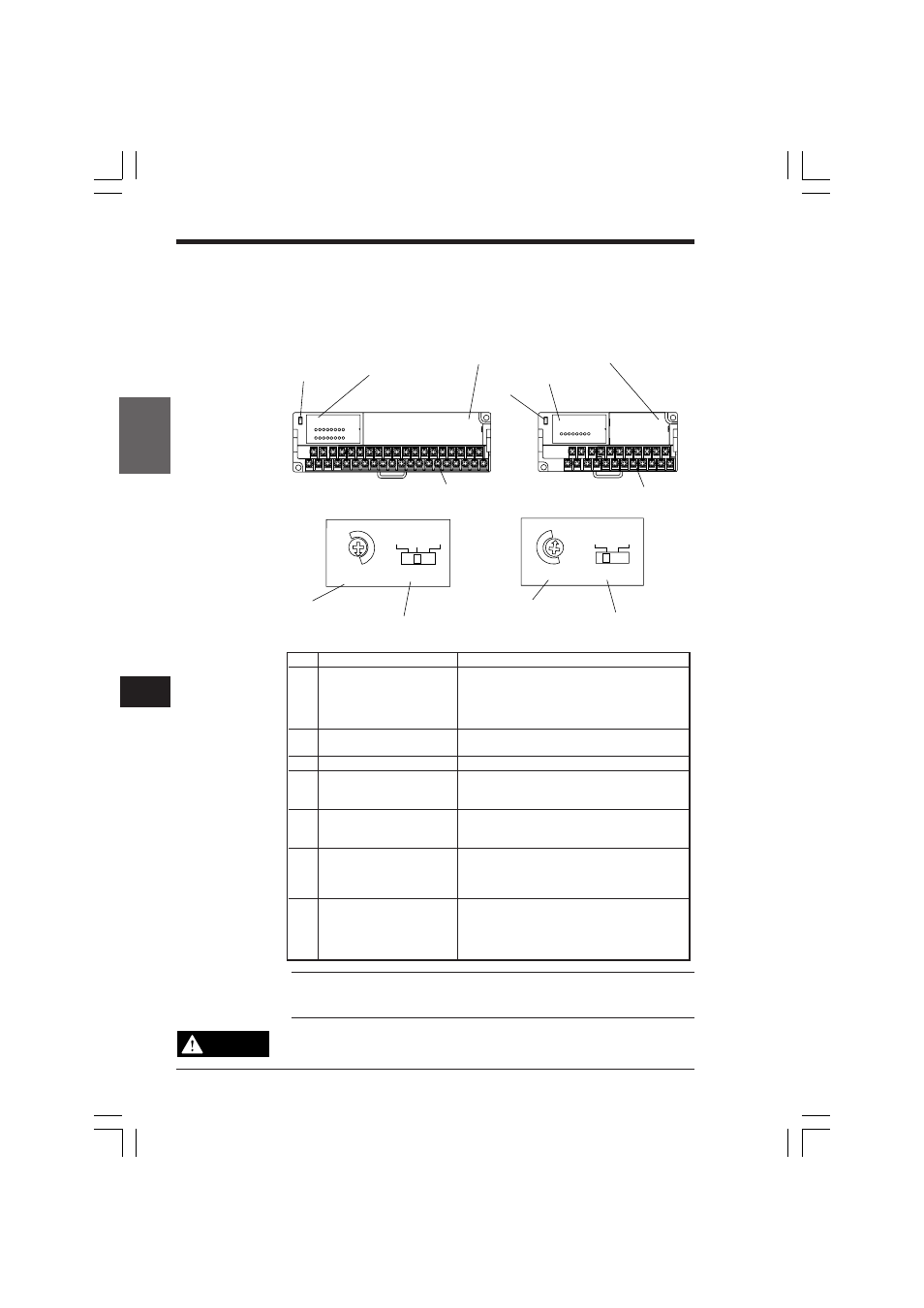

5.2.7 Wiring: KV-R8X/R16X/R8R/R16R/R8T/R16T I/O Terminal
Modules
Parts and functions
Left side
view
