4.2 Overview and Operation

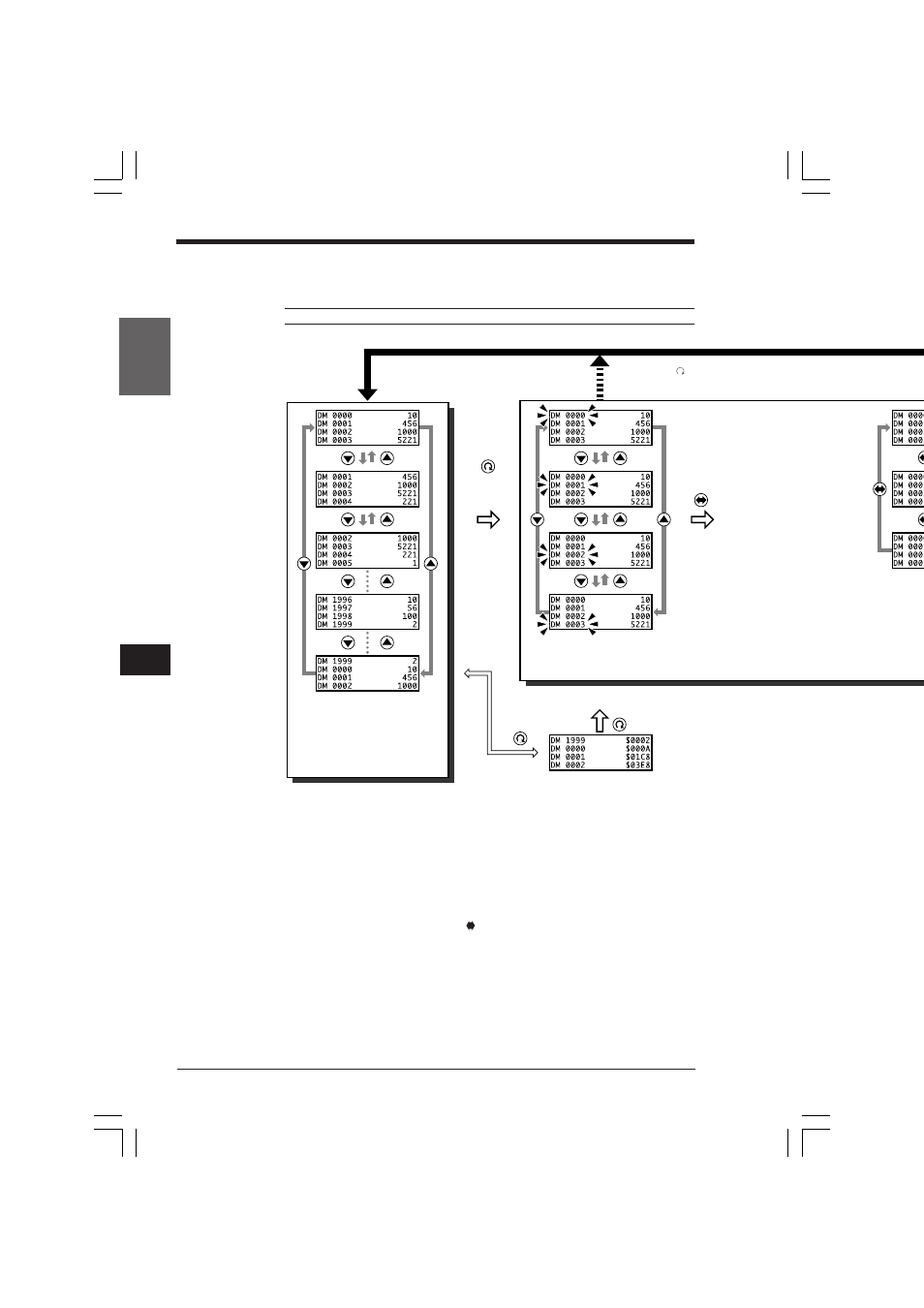

Operation example for device mode
The following is an example of the operation to change the value of data memory.
Note: The method is the same for other devices.
x
1.5 sec.
Display change between decimal and hexadecimal
(Relays are changed between ON/OFF status and
8-bit ON/OFF indications.)
x1.5 sec.
Numeric value change mode
Press the ▲ or ▼ key to move the flashing line
and select the device to be changed (within a
page).
Normal mode
• Press the ▲ or ▼ key to select the
device number to be displayed.
• The turbo function is available to
increment/decrement the device number.
• The numeric value display is not
displayed while the turbo function is
used.
Canceled when is
pressed or when no key
is pressed for 25 seconds
To select devices, you can scroll the screen faster by holding down the ▲ or ▼ key
(turbo function). However, in the turbo mode the screen does not show values but
shows only device numbers.
Customized switches F1 through F4 and customized lamps 1 through 4 can be used
in all modes.
To lock the display screen, press the and ▲ (▼) keys simultaneously for three
seconds in the normal mode to set/reset the key-lock function.
