5.3 Module/Unit Connections
KV
-300
KV-10/80
1
5
Chapter 5 KV-300 Hardware
1-191

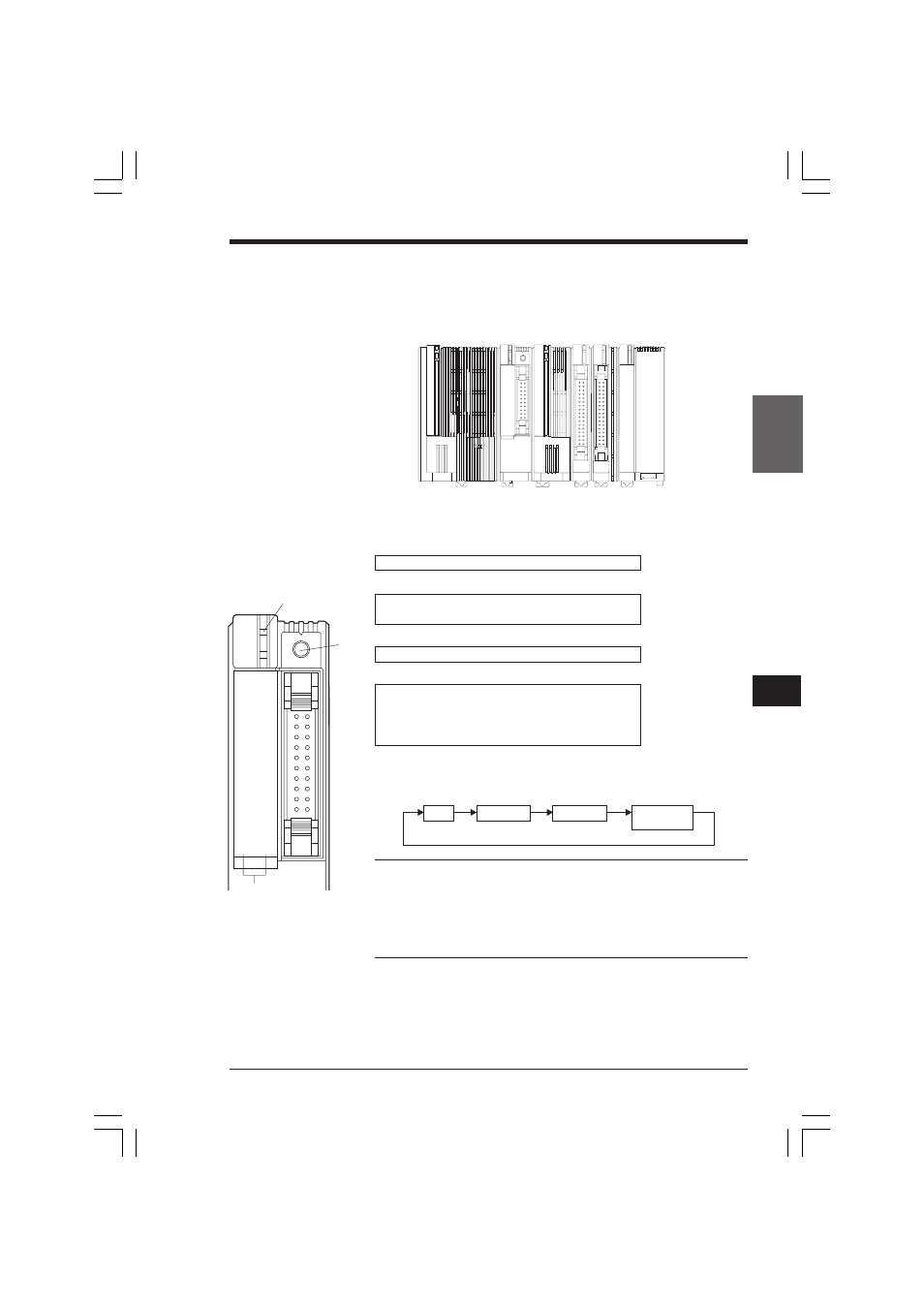

5.3.10 KV-300 CPU I/O Indicators
The KV-300 CPU has the I/O indicators (for 32 I/O ports) described below.
(CPU)
KV-300
KV-U4 KV-R1 KV-C16X KV-C32X KV-B16R
[Selecting module numbers to be indicated.]
Press and hold the SELECT button.
The indicator assigned to the selected module Note1
number lights while pressing
Release the SELECT button.
The ON/OFF information on I/Os of the selected Note2
module number is displayed. The SELECT indicator
of the selected module number flashes.
(The SELECT indicator of the KV-300 CPU lights.)
Every time the SELECT button is pressed, the selected module number is
shifted to the right module After the rightmost module is selected, the next
module to be selected comes to the KV-300.
Note 1: When module number 16 is selected, indicator “0” in line B lights;
when module number 17 is selected, indicator “1” in line B lights.
Note 2: I/O indicator line A corresponds to input ch 0000; line B corresponds
to input ch 0100 when input modules are selected. I/O indicator line A also
corresponds to output ch 0500; line B also corresponds to output ch 0600.
When the KV-300 CPU is selected, 0000 to 0009 are assigned to line A
indicators, and 0500 to 0503 are assigned to line B indicators.
KV-300
CPU Module No.7 Module No.8 Last module
no. connected
→
→→
SELECT
RUN/
ERROR
SELECT
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
A B
SELECT
indicator(green)
SELECT
button
