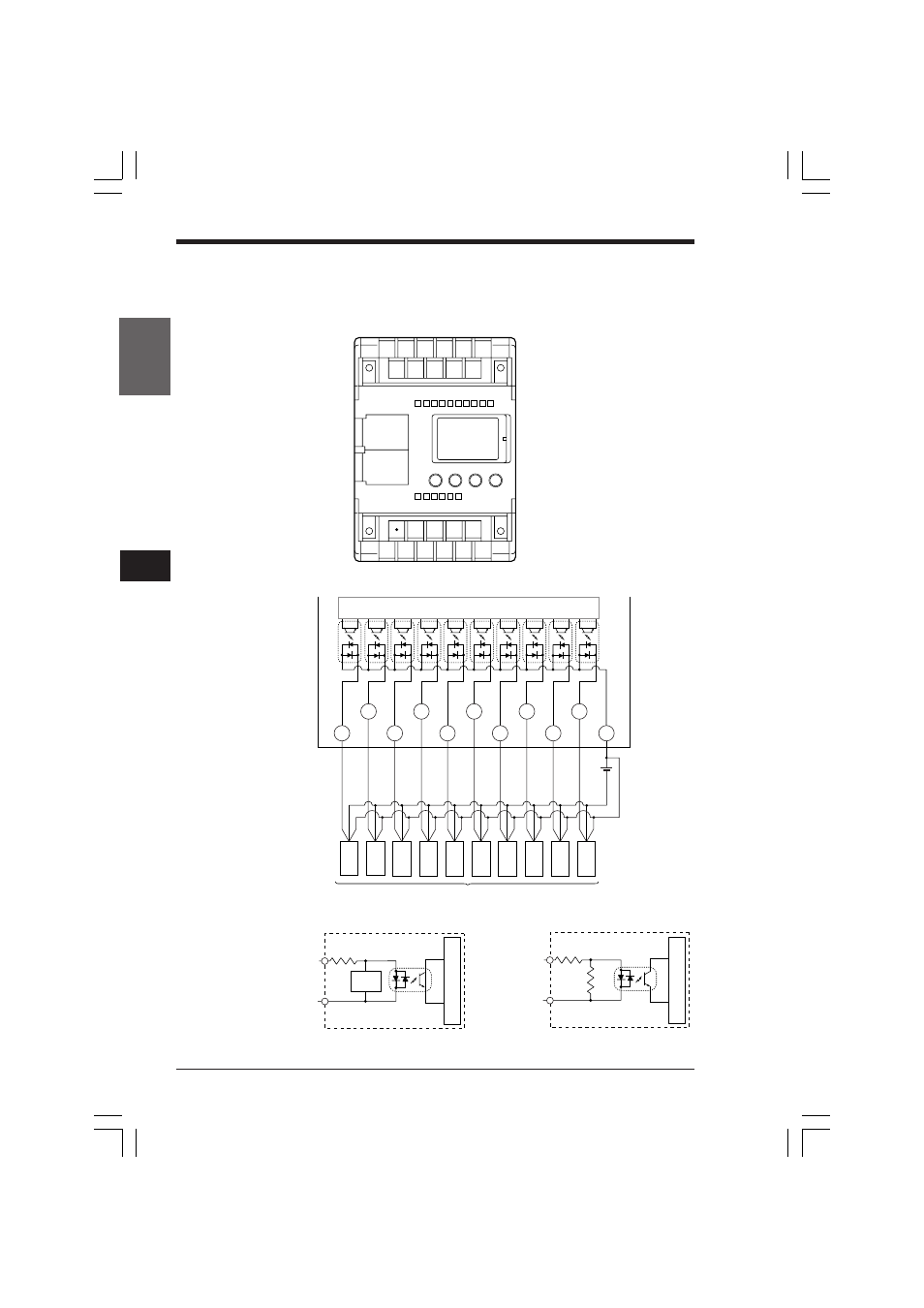

1.5.2 Terminal Layout Drawings and I/O Circuit Diagrams
KV-16AR/DR (Relay output type)
■ Terminal layout drawing
■ Input circuit diagram
C1 001 003 005 007 009
000 002 004 006 008
24V 0V C3 C4 503 505
500 501 502 504
005
006
007
008
009
004 002 000
C1 001 003
Internal circuit
Three-wire
type
Blue
Black Brown
Sensor
Three-wire
type
Blue
Black Brown
Three-wire
type
Blue
Black Brown
Three-wire
type
Blue
Black Brown
Three-wire
type
Blue
Black Brown
Three-wire
type
Blue
Black Brown
Three-wire
type
Blue
Black Brown
Three-wire
type
Blue
Black Brown
Three-wire
type
Blue
Black Brown
Three-wire
type
Blue
Black Brown
000 to 007
C1
4.3KΩ
008 to 009
C1
4.3KΩ
510Ω
Circuit configuration of inputs 000 to 007
Photocoupler
insulation
24V/5V
selector
circuit
Internal circuit
Circuit configuration of inputs 008 to 009
Photocoupler
insulation
Internal circuit
1.5 KV-16AR/AT(P)/DR/DT(P) (16-I/O Basic Unit)
