8.3 Installation KV-300 Series Only
KV
-300
KV-10/80
Chapter 8 KV-AN6 Analog I/O Module
1-315
1
8
8.3 Installation

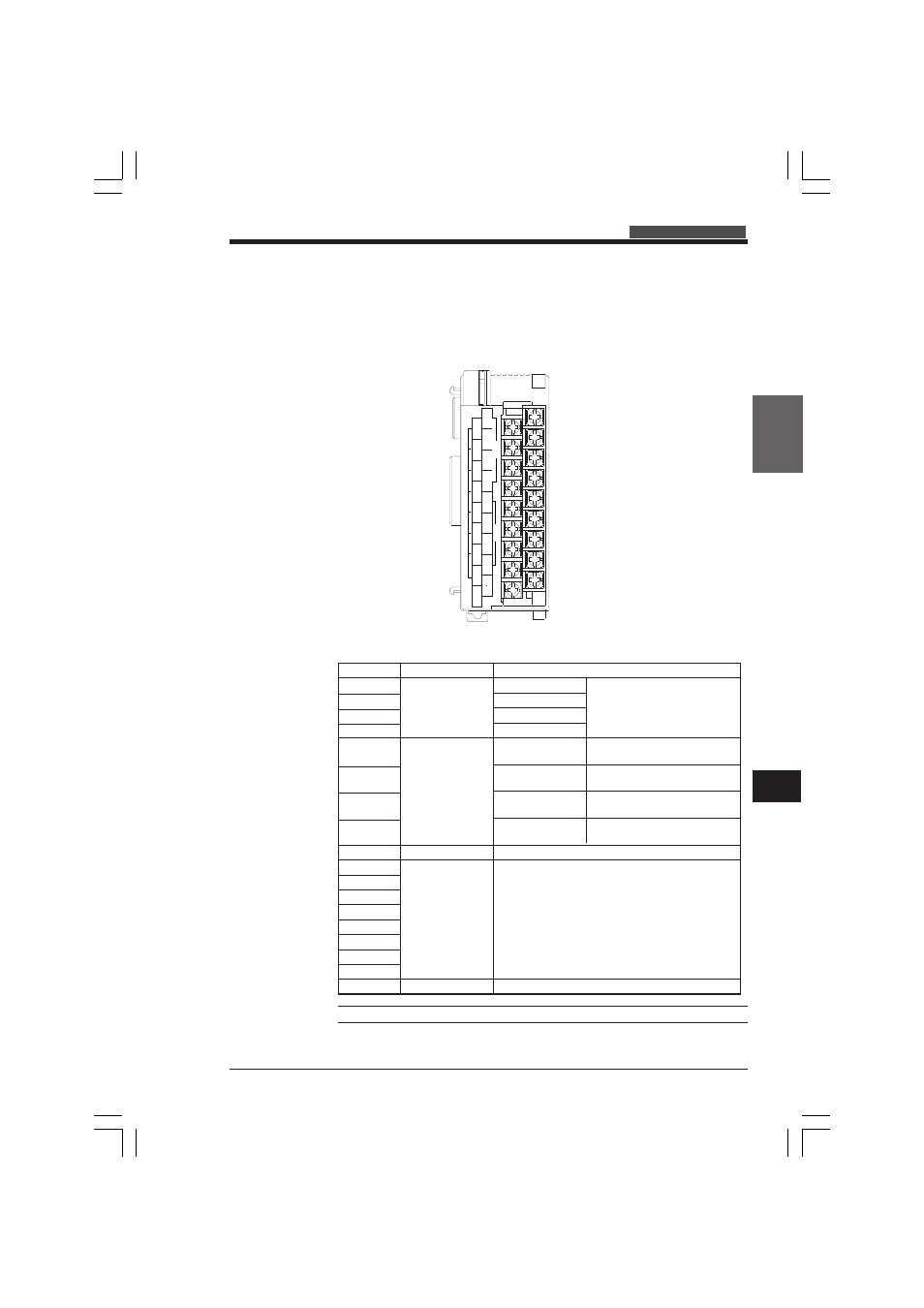

8.3.1 Terminal Nos.
The following signals are assigned to the terminal nos. of the KV-AN6.
KV-AN6
Signals
Note: Voltage output and current output can be used simultaneously.
0
1
2
3
V4
I4
V5
I5
C0
C1
C2
C3
C4
C5
C6
C7
F.G.
D
/
A
A
/
D
Terminal No. Description Assigned signal
0 A/D Analog input ch. 0 (±10 V, ±5 V, 0 to 20 mA)
Input range is slide-switch
selectable.
1 Analog input ch. 1
2 Analog input ch. 2
3 Analog input ch. 3
V4 D/A Analog voltage
output ch. 4 (±10 V, ±5 V) Input range is
slide-switch selectable.
I4 Analog current
output ch. 4 4 to 20 mA output range
V5 Analog voltage
output ch. 5 (±10 V, ±5 V) Input range is
slide-switch selectable.
I5 Analog current
output ch. 5 4 to 20 mA output range
. Not used NC
C0
C1
C2
C3
C4
C5
C6
C7
F.G.
Analog GND (common)
Frame ground
