KEYENCE Visual KV Series - Manual (Page 360)

9.2 Configuration KV-10/80 Series Only
KV
-300
KV-10/80
Chapter 9 KV-AD4/DA4 Analog I/O Unit 1-336
9
Lights red when power is being supplied.
Terminal for connecting to external instruments that are
used as the voltage output destination.
No.
Terminal for connecting to external instruments that are
used as the current output destination.
POWER indicator
Voltage output
terminal block
Name Function
Current output
terminal block
1
2
3
Note: A terminal for connecting external instruments is called a "channel." This are
sometimes abbreviated to "ch." Only one external instrument is terminal connected
to a single channel.
Do not simultaneously connect the current and voltage of the same channel
(V0 and I0,V1 and I1,V2 and I2,V3 and I3) to external instruments. Doing so
might cause the KV-DA4 to malfunction.
KV-DA4

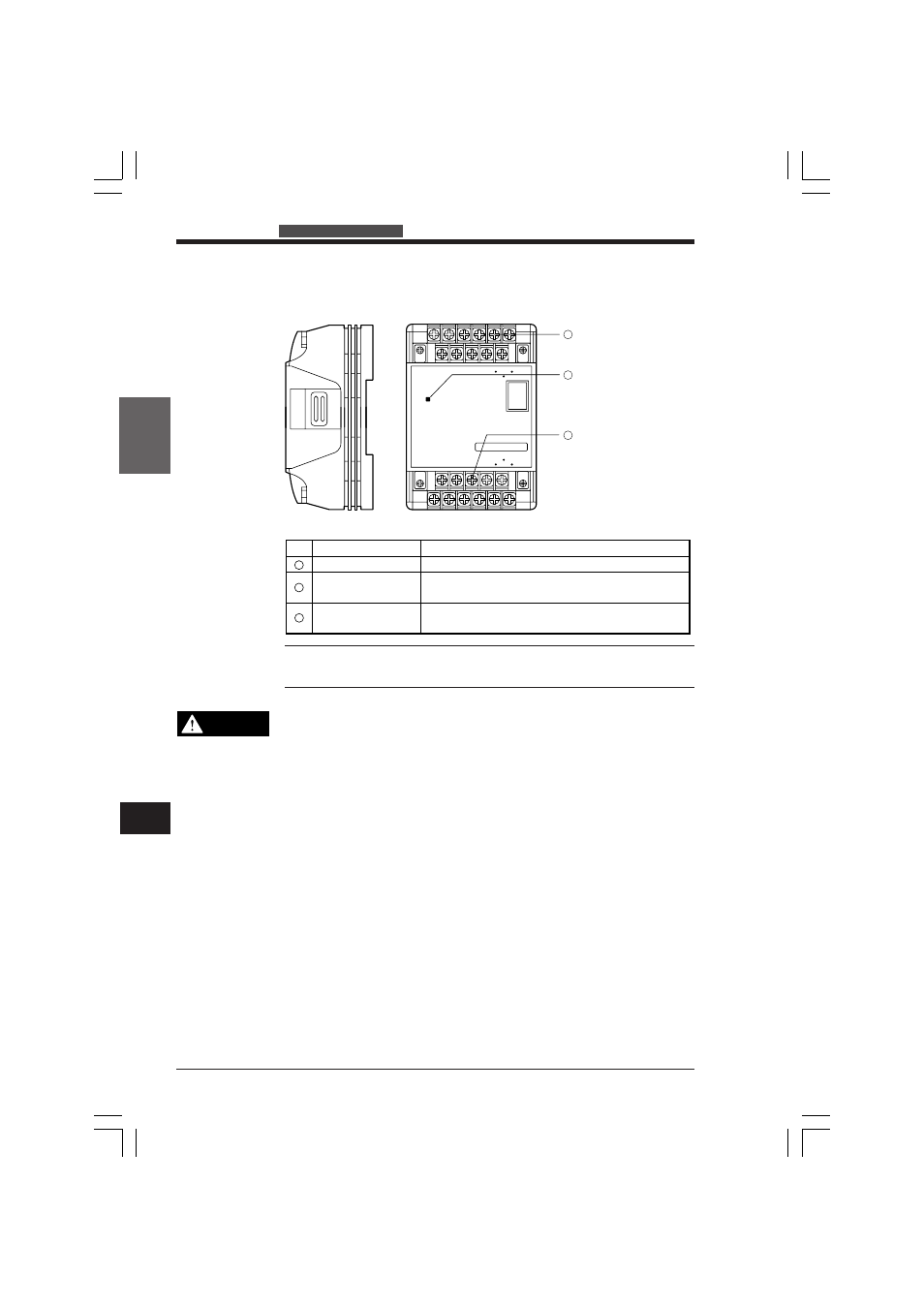

The following describes the names and functions of parts on the KV-DA4.
CAUTION
C0 C1 C2 C3
C4 C5 C6 C7
V0 V1 V2 V3
I0 I1 I2 I3
ANALOG OUT
KEYENCE
KV - DA4
POWER
* Protective cover is attached
at purchase.
* Protective cover is attached
at purchase.
Voltage output terminal block 2
POWER indicator 1
Current output terminal block 3
