Chapter 1 Configuration and Specifications
1-2
1
Visual KV
Series
1.1 System Configuration
This section describes the Visual KV Series system configuration and each unit
type.

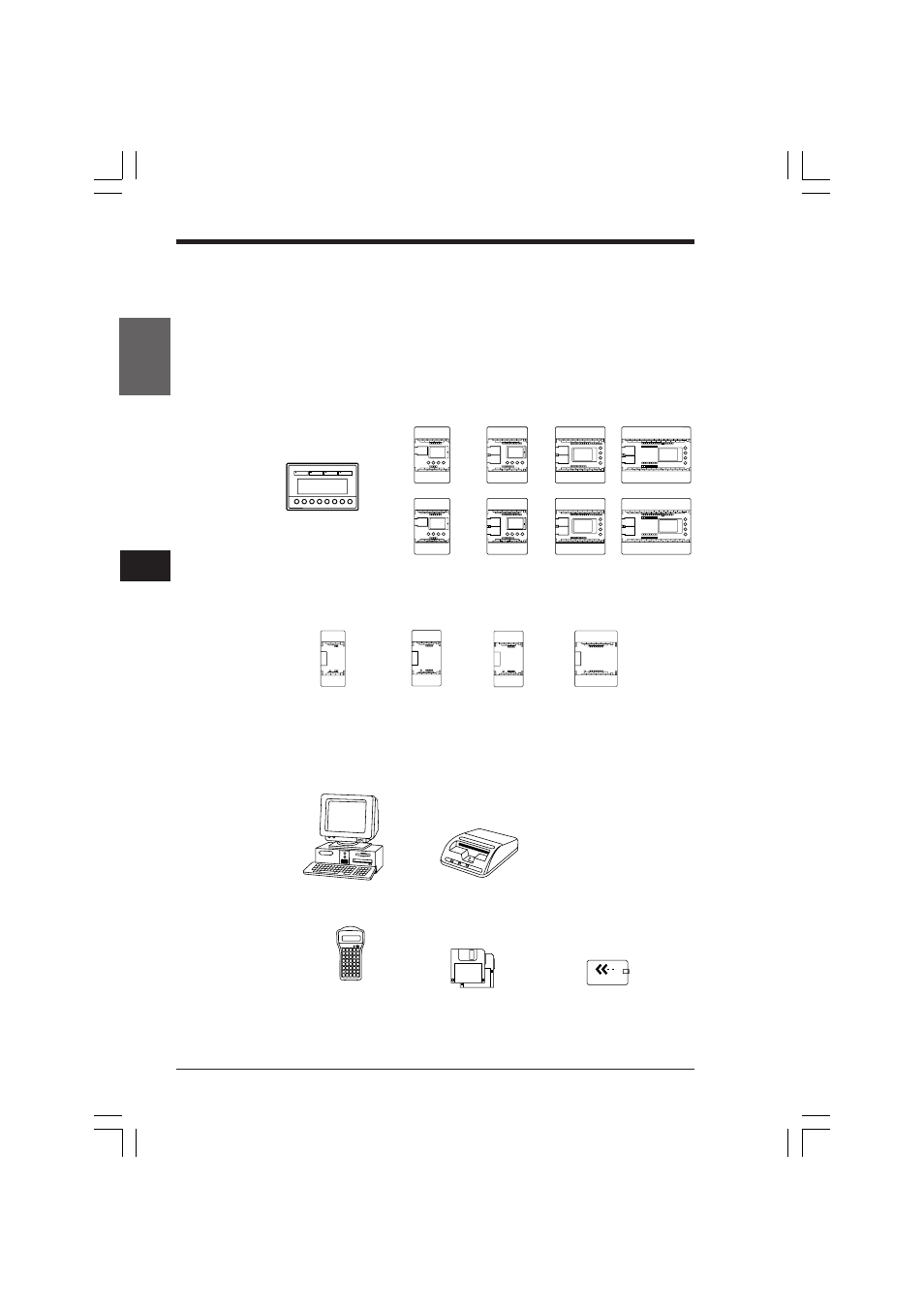

1.1.1 System Configuration
The Visual KV Series system has the following configuration.
■ Basic units: 16 types
■ Expansion units: 11 types
➮ For more about expanding the system by connecting expansion units, refer to "Connecting Visual KV
Series Expansion Units" (p.1-71).
■ Conventional KV Series peripheral units
KV-40AR/40AT(P)
KV-D20
KV-10AR/10AT(P) KV-16AR/16AT(P) KV-24AR/24AT(P)
KV-40DR/40DT(P) KV-10DR/10DT(P) KV-16DR/16DT(P) KV-24DR/24DT(P)
Operator
interface panel
AC power
type
10-I/O basic unit 16-I/O basic unit 24-I/O basic unit 40-I/O basic unit
DC power
type
KV-E4X/
E4R/E4T
KV-E4XR/E4XT(P) KV-E8X/
E8R/E8T(P)
KV-E16X
E16R/E16T(P)
4-I/O
expansion unit
8-I/O
expansion I/O unit
8-I/O
expansion unit
16-I/O
expansion unit
1.1 System Configuration
Personal computer
IBM PC/AT or
compatible machine Z-1 Card reader/writer
* Available for the
KV-H4E only
KV-P3E(01) Handheld
programmer Programming support software
KV-H4E [KV IncrediWare (DOS)]
KV-H6WE2
(LADDER BUILDER for KV Ver.1.5) M2/M3 Memory card
