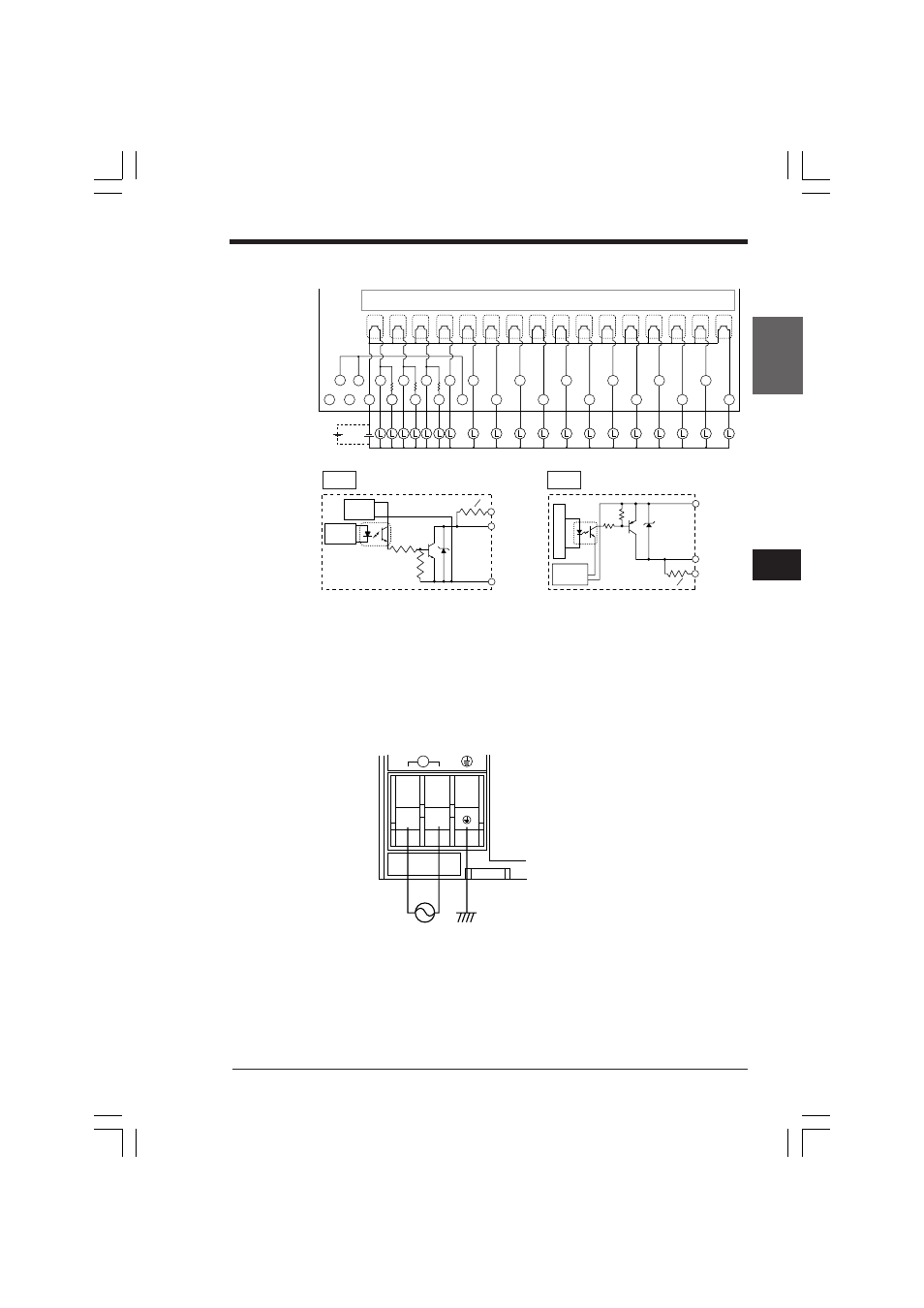

■ Output circuit diagram
1.7.3 AC Power Input (KV-40AR/AT(P))
Internal circuit
500
to 515
C3
R500
to R502 1.6 kΩ W 1 2 Insulating
power
supply
• A 1.6 kΩ current limiting resistor is built in each
of R500 to R502 (to connect a motor driver).
• V1 to V3 are short-circuited inside (so they can
be used as a relay terminal block).
Internal
circuit
L
AC100V-240V
0.7A 50/60Hz
FG
N
L ~ N
1.7 KV-40AR/AT(P)/DR/DT(P) (40-I/O Basic Unit)
* For KV-40ATP/DTP
PNP NPN
Insultating
power
supply
Internal circuit
500 to 515
C3
R500 to R502
1.6 kΩ W 1 2
• A 1.6 kΩ current limiting resistor is built in each
of R500 to R502 (to connect a motor driver).
• V1 to V3 are short-circuited inside (so they can
be used as a relay terminal block).
