5.1 System Configuration
KV
-300
KV-10/80
1
5
Chapter 5 KV-300 Hardware
1-167

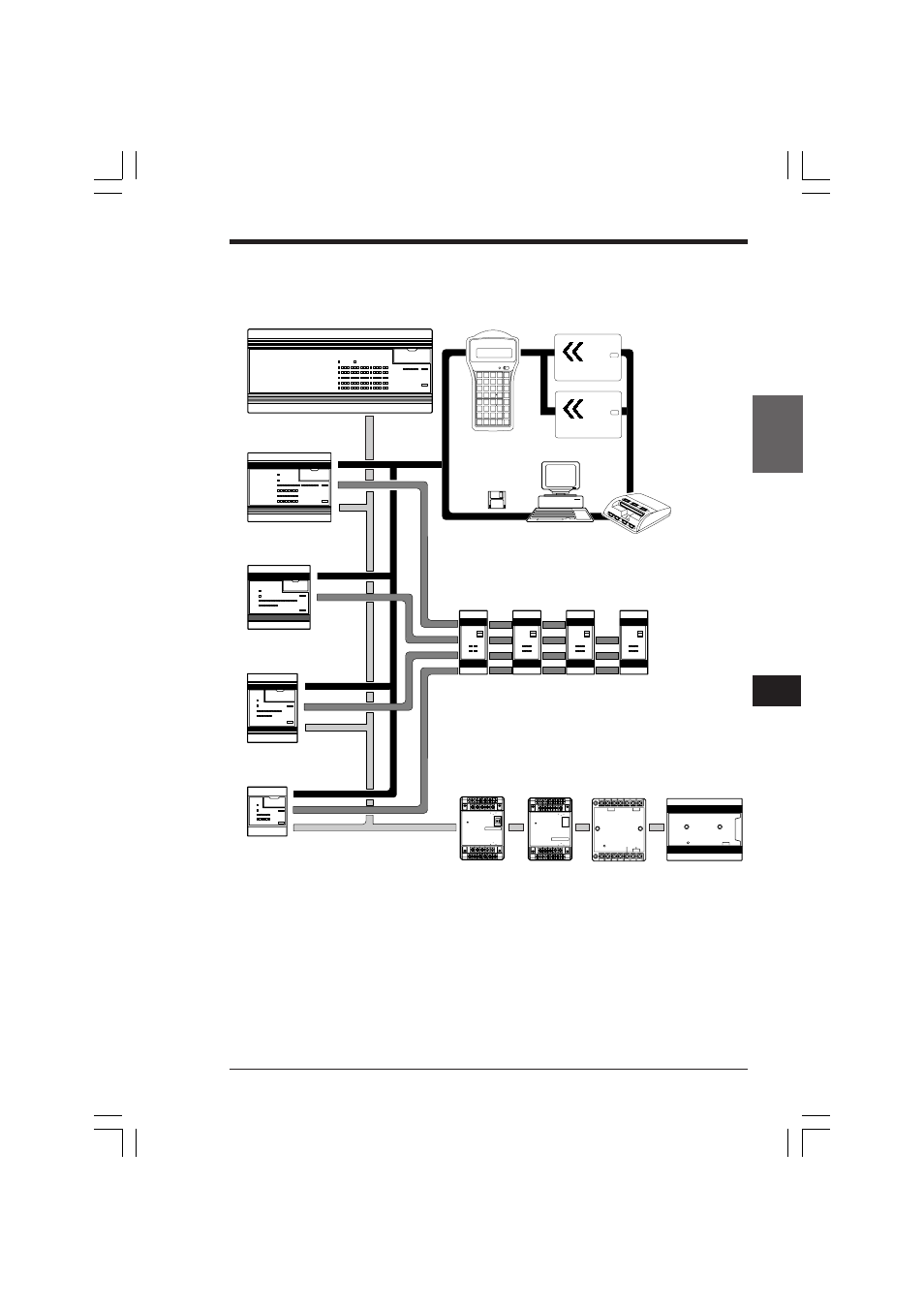

5.1.2 KV-10/80
KV-40R(W)/40T(2W)
KV-80R(W)/80T(W)
KV-24R(W)/24T(2W)
KV-10R(W)/10T(2W)
KV16R(W)/16T(2W)
MEMORY CARD 32K
MEMORY CARD 128K
Expansion units
(separate power supply not required)
Handheld programmer
KV-P3E(01)
Meomory card M-2
Meomory card M-3
Programming
Support
Software
KV-H6WE2 (Windows)
KV-H4E (DOS)
Card reader/writer Z-1
(Note: DOS only)
KV-8ER(W)/8ET(2W), 8EX(W), 8EYR(W)/8EYT(2W),
16EX(W), 16EYR(W)/16EYT(2W)
Power supply
KV-U2
Up to 3 expansion units can be connected to the
KV-40, and up to 4 units to the other models.
IBM PC/AT
or compatibles
Only one KV-AD4 or DA4
can be connected.
Analog I/O units
KV-AD4
KV-DA4
C0 C1 C2 C3
C4 C5 C6 C7
V0 V1 V2 V3
I0 I1 I2 I3
ANALOG IN
POWER
KEYENCE KV - AD4
C0 C1 C2 C3
C4 C5 C6 C7
V0 V1 V2 V3
I0 I1 I2 I3
ANALOG OUT
KEYENCE KV - DA4
POWER
KV-U3
