6. INSTRUCTION/OPERAND keys
Enter instruction or operand.
The KV-P3E(01) determines whether to enter an instruction or operand depend-
ing on the cursor position. Therefore, no additional operation is required by the
operator.
Example
Note 1: Programs entered with the KV-P3E(01) are written into the KV-P3E(01)s
RAM and are not directly written into the KV PLC. Hence, when the power switch is
turned OFF, the programs in the KV-P3E(01) RAM are lost. To save the program
currently created, write it to a memory card or complete the program and transfer it
to the KV PLC. (If an error message appears, programs cannot be transferred.
Correct the communication circuit and retry the transfer.)
Note 2: The KV-P3E(01), which can be used with the Visual KV Series, is the model
released on or after October 21st, 1993.
7. Connector cable port
Accommodates a cable connector that connects this programmer to any KV-
series PLC.
8. Memory card slot
Accommodates memory card (M-2 or M-3). To avoid malfunction of the program-
mer, do not insert anything other than these cards.
6.1.2 Precautions
• This handheld programmer can be connected to or disconnected from the PLC
regardless of whether the KV is ON or OFF.
• The handheld programmer can be connected to either communication port A or
B. However, two handheld programmers cannot be connected at the same time.
• To disconnect the handheld programmer after the operation has started, be sure
to leave the mode switch set to RUN. This allows the operation to continue.
END
DM
Instruction:
Enters END instruction.
Numeric:
Keys # and $ indicate decimal and
hex numbers respectively.

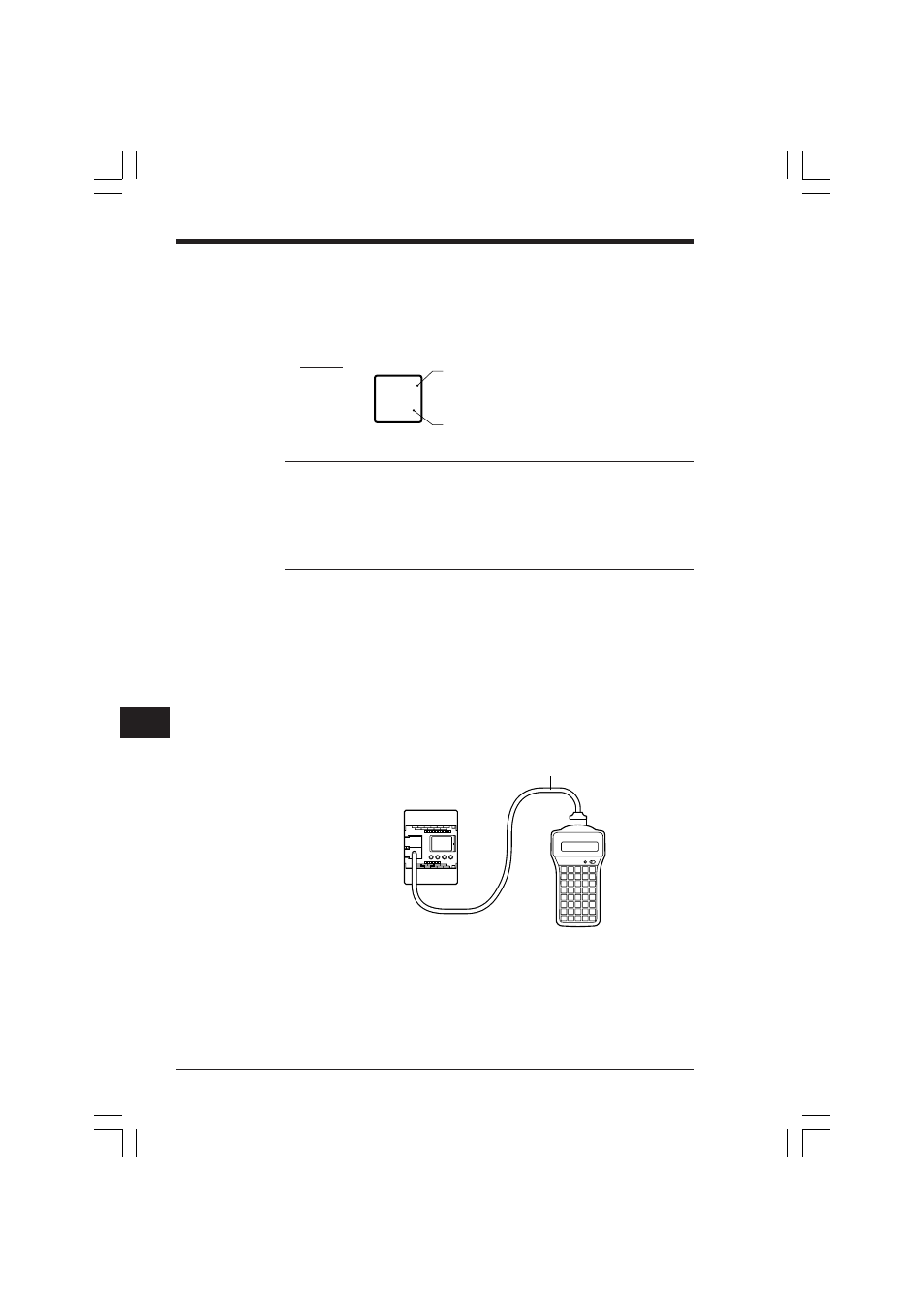

Open the connector
cover and plug in
the connector.
Connector cable (2.5 m)
OP-26487
