Appendix B Specifications and Dimensions KV-300 Series
Appendicies
Appendices
1-400

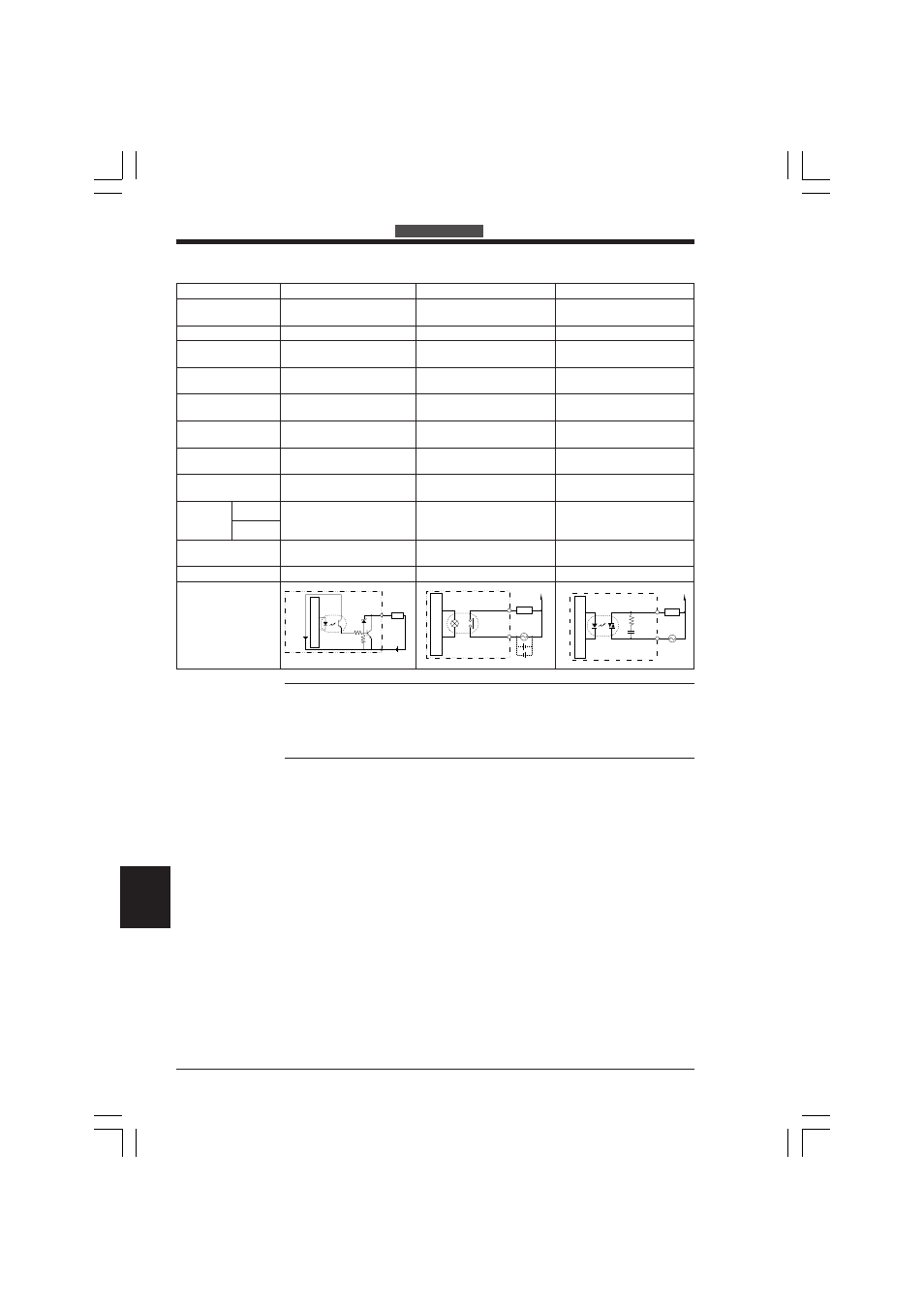

KV-C32T/B16R/B16S Output Modules
Model KV-C32T (32) KV-B16R (16) KV-B16S (16)
Connection to Connector Removable terminal block Removable terminal block
external unit (conforms to MIL Standard)
Type of output Transistor (NPN) Relay Triac
Rated load 30 VDC 0.2 A 250 VAC/30 VDC 2 A 250 VAC 0.3 A
(8 A per common) (1.2 A per common)
Peak load – 5 A 20 A
overcurrent
Maximum leakage 100 µA – 2 mA
current at OFF
Maximum residual 0.5 V – –
voltage at ON
Maximum – 50 mΩ –
resistance at ON
Common ground 32 I/O per common terminal 8 I/O per common terminal 8 I/O per common terminal
(*1) (2 terminals) (2 terminals)
OFF →ON 10 µs 1/2 cycle + 2 ms
10 ms (50 Hz) 12 ms
ON →OFF 100 µs (60 Hz) 10.3 ms
Maximum current 55 mA 150 mA 85 mA
consumption
Approximate weight 70 g 200 g 200 g
Circuit structure
Load
COM
OUT
Photocoupler
insulator
+
+
Internal circuit
Insulating
power
supply COM
OUT
+
+
Internal circuit
Load Load
COM
OUT
Internal circuit
Note 1: (*1) The KV-C32T has 2 COMs that are common within the module.
Note 2: Relay service life:
Mechanical: 20 million operations minimum
Electrical: 100,000 operations minimum (20 times/min)
Note 3: Relays are not replaceable.
Maximum
switching
time
