8.1 Outline KV-300 Series Only
KV
-300
KV-10/80
Chapter 8 KV-AN6 Analog I/O Module
1-312
8
8.1 Outline
Features
The KV-AN6 has both A/D and D/A conversion functions. The A/D conversion
function converts analog input to digital data and stores the converted data in the
KV-300 CPU; the D/A conversion function converts digital data stored in the KV-300
CPU to analog output data for output devices.
A/D converter
Converts analog input to 16-bit binary data (digital data). (The effective bits are the
12 bits starting from the most significant digit.)
Three input ranges can be selected with a slide switch: -10 to +10 V (voltage), -5 to
+5 V (voltage), and 0 to 20 mA (current).
Each KV-AN6 module has 4 input channels.
D/A converter
Converts 16-bit binary data (digital data) to analog output. (The effective bits are the
12 bits starting from the most significant digit.)
Three output ranges can be selected with a slide switch: -10 to +10 V (voltage), -5 to
+5 V (voltage), and 4 to 20 mA (current).
Each KV-AN6 module has two output channels.

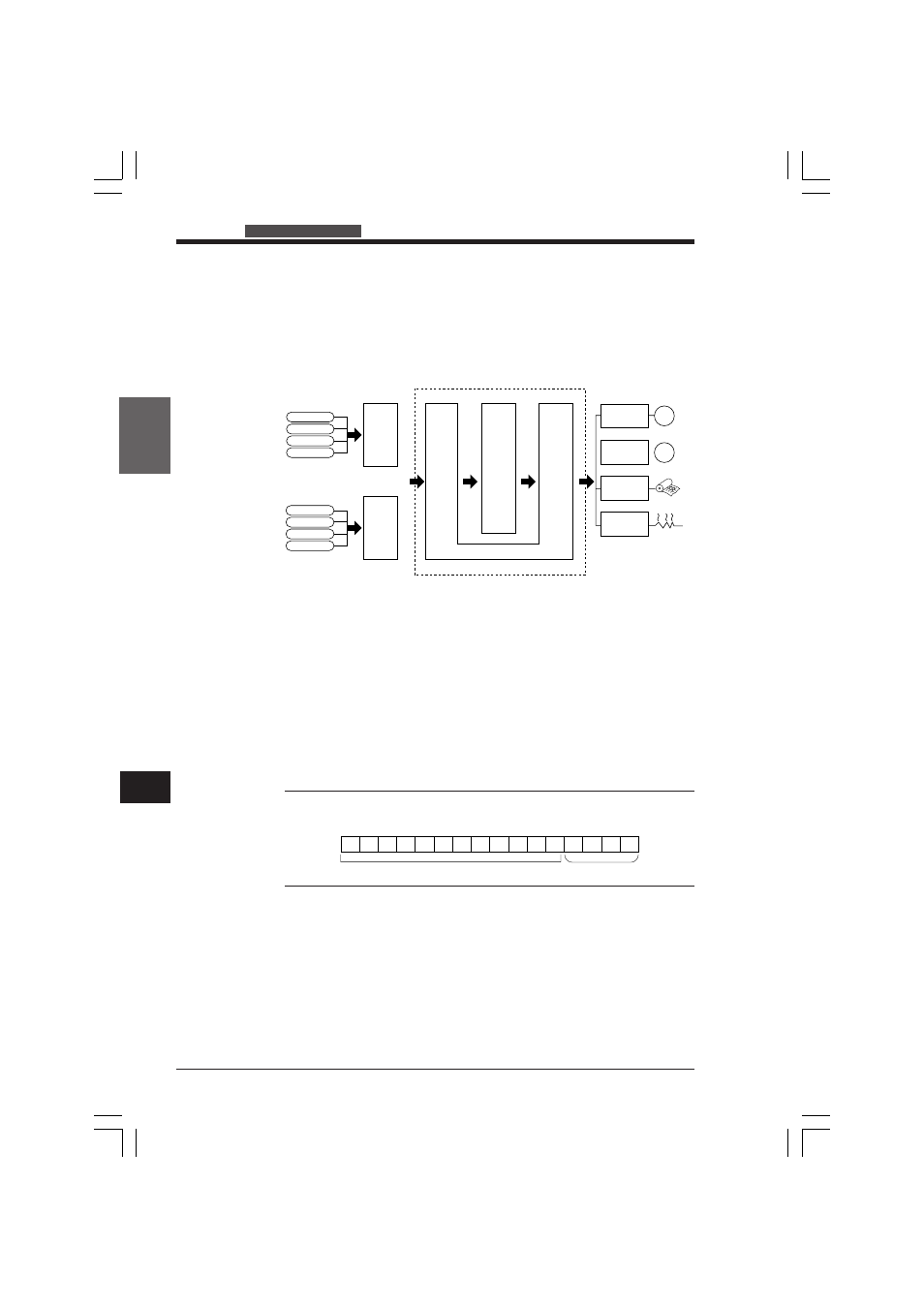

Note: As shown below, 12 bits of the 16-bit binary data, starting from the most
significant digit, are effective.
(4ch)
± 10V
± 5V
0 to 20mA
KV-AN6
M
M
Temperature
Pressure
Flow rate
Speed
Transducer
Preampifier
A/D
convertor
KV-300
CPU
12 bits 12 bits
Temperature control
Inverter
Servo
controller
Temperature
recorder
Analog
regulator
Speed control motor
Position control motor
Voltage
Current
Power
Power factor
D/A
convertor
(2ch)
± 10V
± 5V
4 to 20mA
D15
0
D14
1
D13
1
D12
1
D11
1
D10
1
D09
0
D08
1
D07
0
D06
0
D05
0
D04
0
D03
X
D02
X
D01
X
D00
X
These 12 bits are effective. Undefined
