6.1 Using the Handheld Programmer
The KV-P3E(01) handheld programmer is used not only for creating user programs,
but also for loading them into the KV PLC or switching the KV PLC between RUN
and PROGRAM (stop) mode. It also can be used to monitor PLC operation and
transmit data with a memory card.

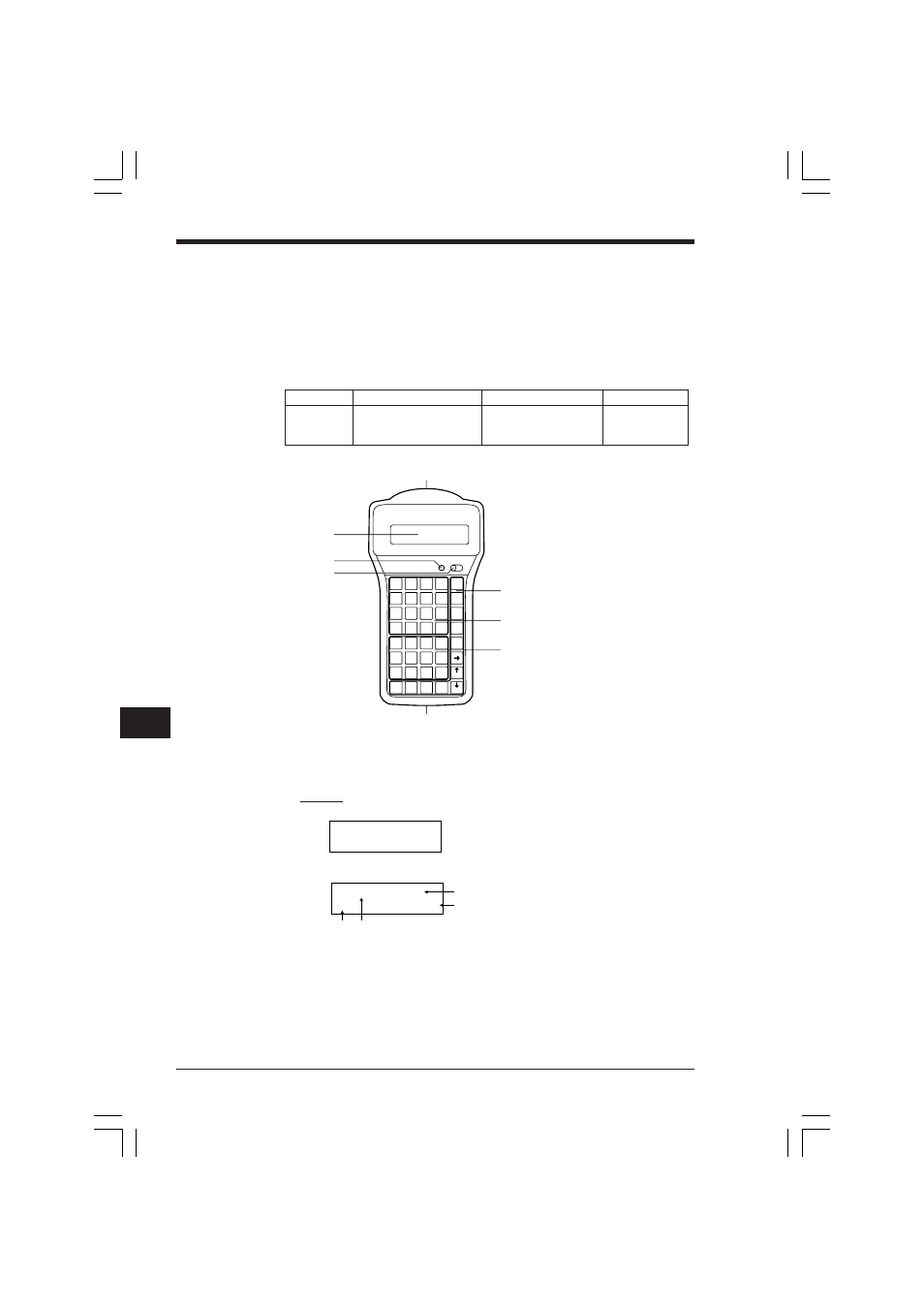

6.1.1 Outline of the Handheld Programmer
Parts and functions
1. LCD
Is back-lit and displays program contents and information such as error mes-
sages.
Example
RUN mode
PROGRAM mode
See the following chapters for more information on the contents of these dis-
plays.
2. Memory card indicator
Lights when this programmer is communicating (using such instructions as
READ, WRITE, DELETE, and VERIFY) with the memory card. Do not pull out the
card while this indicator is lit to be sure that the desired operation is fully
completed. This indicator also lights when a memory card must be inserted in the
slot. Press [CLEAR] to turn it off.
Model Instruction PLC Memory card
KV-P3E(01) All KV-Series PLC instruc- All KV-Series PLCs M-2, M-3
tions (basic, application,
and arithmetic instructions)
R U N . . . . .
0 0 0 0 2 I N S E R T
L D 0 0 0 0 0 Type of operation
Operand
Line No. Instruction
L D
7
LDB
4
SET
1
RES
0
D W
TMR
( T )
CTR
( C )
AND
8
ANB
5
ANL
2
W-ON
F
W-OFF
L i
END
DM
❋
O R
9
ORB
6
ORL
3
W-UE
E
W-DE
L o
ENDH
TM
OUT
A
OUB
B
MPS
C
MRD
D
MPP
c h
ITVL
#TM
@
#,$
FUN
CTC CTH ON
OFF
8
1
2
3
7
6
5
4
