8.3 Installation
KV-300 Series Only
KV
-300
KV-10/80
Chapter 8 KV-AN6 Analog I/O Module
1-316
8
8.3.2
Removing the Terminal Block

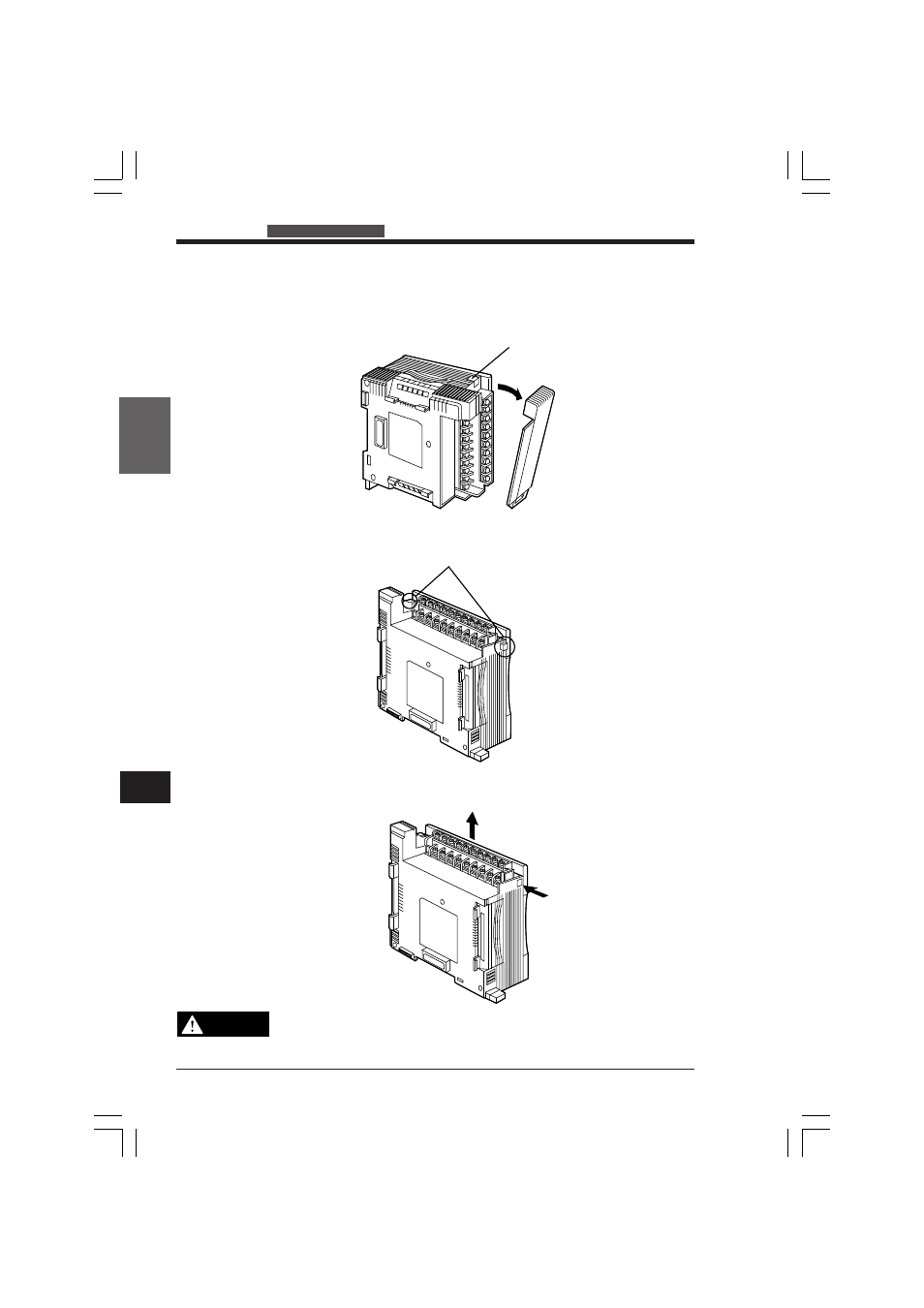

To remove the terminal block from the KV-AN6 module, do the following.
1. Turn OFF the power switch. Open the terminal block cover from the top as
shown below.
2. The terminal block is secured with a lock bar as shown below.
3. Remove the terminal block by pushing the terminal block lock bar to release the
terminal block.
Turn OFF the power switch before removing the terminal block.
Terminal block lock bar
Open
CAUTION
Terminal block lock bar
Remove the terminal block
Push the lock bar
KVHKA Chap 08.p65
08.3.11, 11:19 AM
316
