1.8 KV-E4X/E8X/E16X (Expansion Input Unit)
KV-E16X (16-I/O expansion input unit)

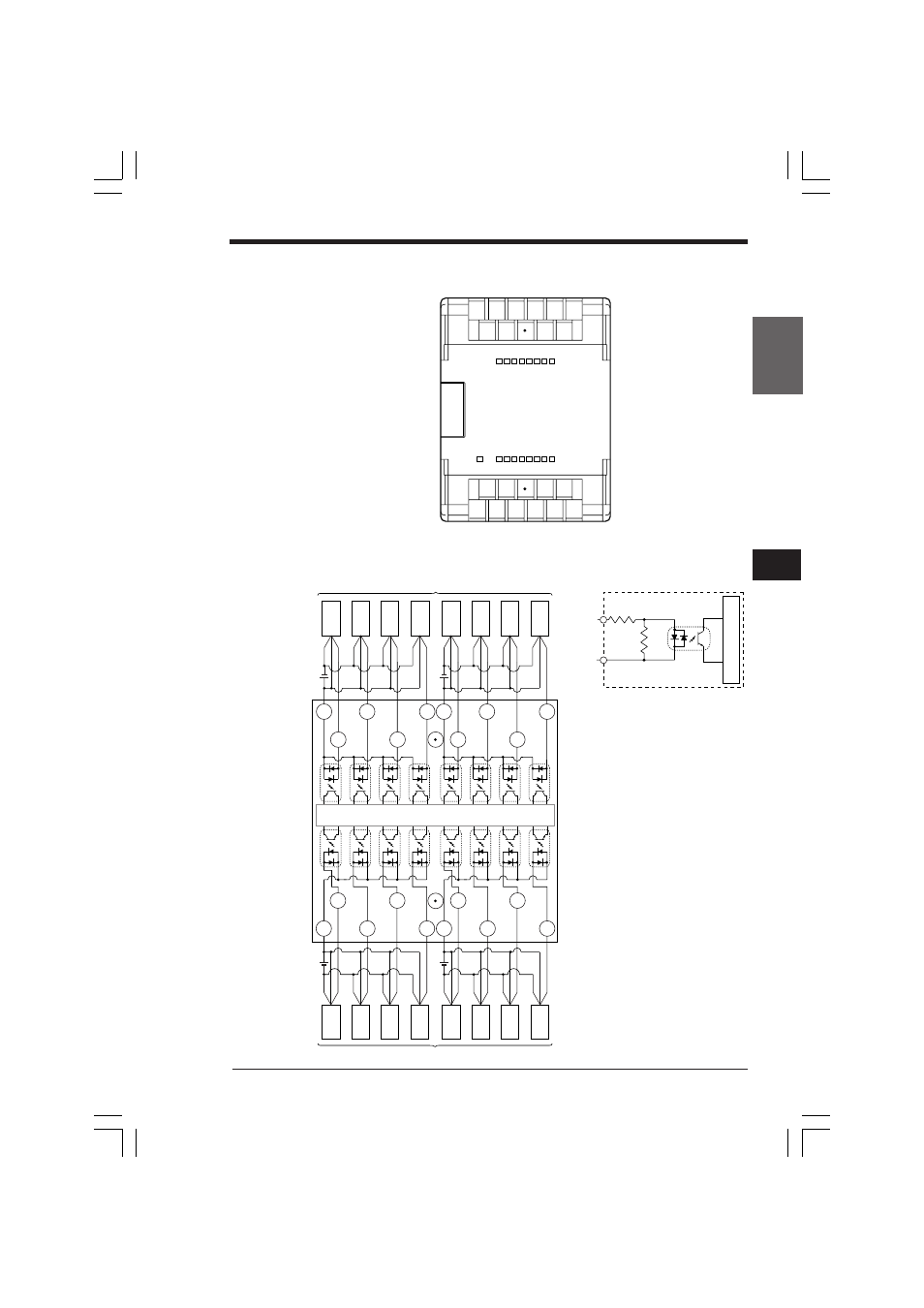

■ Terminal layout drawing
■ Input circuit diagram
C3 9 11 C4 13 15
8 10 12 14
C1 1 3 C2 5 7
0 2 4 6
2
C1 1 3
0 6
C2 5 7
4
10
C3 9 11
8 14
C4 13 15
12
0 to 3
4 to 7
8 to 11
12 to 15
C1
C2
C3
C4
4.3KΩ
510Ω
Photocoupler
insulation
Internal circuit
• C1 to C4 are each independent.
Internal circuit
Three-wire
type
Blue
Black
Brown
Sensor
Three-wire
type
Blue
Black
Brown
Three-wire
type
Blue
Black
Brown
Three-wire
type
Blue
Black
Brown
Three-wire
type
Three-wire
type
Three-wire
type
Three-wire
type
Blue Black
Brown
Blue Black
Brown
Blue Black
Brown
Blue Black
Brown
Sensor
Three-wire
type
Blue Black
Brown
Three-wire
type
Blue Black
Brown
Three-wire
type
Blue Black
Brown
Three-wire
type
Blue Black
Brown
Three-wire
type
Blue
Black
Brown
Three-wire
type
Blue
Black
Brown
Three-wire
type
Blue
Black
Brown
Three-wire
type
Blue
Black
Brown
