5.3 Module/Unit Connections
KV
-300
KV-10/80
5
Chapter 5 KV-300 Hardware
1-178
Upright
Back Side
30 mm
30 mm
30
mm
a
a
b
Power supply
5.3 Module/Unit Connections
5.3.1 Environmental Requirements
Choose an appropriate location for installing the KV Series modules.
■ Avoid the following:
•
Exposure to direct sunlight.
• Exposure to temperatures below 0°C (32°F) or exceeding 50°C (122°F).
• Exposure to humidity below 35%RH or exceeding 85%RH.
• Areas where condensation occurs due to sudden drops in temperature.
• Exposure to corrosive or flammable gases.
• Exposure to airborne dust, metal particles, oil, or corrosive substances such as
salt.
• Exposure to strong vibration or impact.
• Locations where water, oil, or chemicals may splash the product.
• Exposure to strong magnetic or electrical fields.
Use only the specified cable when connecting to terminal modules. Use of any
other cable may cause communication errors.

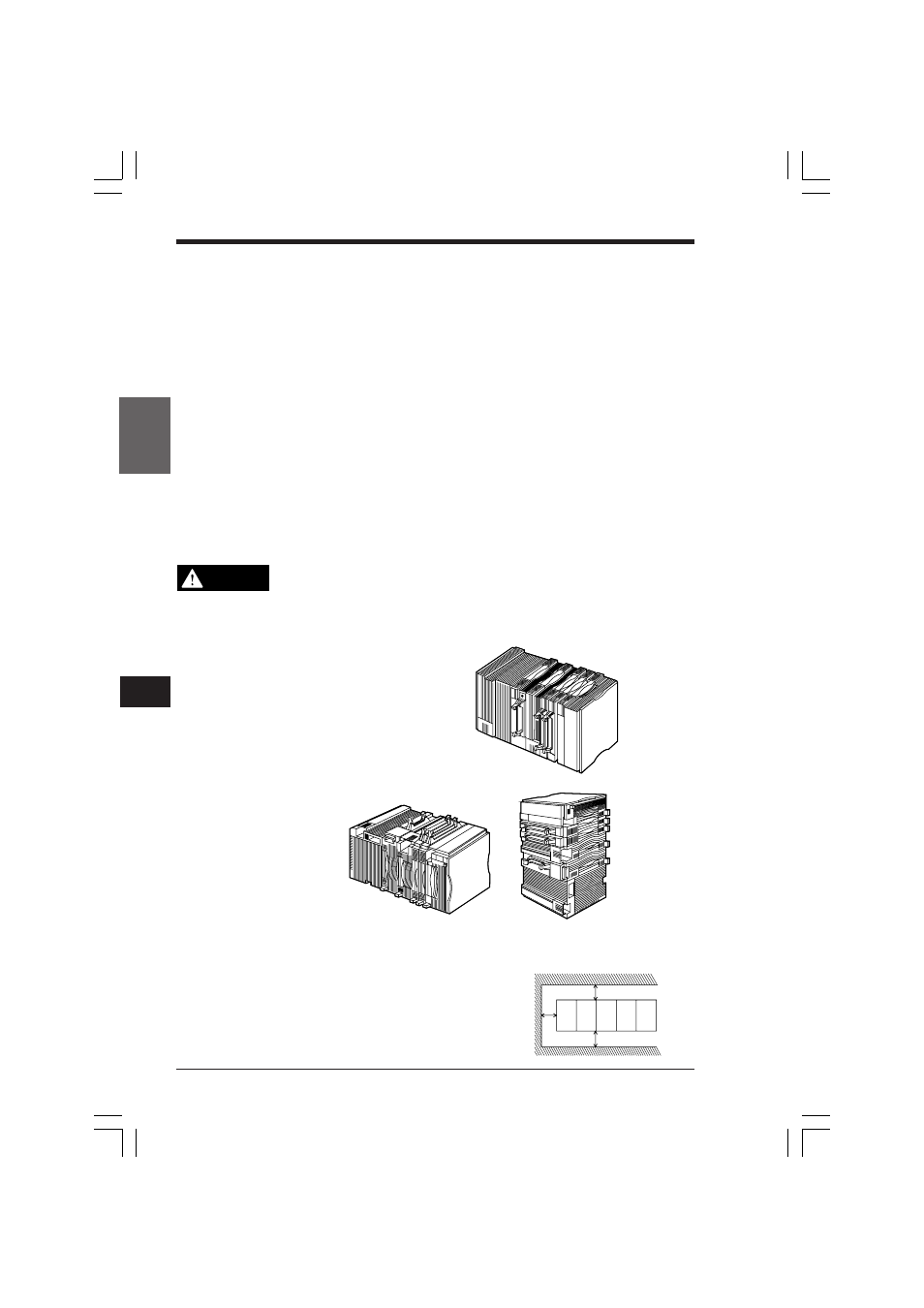

5.3.2 Installation Guidelines
• Install the CPU upright, as shown.
• Do not install the CPU on its back or side.
• Maintain a 30 mm gap above and below the module so that a finger can be
inserted to release the lock lever and remove the module.
• Maintain a 30 mm gap between the module
and adjacent equipment to avoid
interference from the power supply.
CAUTION
