3.2 Basic Operating Procedures
Chapter 3 Access Window 1-82
3
Visual KV
Series

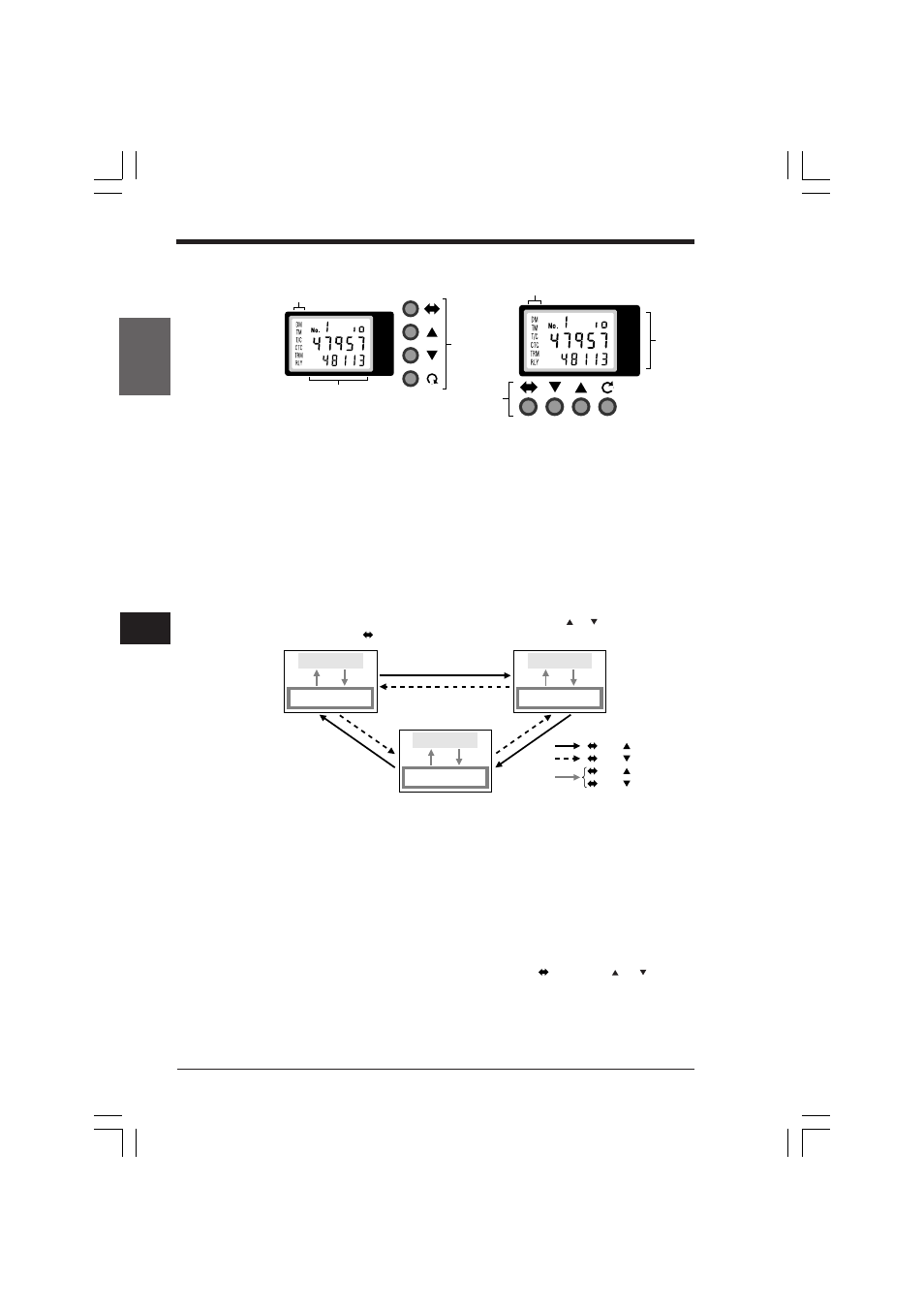

3.2.3 Part Names and Functions of the Access Window
1. Device selector window
Displays the device type currently selected in the device mode.
2. Setting operation keys
Allows you to change the setting in each mode and change the mode from one
mode to another.
The key layout varies depending on the model. (The keys are located under the
LCD in the KV-10xx/16xx, and on the right side of the LCD in the KV-24xx/40xx.)
3. Main display window
Displays the current value and set value for each device and error messages.
3.2.4 Selecting Modes and Setting/Resetting Key Lock
To change the mode and set/reset the key lock, press the or key while pressing
and holding the
key.
• Even while the key lock is being set, the mode can still be changed. However,
numeric values (current values, set values, and trimmer values) cannot be
changed. When setting the key lock, "Loc" is displayed in the middle line of the
Access Window. While the key lock is being reset, "UnLoc" is displayed. When
the power is turned on, the previous key lock status (set or reset) which was in
effect when the power was previously turned off is automatically set. The initial
status is "unlock (reset)".
• When the unit is shipped, the digital trimmer mode is selected. After the Access
Window is used, the mode effective at power OFF time is automatically set when
the power is next turned on.
• To set (or reset) the key lock, press and hold the key and the (or ) key at
the same time for 3 seconds.
• While the key lock is being set, the mode can be changed and a display device
can be changed. However, numeric values cannot be changed and the setting
cannot be changed when in system mode.
1. Device selector window
2. Setting
operation
keys
KV-24xx/40xx
3. Main display window
1. Device selector window
2. Setting
operation
keys
KV-10xx/16xx
3.Main
display
window
key +
key +
key +
key +
Key lock Key lock
Digital trimmer mode Device mode
Key lock
System mode
key
key
key for 3 secs
key for 3 secs
("+" indicates pressed
simultaneously.)
