Kv-u4 ac power supply module, Kv-u5 dc power distribution module, Kv -300 – KEYENCE Visual KV Series User Manual
Page 206
5.3 Module/Unit Connections
KV
-300
KV-10/80
5
Chapter 5 KV-300 Hardware
1-182
5.3.6

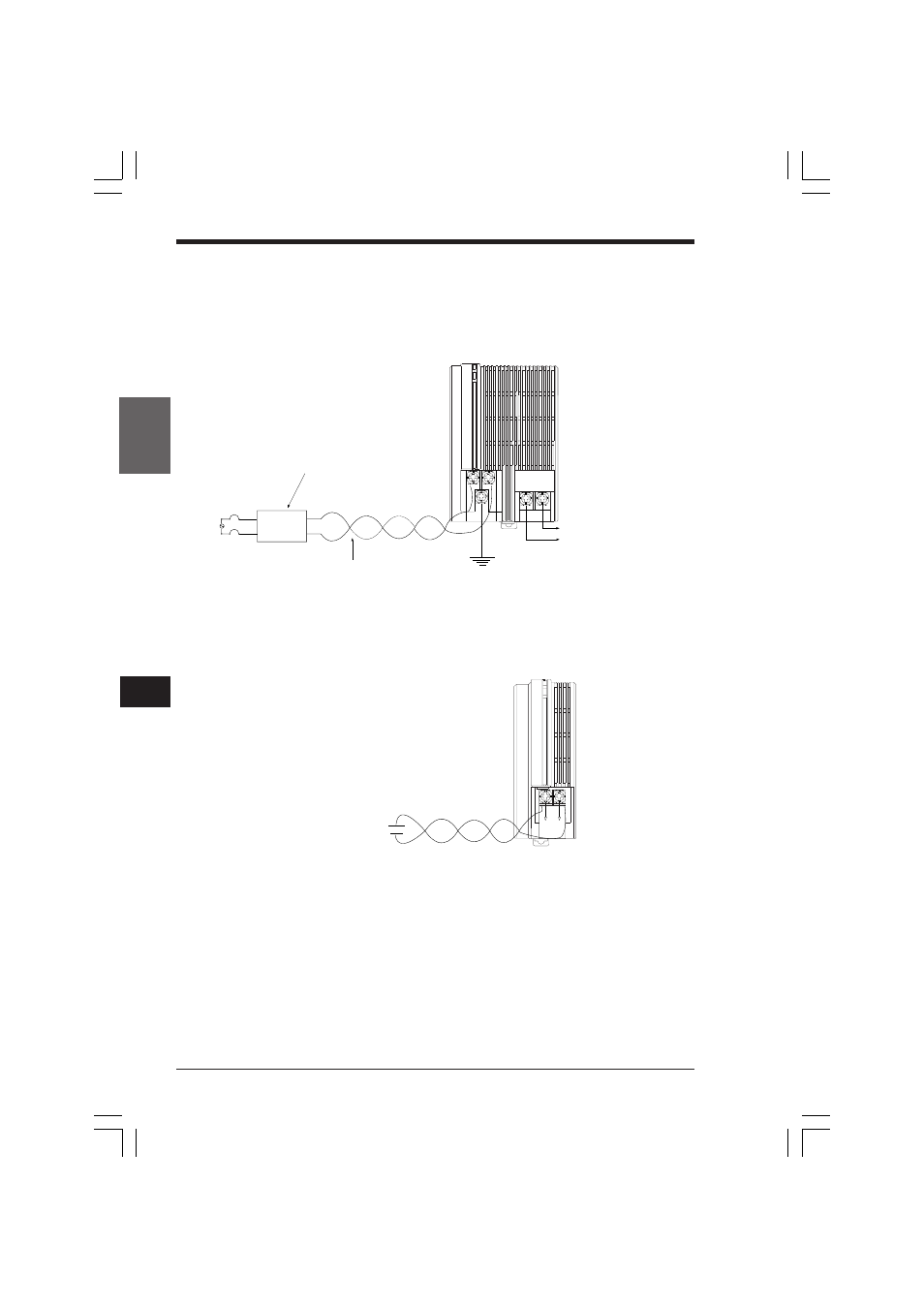

Connecting the AC Power Supply Module and DC
Power Distribution Module
KV-U4 AC Power Supply Module
KV-U5 DC Power Distribution Module
Use an external power supply with adequate output capacity. (1.5 times or more).
KV-U4
Using a 1:1 insulation transformer or
noise filter, line noise from the power
supply line can be reduced.
100 to
240 VAC
±10%
Twisting the cables reduces
inductive influence.
Frame Ground
24 VDC service power supply
(Power supply to external unit)
KV-U5
+
24 VDC external
power supply
KVHKA Chap 05.p65
08.3.11, 11:14 AM
182
