Chapter 4 KV-D20 Operator Interface Panel 1-134
4
Visual KV
Series
4.2 Overview and Operation

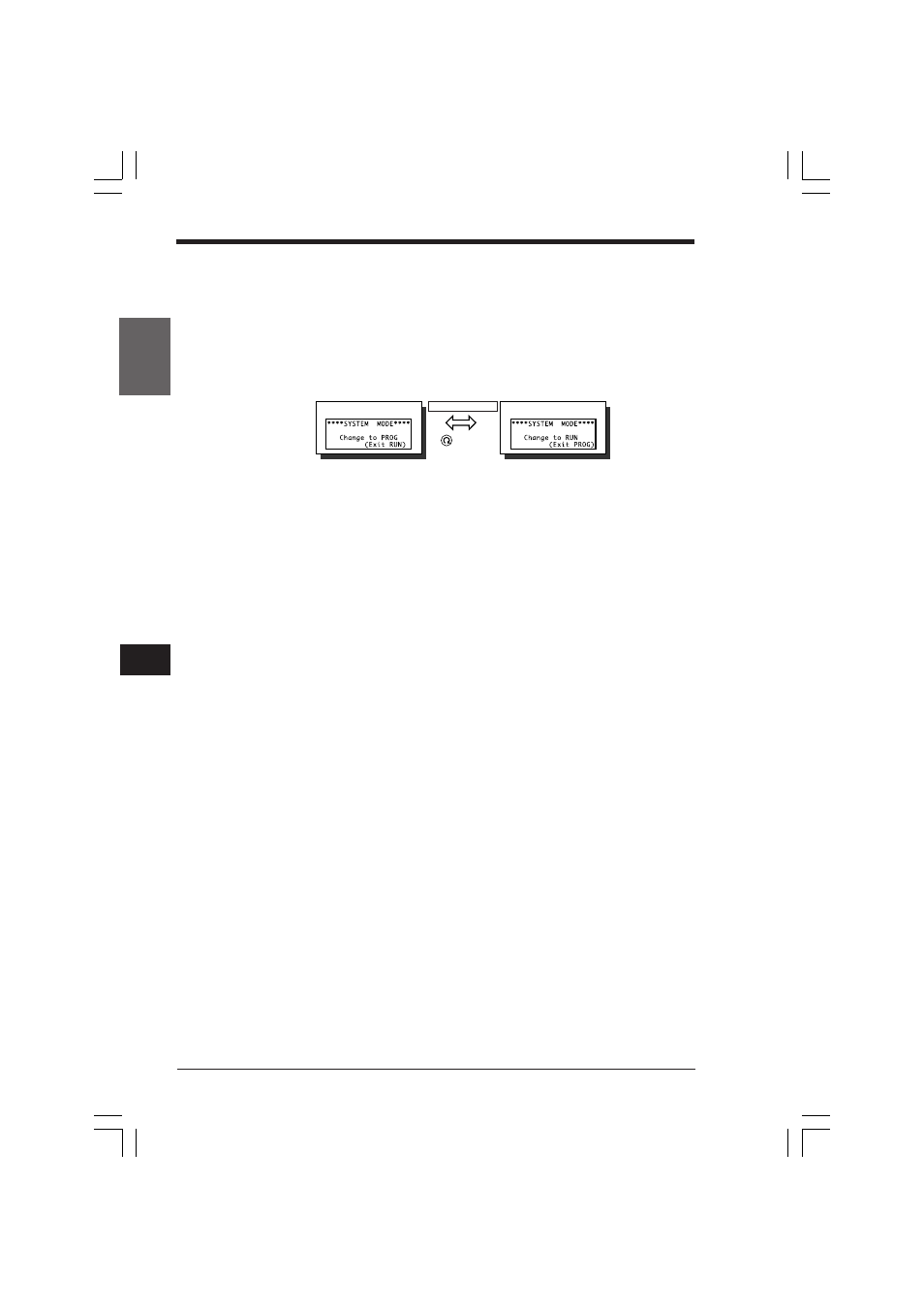

RUN mode
Confirm the change
PROG mode
x 1.5 sec.
4.2.6 System Mode
This section includes an overview and description of operation of the system mode.
System mode
This mode corresponds to the system mode of the Access Window of the KV unit.
The system mode allows you to change the KV unit between RUN and PROGRAM
modes with the KV-D20.
• To change from the operator mode to the system mode, special utility relay 2509
must be turned on. (The initial setting disables the change.)
• When changing the current mode (screen) is disabled during operation, the
setting becomes effective after the current mode (screen) is changed to another
mode (screen). To activate the setting immediately, turn on special utility relay
2513. The mode is switched to the operator mode.
➮ Refer to "Screen change function" on page 1-114.
• The current status of the KV unit is displayed on the fourth line.
