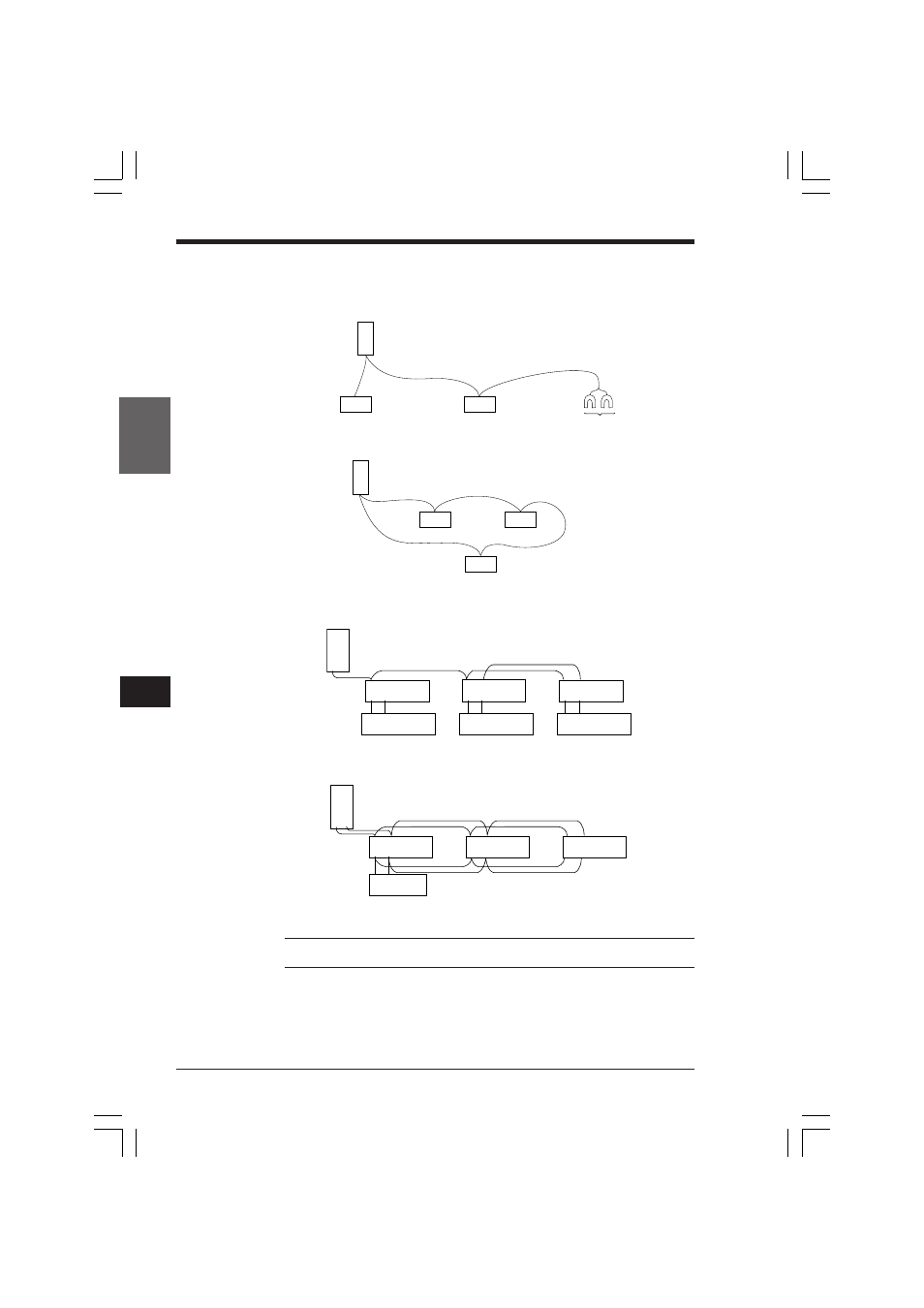

Incorrect wiring patterns
a) Do not mix different types of cabling when connecting modules.
Do not leave any terminals unconnected as shown below.
b) Do not create loops.
Power distribution
a) Distributing power to each module from individual power supplies (A common
power supply is not required.)
b) Distributing power to all modules from one power supply
Note: The long communication cable used in the above power distribution pattern is
subject to voltage drop. In such a case, use a cable of sufficient thickness.
KV
-R1A
R16/R8 R16/R8
Unconnected terminals
KV-R1A
+ –
R16/R8
+ –
+ S – S
R16/R8
+ –
+ S – S
R16/R8
+ –
S S + –
Communication cable
Communication cable
DC power supply DC power supply DC power supply
KV
-R1A
+ –
R16/R8
+ –
+ S – S
R16/R8
+ –
+ S – S
R16/R8
+ –
+ S – S
Communication cable Communication cable
DC power
supply
KV
-R1A
R16/R8 R16/R8
R16/R8
