5.3 Module/Unit Connections

KV

-300

KV-10/80

1

5

Chapter 5 KV-300 Hardware

1-181

5.3.5

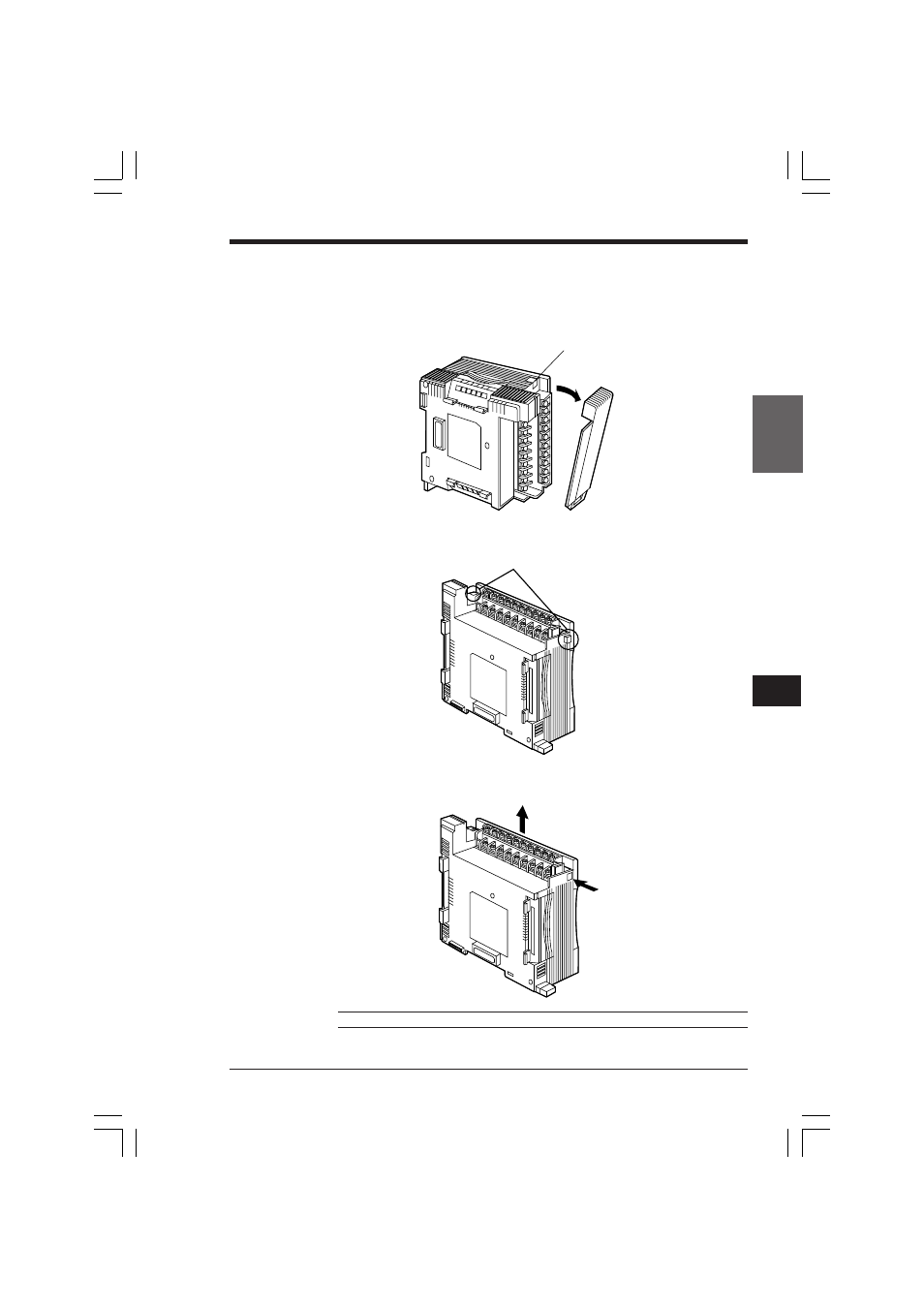

Removing the Terminal Block

To remove the terminal block cover of the KV-B16R/KV-B16S and KV-AN6, follow
the procedure below.

1. First, turn the power OFF. Pull open the terminal block cover from the top.

2. The terminal block is secured with a lock bar as shown below.

3. Remove the terminal block by pushing the terminal block lock bar to release the

terminal block.

Note: Only the KV-B16R/KV-B16S and KV-AN6 have a removable terminal block.

Terminal lock bar

Open

Terminal lock bar

Remove terminal block

Push
