4.3 Examples of Ladder Programs
Example of 24-bit high-speed counter
Operate the KV-D20 to use the 24-bit high-speed counter function of the KV basic
unit. Set the high-speed counter comparator 0 (CTC0) and 1 (CTC1) in the numeric
value change mode of the operator screen.
➮ Refer to "Changing numeric values individually" on page 1-141.
The customized switches are assigned to the following functions:
F1: Turns on/off the high-speed counter operation.
F2: Not used
F3: Resets the high-speed counter.
F4: Not used
The customized lamps are assigned to the following functions:
LED1: Illuminates during high-speed counter operation.
LED2: Illuminates when high-speed counter comparator 0 is ON.
LED3: Illuminates when high-speed counter comparator 1 is ON.
LED4: Not used
➮ Refer to the "4.4.1 24-bit High-speed Counters" on page 3-221 for details.

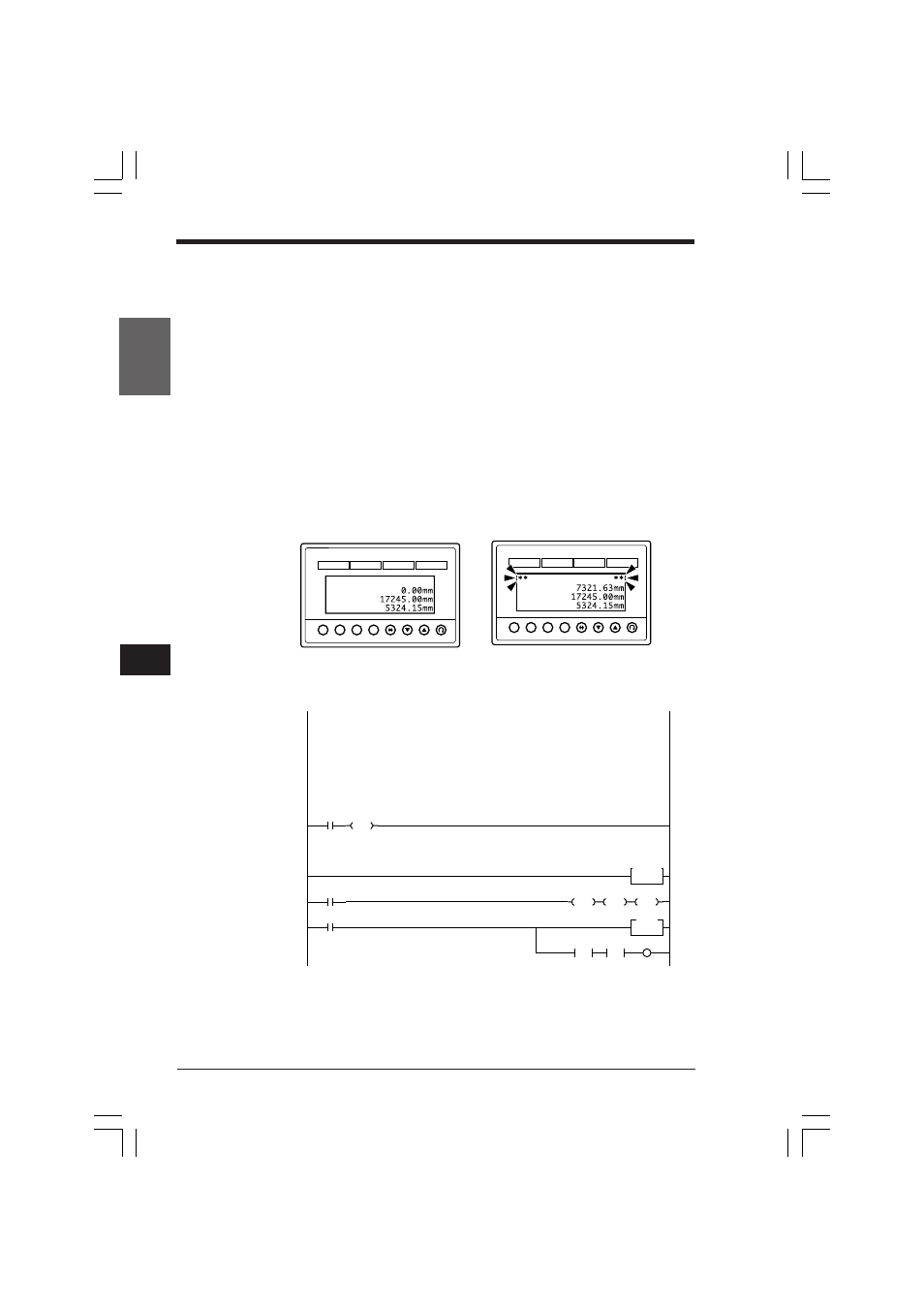

Operator screen
Ladder program
F1 F2 F3 F4
1 2 3 4
F1 F2 F3 F4
1 2 3 4
When the high-speed counter is in operation
HIGH-SPEED COUNTER:ON
CURRENT:
PRESET0:
PRESET1: CURRENT:
PRESET0:
PRESET1:
When the high-speed counter is stopped
