8.3.5 Setting I/O Ranges
This section describes how to set the KV-AN6 I/O ranges.

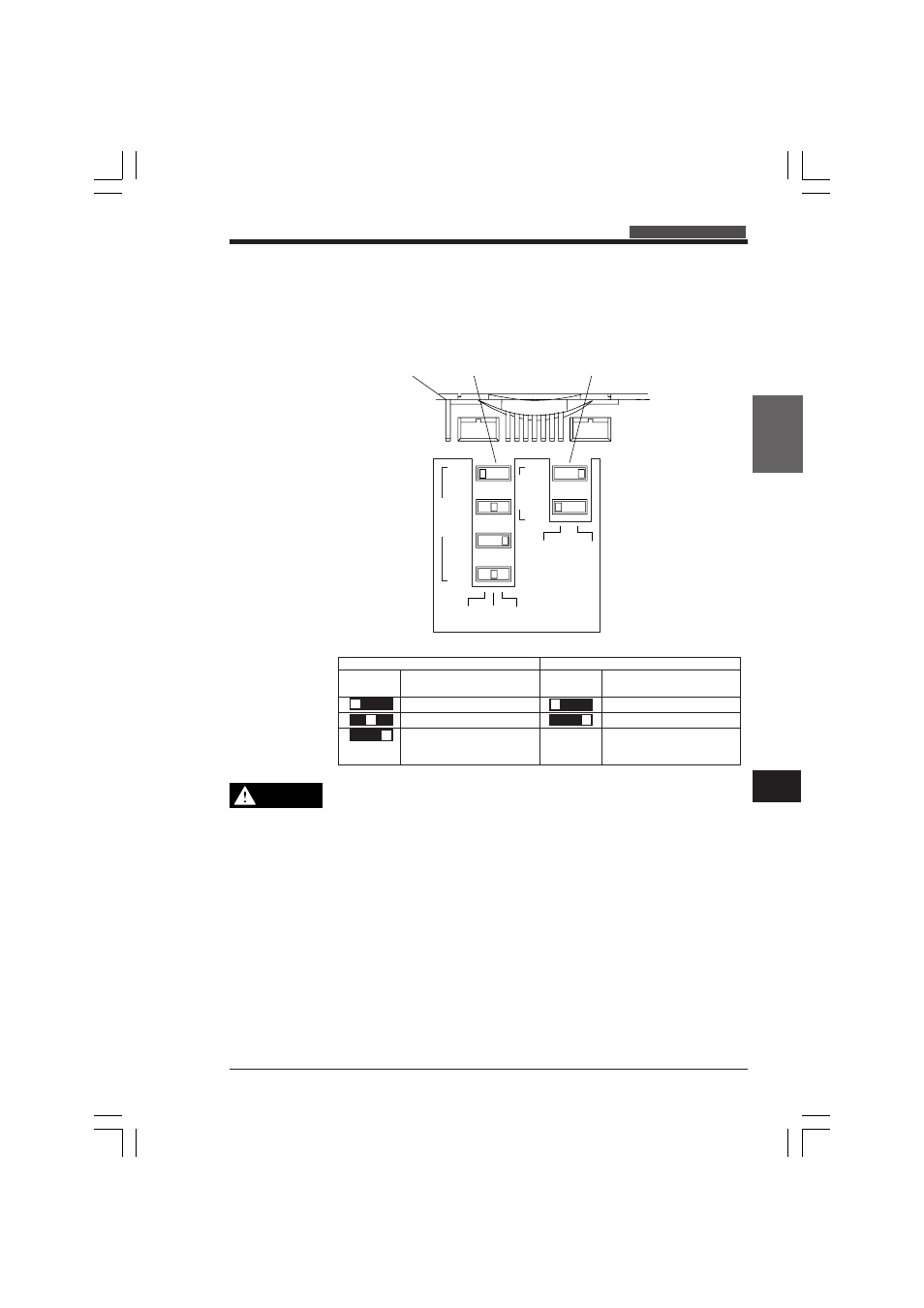

As shown in the following figure, the analog input (A/D) range and analog output (D/
A) range can be selected with the slide switches on the right side of the KV-AN6
module.
•
The I/O ranges are factory-set to ±5 V.
Analog input (A/D) range Analog output (D/A) range
Selection Setting Selection Setting
switch switch
Voltage input: -5 to +5 V Voltage output: -5 to +5 V
Voltage input: -10 to +10 V Voltage output: -10 to +10 V
Current input: 0 to 20 mA Connecting Current output: 4 to 20 mA
terminal for
current output
CAUTION
±10V 0 to 20 mA ±5V
±5V ±10V
Analog output range (D/A)
selection switch Analog input range (A/D)
selection switch KV-AN6
module
CH0
CH1
CH4
CH5
CH2
CH3
A
/
D
D
/
A
Turn OFF the power switch before changing selection switch settings.
Analog input signals must fall within the range set by the selection switch.
