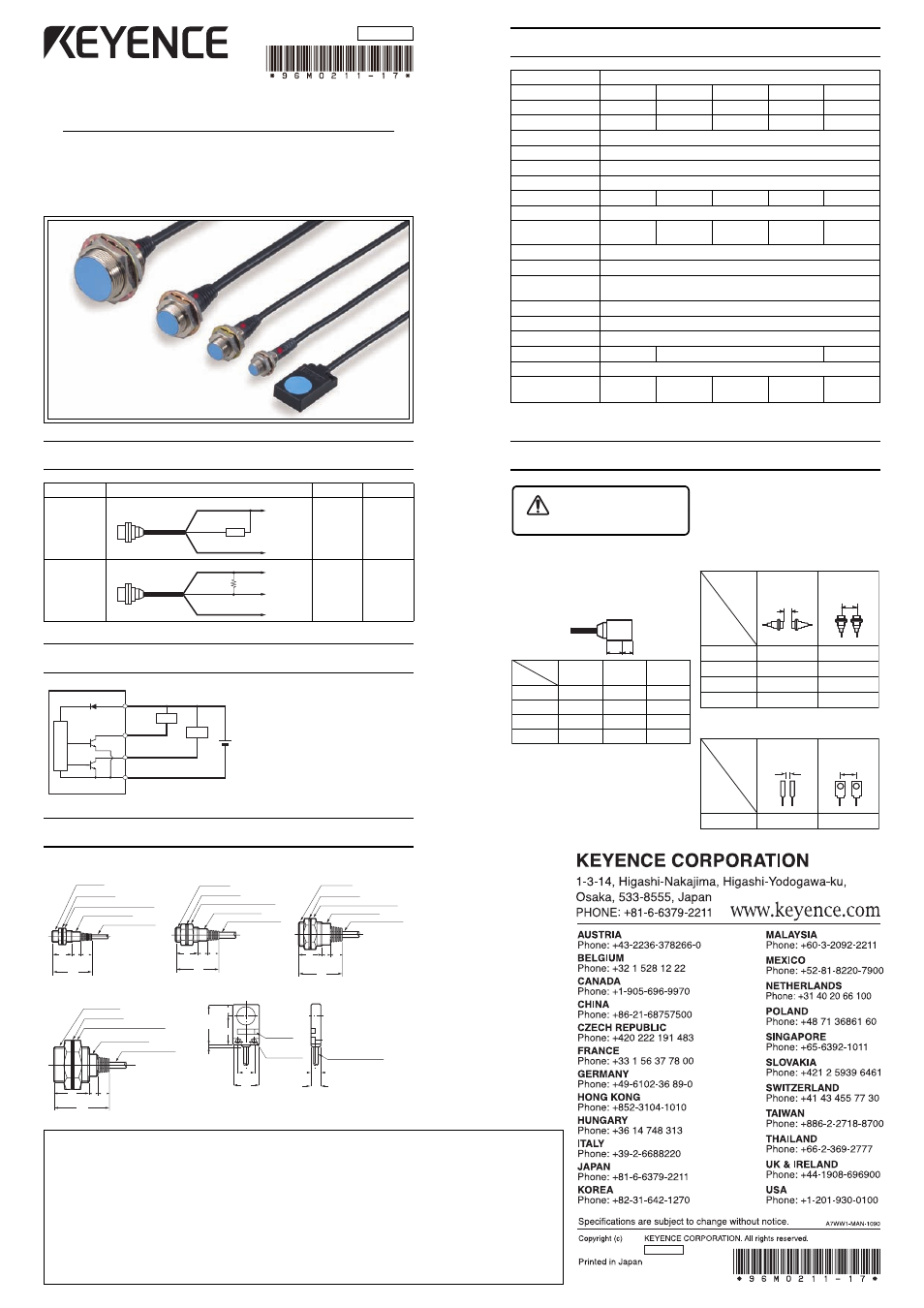

KEYENCE EZ Series - Manual

PROXIMITY SENSORS
EZ Series
INSTRUCTION MANUAL
Connections Diagram
Output circuits
Dimensions
Specifications
* If ripple takes place, use the sensor within a voltage range of DC 12 to 24V.
** The weights of the cord and nut are included.
Hints on Correct Use
Color of output lines Black (output1) White (output2)
To drive
current load
N.O. N.C.
To drive
voltage load Low level
(at detection)
High level
(at detection)
96M0211
Brown
DC12 to 24V
0V Blue
Black or White
Load
Brown
4.7k Ω
DC12 to 24V
Voltage output
0V Blue
Black or White
Load
Brown
Black
White
Blue
(Output 2)
(Output 1)
Load
12 to
24 VDC
Main circuit
φ4, 4-core x 0.15 mm 2
Cable length: 2 m
Toothed washer
Across-flats: 12 t= 3
M8, P=1
17 7 12
36
Operation indicator
0.67" 0.26"0.47"
1.42"
φ0.17"
6.6'
0.47" t= 0.12"
φ4, 4-core x 0.15 mm 2
Cable length: 2 m
Toothed washer
Across-flats:17 t=4
M12, P=1
20 7 12
39
Operation indicator
0.26" 0.79" 0.47"
1.54"
φ0.17"
6.6'
0.67" t=0.16"
φ6, 4-core x 0.3 mm 2
Cable length: 2 m
Toothed washer
Across-flats: 24 t=4
M18, P=1
20 7 14
41
Operation indicator
0.26"0.55" 0.79"
1.61"
φ0.25"
6.6'
0.94" t= 0.16"
32
20
1.5
20
9
8
13 5
φ4, 4-core x 0.15 mm 2
Cable length: 2 m
2- φ3.3
mounting hole
Operation
indicator
1.26"
0.35"
0.79"
0.06"
0.51"
φ0.13"
0.79"
0.20"
0.31"
φ0.17"
6.6'
EZ-8M EZ-12M
φ6, 4-core x 0.3 mm 2
Cable length: 2 m
Toothed washer
Across-flats: 36 t= 5
M30, P=1.5
30 7 14
51
Operation indicator
0.26" 1.18" 0.55"
2.01"
φ0.25"
6.6'
1.42" t= 0.20"
EZ-18M
EZ-30M EZ-18T
Type Shield type
Model EZ-8M EZ-12M EZ-18M EZ-30M EZ-18T
Appearance M8 M12 M18 M30 20Ч32Ч8mm
Detecting distance 1.5mm±10% 2.5mm±10% 5.0mm±10% 10.0mm±10% 5.0mm±10%
Supply voltage*
DC 12 to 24V±10%, Ripple (p-p): 10% max.
Current consumption 13mA max.
Control output NPN open-collector 100mA max. (40V max.) Residual voltage: 1V max.
Output mode N.O./N.C.
Response frequency 800Hz 600Hz 350Hz 250Hz 350Hz
Target All metals (See Characteristics for nonferrous materials.)
Standard target
(iron, t=1mm)
10×10mm 12×12mm 18×18mm 30×30mm 18×18mm
Hysteresis 10% max. of detecting distance
Temperature fluctuation ±10% max. of detecting distance at 23°C (73.4°F), within 25° to 80°C (–13 to 176°F)
Ambient
temperature
–25 to +80°C (–13 to 176°F), No freezing
Ralative humidity 35 to 95%, No condensation
Degree of protection IEC IP67, NEMA type 6 (waterproof)
Vibration 10 to 55 Hz 1.5mm double amplitude (in X, Y, and Z directions, respectively for 2 hours)
Housing material SUS303 Nickel-plated brass Aluminum die-cast
Cord length 2 m
Weight
(g approx.)**
50 65 130 235 55
„ Clamping torque
• Be sure to use the supplied toothed lock
washer when mounting the sensor.
• Do not tighten the sensor’s mounting
screw with a clamping torque higher than
the following values.
„ Wiring
• Separate the wirings of the sensor cable
from power lines and high-tension lines;
Otherwise, the sensor may be caused to
malfunction by noise.
• To extend the wiring, use a cable whose
diameter is almost the same as that of
the sensor cord.
„ Mutual interference
To install plural proximity sensors of the
same model face to face or side by side,
provide the minimum distance indicated in
this table between the sensors.
Screw-mounted type
Flat type
Do not use this product for
the purpose of protecting the
human body.
Warning
A B
EZ-8M
Torque
Model
Dimension A
(mm)
At A
(Nm)
At B
(Nm)
EZ-12M
EZ-30M
EZ-18M
3.0
6.0
10.0
6.0
3
6
50
15
5
10
100
20
EZ-8M
Distance
Model
EZ-12M
EZ-30M
EZ-18M
20
30
100
40
23
32
100
48
Face-to-face
installation (mm)
Side-by side
installation (mm)
EZ-18T
Distance
Model
40 35
Face-to-face
installation (mm)
Side-by side
installation (mm)
0211E 1021-17 96M0211
2008
