Configuring the Kinetix 3 Drive Chapter 5
Channel Setup Window

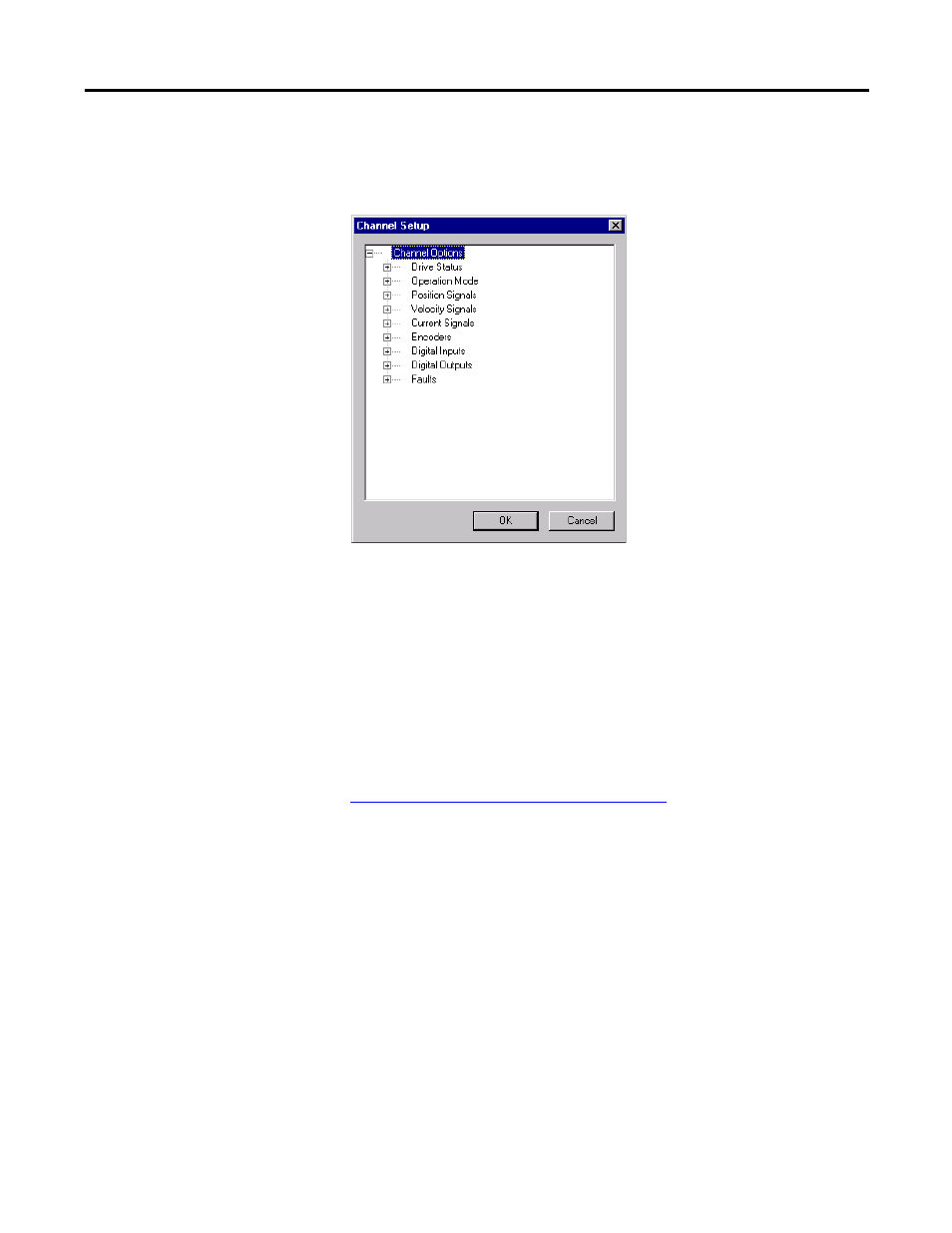

The collapsed Properties window for the Channel Setup looks like this.
Use this window to:
•
assign a specific Input Signal to the selected Channel in the Oscilloscope
window for a Kinetix 3 drive.
•
assign no Input Signal to the selected channel in the Oscilloscope window
for a Kinetix 3 drive.
Much like the Monitor window, this window lets you customize the display for
the selected online Kinetix 3 drive. The window displays a tree diagram with all
the status settings that can be monitored for the selected drive.
Refer to Understanding Kinetix 3 Status Displays
on page 282 for a detailed list
of drive status selections.
To assign a specific input signal or status to the specified channel, perform these
steps.
1. Click one or more + (plus) signs to open the tree control to the desired
branch.
2. Place a check mark in the box next to the desired input signal or status.
3. Click OK.
The selected input signal appears in the selected Channel in the
Oscilloscope window.
To assign no input signal or a status to the selected channel, perform these steps.
1. Be sure no check marks appear next to any input signal, or status.
