Understanding the service information window – Rockwell Automation 2098-UWCPRG Ultraware Software User Manual User Manual
Page 133

Rockwell Automation Publication 2098-UM001G-EN-P - February 2011
135
Configuring the Ultra3000 Drive Chapter 3
Understanding the Service
Information Window

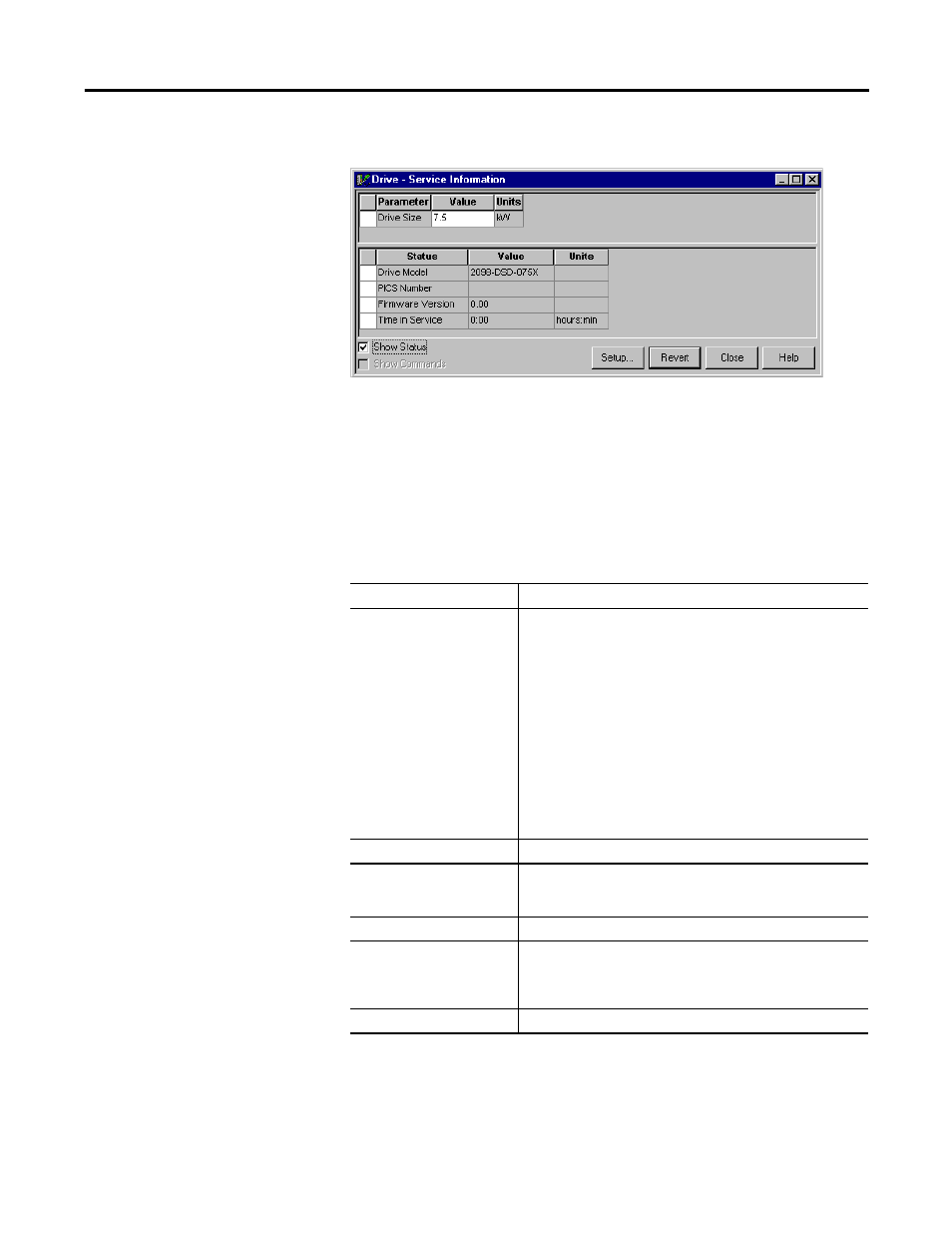

The Service Information window looks like this.
Use the Service Information window to:
•
Modify the size of an offline drive file before transferring the configuration
to an online drive.
•
Display and monitor service information about the drive.
•
Display the firmware revision of the drive.
The following parameters and status apply to the Service Information window:
Parameter
Description
Drive Size:
Change the power rating in kW of an offline drive.
Invalid no drive selected
0.5 500W 230V 2098-DSD-005-x
1 1kW 230V 2098-DSD-010-x
2 2kW 230V 2098-DSD-020-x
3 3kW 230V 2098-DSD-030-x
7.5 7.5kW 230V 2098-DSD-075-x
15 15kW 230V 2098-DSD-150-x
3(HV) 3kW 460V 2098-DSD-HV030-x
5(HV) 5kW 460V 2098-DSD-HV050-x
10(HV) 10kW 460V 2098-DSD-HV100-x
15(HV) 15kW 460V 2098-DSD-HV150-x
22(HV) 22kW 460V 2098-DSD-HV220-x
Status
Description
Drive Model
The model number of the drive. This is the number you selected
from the Select New Drive dialog box after executing the Insert
Ultra3000 command.
PICS Number
A unique identifier assigned to each drive.
Firmware Version
The revision of the selected On-Line drive’s firmware in the format
XX.YY, where:
• XX = major revision
• YY = minor revision
Time In Service
Total time (hours and minutes) the drive has been powered-up.
